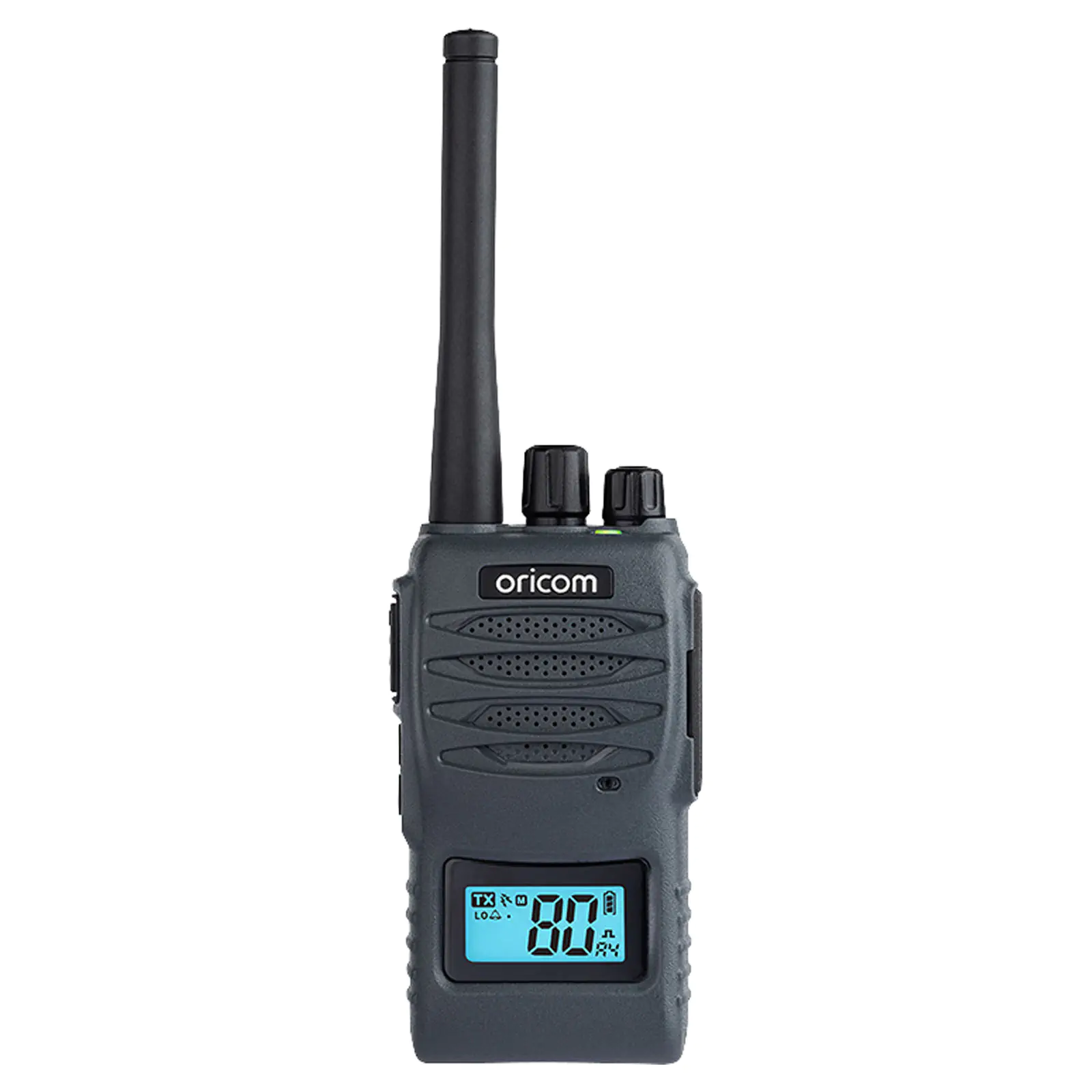

UHF5400 80Ch 5W Handheld UHF CB Transceiver

by: Oricom
SKU: X0576
Robust, powerful, benefit rich and priced for everyday use with quality features designed to optimise performance under all conditions.
Save $18.18 $190.00 $208.18

All Prices Shown are (ex GST)
Bulk Pricing
ea
$190.00 $208.18
i h

Overview

The Oricom UHF5400 CB transceiver is robust, powerful, benefit rich and priced for everyday use with quality features designed to optimise performance under all conditions, this radio is backed by Oricom’s 3 year Warranty.

The UHF5400 transceiver also includes a unique socket to ensure that accessories are firmly secured at all times for interruption free communication.

Package Includes:
1 x UHF CB Radio
1 x Antenna
1 x AC Adaptor
1 x 12V Adaptor
1 x Rechargeable Li-Ion battery



Features:

  • 5/1-watt RF power
  • Heavy duty die cast metal chassis
  • 80 Narrowband channels*
  • 38 CTCSS & 104 DCS Privacy codes
  • Duplex
  • Rugged construction
  • Channel scan (instant/memory/priority)
  • Backlit LCD display
  • Rotary volume control
  • Signal monitoring
  • Keypad lock
  • Calling tone
  • Power save mode
  • Removable flexible antenna
  • 2.5mm jack for optional headset or speaker mic





Specifications:



Technical Specifications:

Compliance: AS/NZS 4365:2011 and NZS2772.1

Frequency Range TX/RX: 476.425 - 477.4125MHz

Number of Channels: 80

Channel Spacing TX/RX: 12.5K

Channel Spacing RX: 12.5K

Operating Modes: Simplex/duplex

Scanning Speed: 125MSC/channel

Antenna Impedance: 50Ω

Battery Capacity: 1200mAh -9 hrs on high TX power 13hrs on Low TX power (by 5-5-90 work cycle)

Frequency Stability: 2.5ppm



Transmitter:

RF Output Power: 5W/1W

Modulation: FM

Maximum Deviation: 2.5KHz

Spurious Emissions: Less than 36 dBm

TX Frequency Response: + 1 to -6dB/0.3-3KHz

Audio Signal to Noise Ratio: More than 36dB



Receiver:

Circuit Type: Direct conversion by single DSP chip

Intermediate Frequencies: 135KHz

Sensitivity: Less than -122dBm at 12dB SINAD

Selectivity: More than 60dB

Intermodulation Immunity: More than 60dB

Spurious Response Immunity: More than 60dB

Audio Signal to Noise Ratio: More than 40dB

Receive Frequency Response: + 1 to -6dB/0.3-3KHz

Conducted Spurious Emissions: Less than -57dBm
