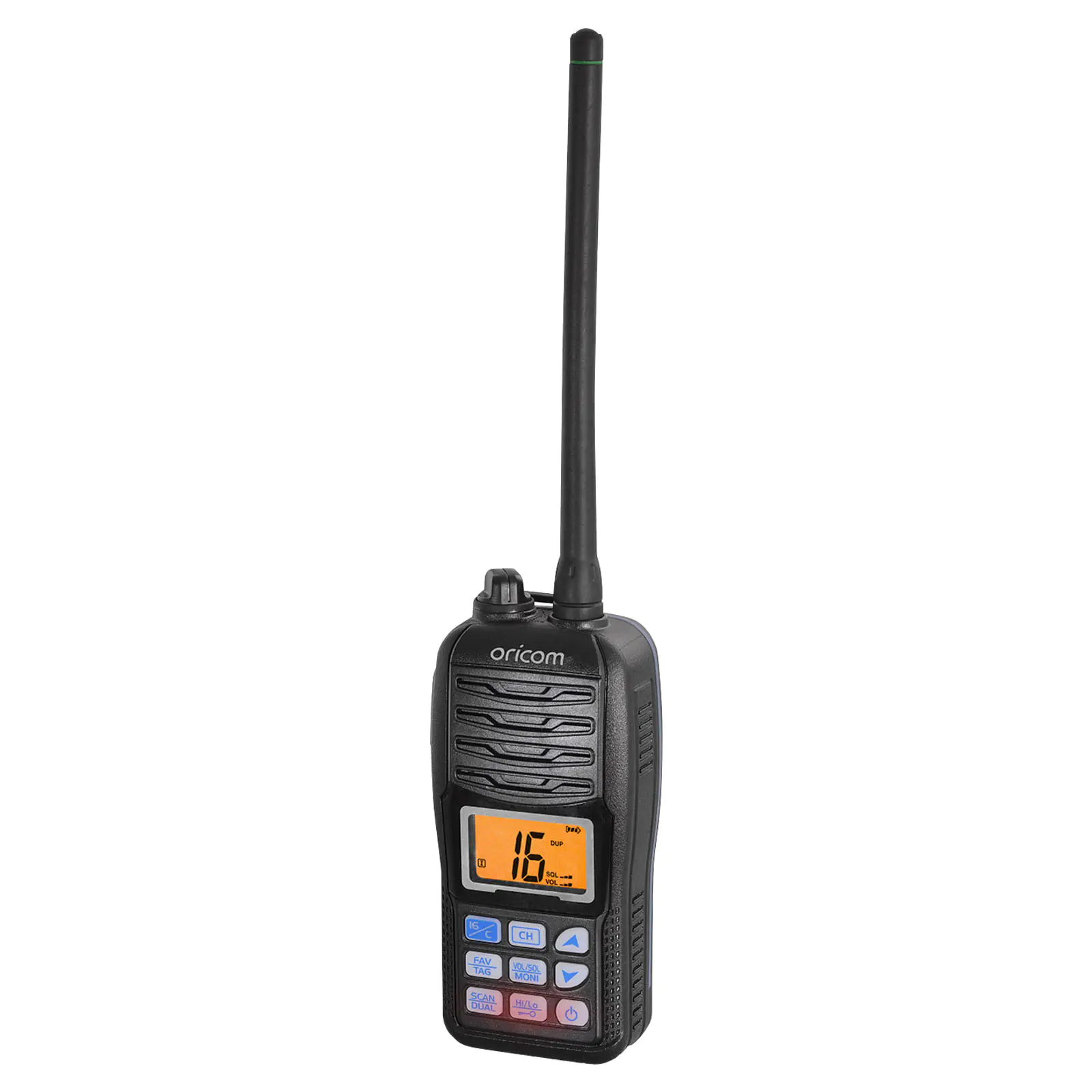

MX500 5W High Power VHF IP67 Marine Transceiver

by: Oricom
SKU: X0660
An essential part of your safety kit the MX500 is a high performance radio, built tough to withstand the harshest marine environments. It is waterproof to IP67 if dropped overboard. It will not only float, but the radio will flash ensuring easy retrieval.
Save $35.45 $163.64 $199.09

All Prices Shown are (ex GST)
Bulk Pricing
ea
$163.64 $199.09
i h

Overview

An essential part of your safety kit the MX500 is a high performance radio, built tough to withstand the harshest marine environments. With its rating of IP67, not only is the radio waterproof but it will also float if dropped overboard. If this happens the radio will flash ensuring easy retrieval.

Please Note: The included AC adaptor is not waterproof

In The Box:
• VHF marine radio
• AC adaptor
• Rechargable li-ion battery
• Belt clip
• Flexible antenna
• Wrist strap



Features:

  • IP67 waterproof (1 meter depth for 30 minutes)
  • Float and flash
  • Vibration water draining function
  • Dual/tri-watch
  • 5/1 watt switchable
  • Large backlit display
  • Programmable and priority scan
  • Keypad lock
  • Battery indicator
  • Operating time up to 8hrs





Specifications:



General:

Frequency range: TX: 156.000-161.450MHz, RX: 156.000-163.425MHz

Type of emissions: 16K0G3E (FM)

Power supply voltage: 3.7V DC nominal

Battery pack: 1500mAh Li-ion (DC 3.7V) Operating time up to 8hrs. Duty cycle; 5% transmit, 5% receive & 90% standby

Frequency stability: ±10 PPM

Operating temperature range: -15°C to 55 °C

Antenna impedance: 50Ω

Dimensions (without antenna): 65W × 140H × 41Dmm

Weight: 247g (With Belt Clip and Antenna)



Transmitter:

Output power: 5W/1W switchable power

Max. frequency deviation: ±5.0kHz

Adjacent channel power: =70dB

Residual modulation: =40dB



Receiver:

Sensitivity: =0.22µV

Squelch sensitivity: =0.22µV

Adjacent channel selectivity: =70dB

Spurious response: =70dB

Intermodulation: =68dB

Audio output power: =0.6W (at 10% distortion)

Hum and noise: =40dB

Details

Products specifications

Warranty 2 Years

Warranty

WARRANTY

We offer 2 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
