This 80Ch 5W UHF CB Transceiver is long talk range analog radio. Its robust body and rich features both serve to make it an ideal choice for security workers, construction sites and many more fields of work.

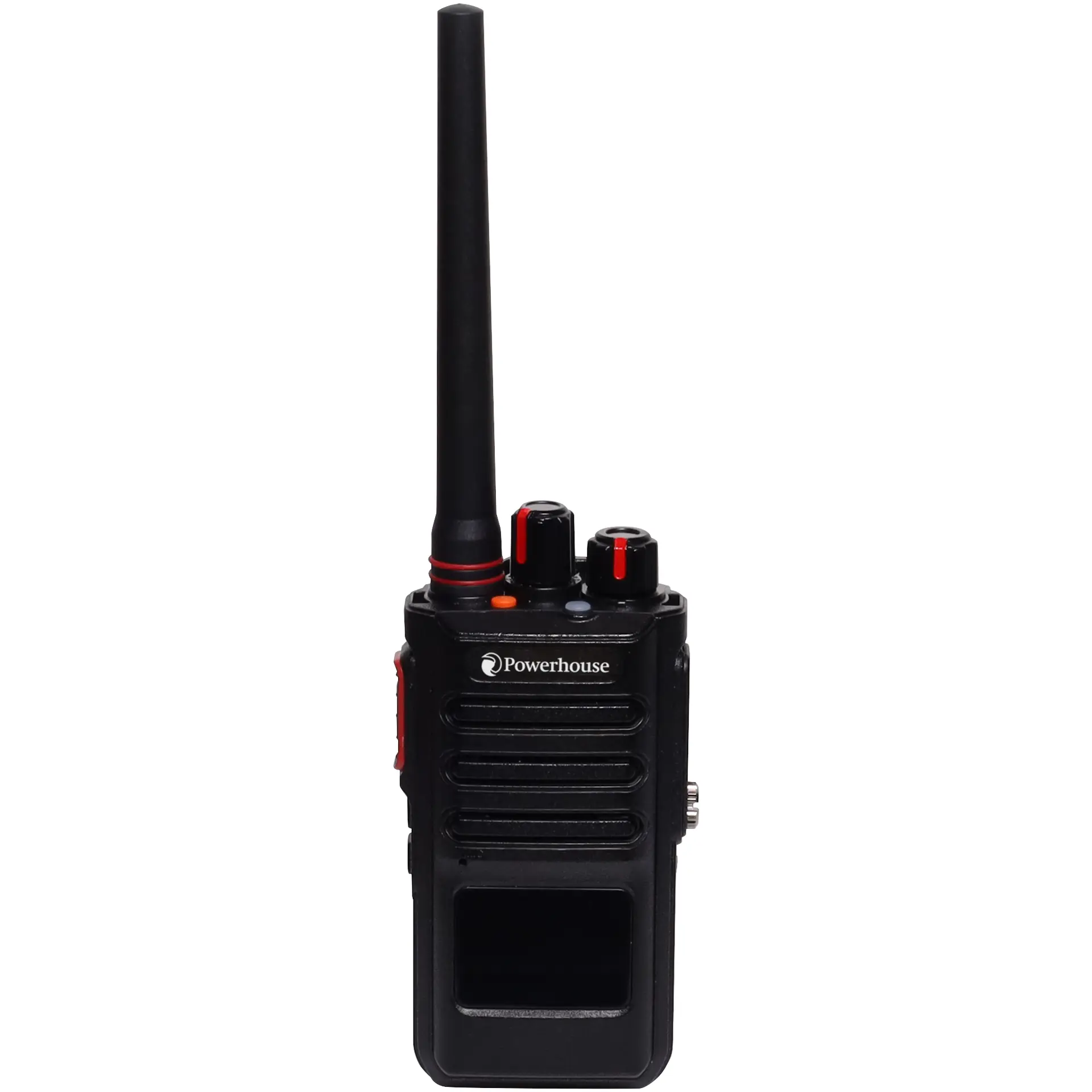

80Ch 5W UHF CB Transceiver With Charging Dock

Name: 80Ch 5W UHF CB Transceiver With Charging Dock
SKU: X0664
Price: 180.91 AUD
Availability: InStock

by: Powerhouse

SKU: X0664

This 80Ch 5W UHF CB Transceiver is long talk range analog radio. Its robust body and rich features both serve to make it an ideal choice for security workers, construction sites and many more fields of work.

$180.91

All Prices Shown are (ex GST)

Bulk Pricing

ea	$180.91
2+	$162.73
4+	$144.55

i h

Overview
Details
Warranty

Overview

This 80 Channel 5W UHF CB Transceiver is ideal for demanding environments like construction sites, security operations and farming. With support for up to 199 channels, plus features like individual, group, and all-call functions, this radio keeps communication clear and reliable over long distances. Hands-free VOX operation, built-in emergency alerts, and voice recording. Rated IP67 waterproof and dustproof, it’s tough enough for construction, security, and outdoor work/adventures. Package includes charging dock and power supply however we also recommend M8617 & M8618 for car charging - see accessories below.

In The Box:
• UHF Transceiver
• Power supply
• Li-ion battery
• Charging Dock
• Antenna
• Wrist strap
• Belt clip
• User manual

Features:

Frequency 400-480MHZ
Hidden display 199 channels
Output power 5W/1W
CTCSS/DCS decode & encode, support non-standard CTCSS/DCS
Individual call, group call, all call
PTT ID, ANI
2 Tone & 5 tone
Scrambler
Compander
VOX function
Record function
Emergency Alarm
Busy Channel Lock
Transmitter Time-out Timer (TOT)
Side Key Assignment
0-9 Grades Squelch Level Setting
Waterproof IP67
Vibration (optional）
Noise cancelling (optional)

Specifications:

General:

Brand Model: Yanton T-800D (AS/NZS 4365 compliant handset)

Frequency Range: TX/RX 476.6250 - 477.4125MHz;

Channels available: 80

Antenna Gain: 1.5dBi

Antenna Designation: Detachable

Antenna Impedance: 50Ω

Operating Mode: Simplex or Duplex frequency selections

Memory Channels: 199 programmable

Battery Li-Ion voltage / capacity: DC 7.4V 2000mAh

Dimensions: 116 x 61 x 38mm

Adapter Information: 100 - 240V~ 50/60Hz 0.3A; Output 12V d.c. 0.5A

Charger Caddy: Input 12V d.c. 0.5A; Output: 8.4V d.c. 0.3A

Transmitter:

RF power: 5W = High; 2W = Low (Selectable from menu)

Modulate Mode: F3E

Channel Separation: 12.5 KHz Narrow

Operation Mode: Push to Talk (PTT)

CTCSS/DCS: Decode & Encode (disabled Ch 5 & 35)

LED: Indicates signal busy (red & blue)

Menu: Accessible from handset and displayed on front LCD panel -

• Scrambler

• Compander

• VOX function

• Voice audio menu - language selectable

• Record function

• Tone Calling option

• Emergency Alarm

• Busy Channel Lock

• Roger Beep option

• Transmitter Time-out Timer (TOT) [3min]

• Side Key Assignment (i.e. activate Duplex mode)

• 0-9 Grades Squelch Level setting

Receiver:

RX: 476.4250 - 476.6000MHz

Sensitivity: ＜0.20uV (12dB SINAD)

Squelch Sensitivity: ＜0.20uV

Intermodulation interference: 50db

Audio Power output: 500mW

Receiving Current: ≤100mh

Squelch Standby: 20ma

Details

Products specifications

Warranty	3 Years
