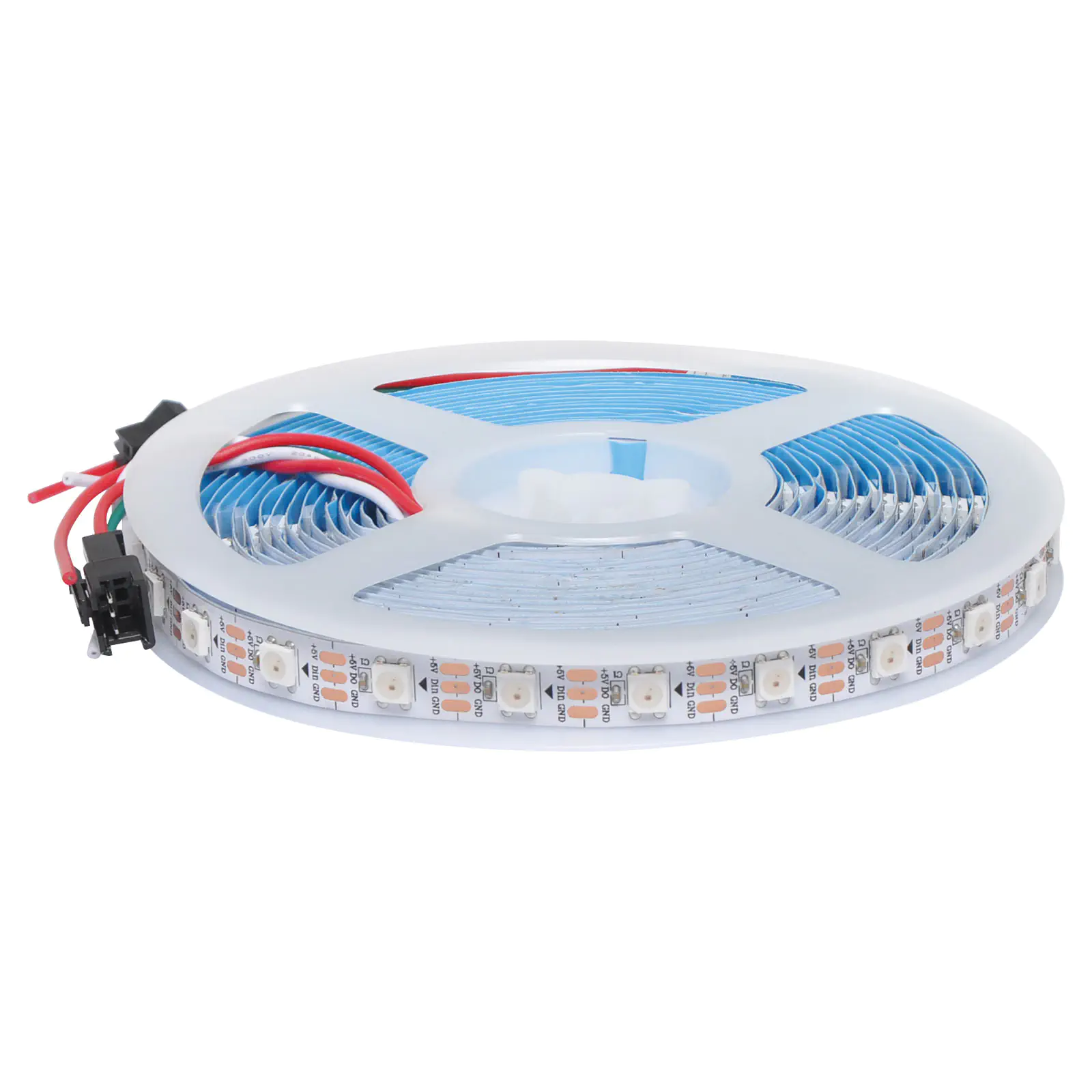

5050 Addressable RGB Magic LED Strip Light 5m

by: Genlamp
SKU: X3223A
5m reel of addressable RGB 5050 LED strip - this means you can program the colour of every individual LED using an Arduino/Raspberry Pi.
$104.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $104.55
3+ $94.09
5+ $83.64
i h

Overview

This decorative WS2812B RGB LED strip features on-board chips to control the colour of each individual LED using open source platforms such as Arduino and Raspberry Pi. This allows for it to be controlled individually, which makes it ideal for programming and producing dynamic and creative effects. 60 LEDs per metre. 5V DC input. Indoor use only (not weatherproof).

Power Supply Requirements
LED strips can require quite powerful power supplies. This strip lighting utilises RGB LEDs which can have varying current requirements depending on the brightness and colour the LED is displaying. Whilst the specification listed is an absolute maximum, we recommend 6 to 8A power supply for a full 5m reel. Sold per 5m roll.







Specifications:



Chip: WS2812B

Voltage: DC 5V

Typical Current Draw: 1.6-2.2A per metre (will vary with brightness/color).

IC Type: Internal sealing type

Maximum working current: 0.06A per LED

LED Chip: SMD5050 RGB

Width:10mm

Package: 5m/Roll

Connector: 3pin connector

LED Quantity: 60 LEDs/M



Features:

  • WS2812B on board controller chip
  • Controllable with Arduino or Raspberry Pi
  • 60 LEDs per metre
  • Ideal for creative lighting effects, Christmas lighting etc.
  • 10mm profile width, works with aluminium profiles (such as X3249/52)

Details

Products specifications

Warranty 12 Months
LED Lighting
Chip Size 5050
Colour RGB
Type Indoor

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
