NEW

OBDII Scanner Diagnostic Tool

by: Micron
SKU: X6017
This OBDII code reader is used to check engines of all vehicles that comply with OBD II, 12V voltage with standardized 16-Pin connector. This OBDII scanner tool provides a complete solution for reading vehicle data on OBDII equipped vehicles.
$90.86

All Prices Shown are (ex GST)
Bulk Pricing
ea $90.86
2+ $81.77
4+ $72.68
i h

Overview

This OBDII code reader is used to check engines of all vehicles that comply with OBD II, 12V voltage with standardized 16-Pin connector. This OBDII scanner tool provides a complete solution for reading vehicle data on OBDII equipped vehicles. It detects general and vehicle specific codes and provides in depth diagnostics for system parameters. It can also provide testing of the vehicle battery charging system and cranking battery test.





Specifications:



Support data stream type: 249

Fault code analysis number: 16929

Operating voltage: 8V to 25V

Operating current: 52mA (Max)

Operating temperature: -20°C to 70°C

Storage Temperature: -30°C to 80°C

Display: 2.4” TFT Colour Screen

Dimensions: (L)132 x (W)85 x (H)22mm



Supports OBDII protocols:

1. SAE J1850 VPW

2. ISO 9141-2

3. ISO 14230-4 (KWP 5BAUD)

4. ISO 15765-4 (CAN 11/500)

5. ISO 15765-4 (CAN 29/500)

6. SAE J1850 PWM

7. ISO 14230-4 (KWP FAST)

8. ISO 15765-4 (CAN 11/250)

9. ISO 15765-4 (CAN 29/250)

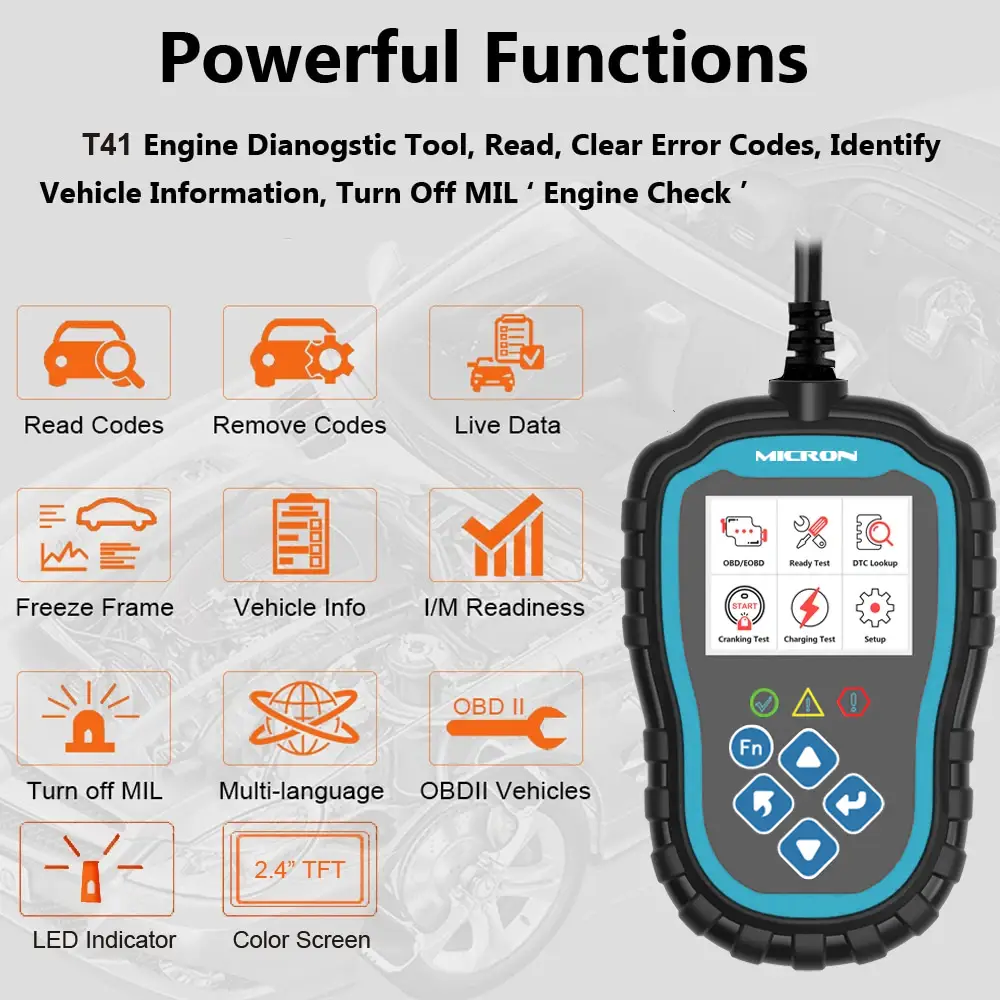

Features:

  • Reads trouble codes on most vehicles
  • Displays general and vehicle specific codes
  • View vehicle information
  • View real-time data streams
  • An essential automotive diagnostic tool



X6017
X6017
X6017
X6017

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
