The LM2576 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving 3A load with excellent line and load regulation.

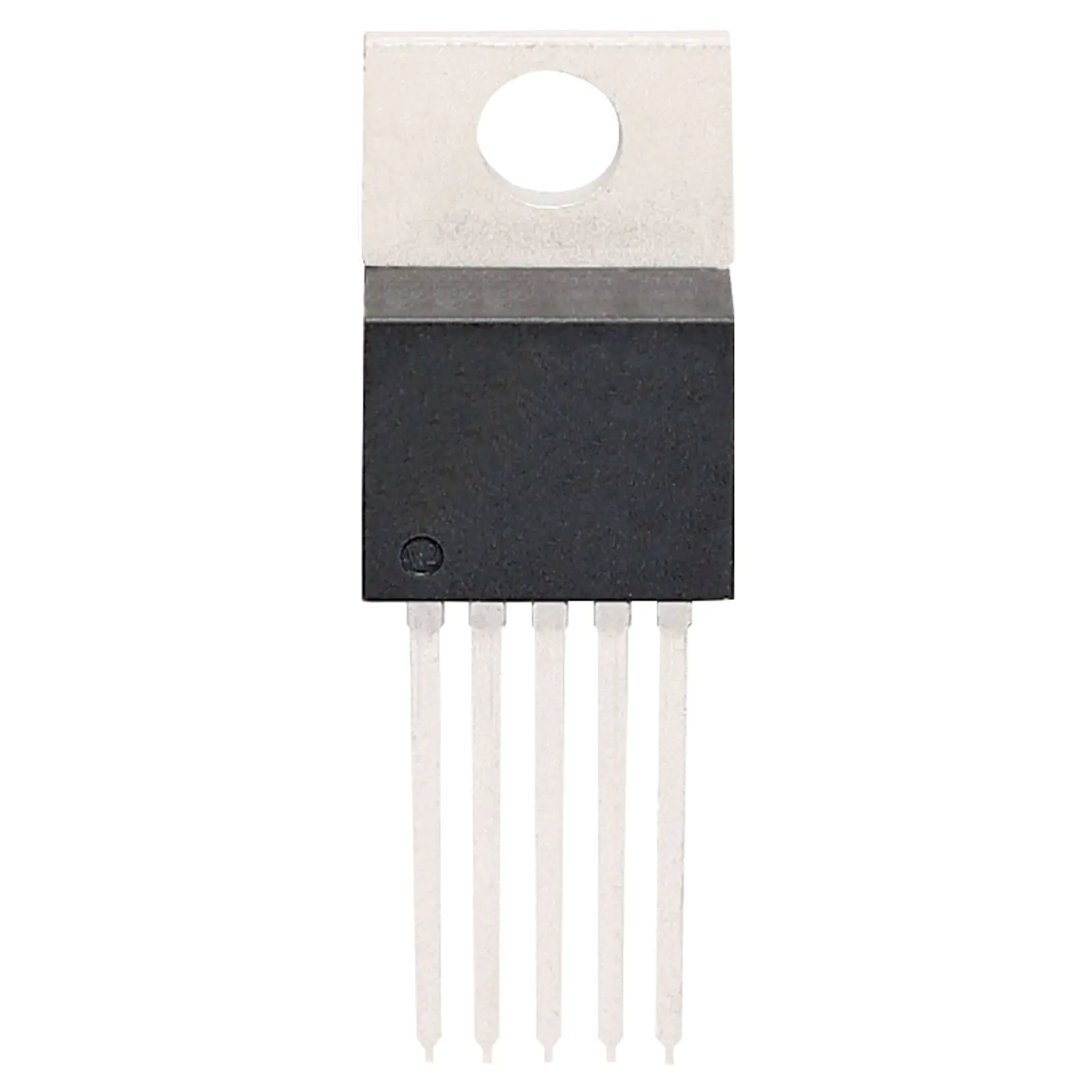

LM2576T Adjustable 1.2-37V 3A TO-220

Name: LM2576T Adjustable 1.2-37V 3A TO-220
SKU: Z0589
Price: 4.95 AUD
Availability: InStock

SKU: Z0589

The LM2576 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving 3A load with excellent line and load regulation.

$4.95

All Prices Shown are (ex GST)

Bulk Pricing

ea	$4.95
10+	$4.77
25+	$4.45

i h

Overview
Details
Warranty

Overview

The LM2576 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving 3-A load with excellent line and load regulation.

Requiring a minimum number of external components, these regulators are simple to use and include fault protection and a fixed-frequency oscillator.
The LM2576 series offers a high-efficiency replacement for popular three-terminal linear regulators. It substantially reduces the size of the heat sink, and in some cases no heat sink is required.

A standard series of inductors optimized for use with the LM2576 are available from several different manufacturers. This feature greatly simplifies the design of switch-mode power supplies.

Other features include a ±4% tolerance on output voltage within specified input voltages and output load conditions, and ±10% on the oscillator frequency. External shutdown is included, featuring 50-μA (typical) standby current. The output switch includes cycle-by-cycle current limiting, as well as thermal shutdown for full protection under fault conditions.

Features

Adjustable Version Output Voltage Range,1.23 V to 37 V (57 V for HV Version) ±4% Maximum Over Line and Load Conditions
Specified 3-A Output Current
Wide Input Voltage Range: 40 V Up to 60 V for HV Version
Requires Only 4 External Components
52-kHz Fixed-Frequency Internal Oscillator
TTL-Shutdown Capability, Low-Power Standby Mode
High Efficiency
Uses Readily Available Standard Inductors
Thermal Shutdown and Current Limit Protection

Details

Products specifications

Warranty	12 Months
Components
Type	Adjustable Voltage Regulators
