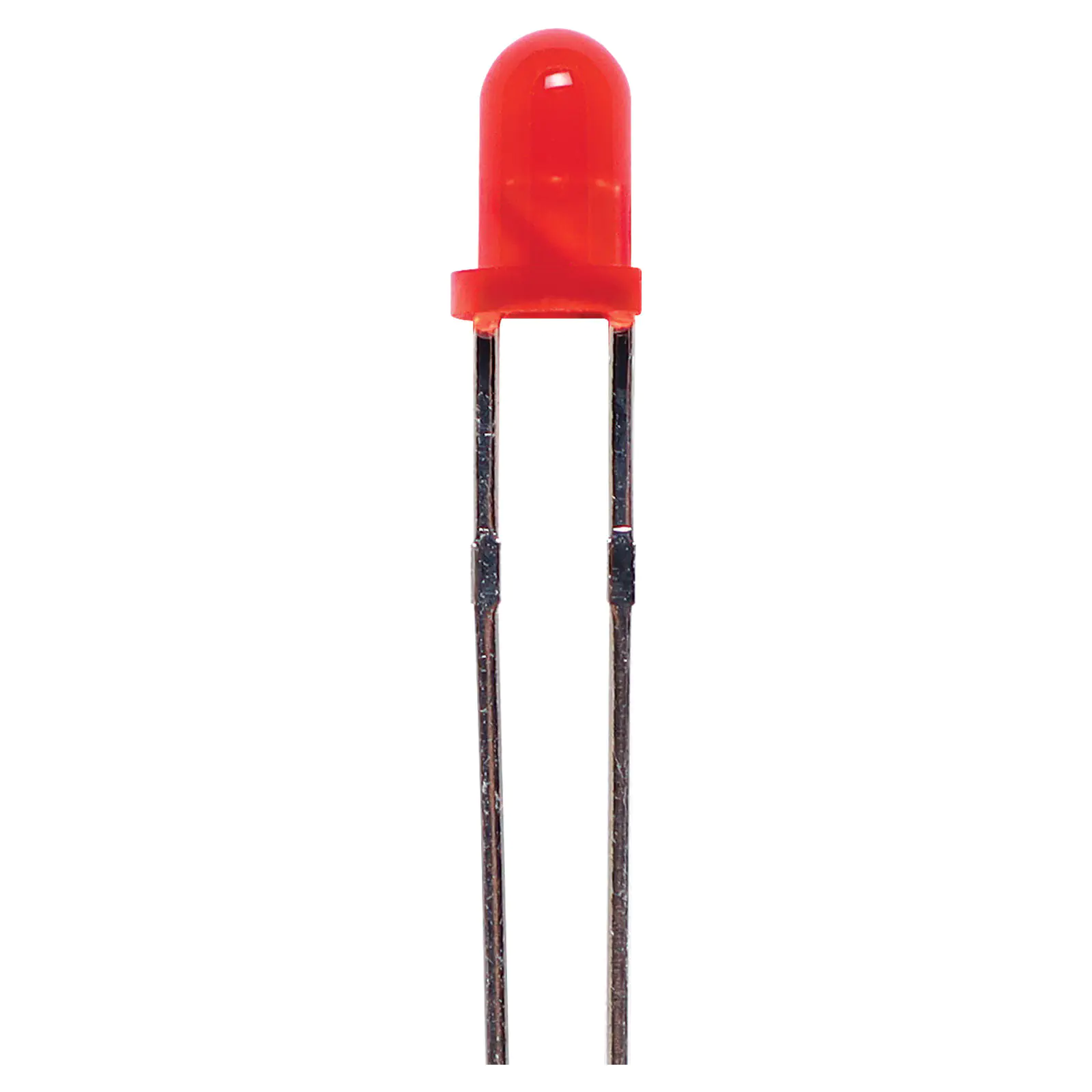

Red 35mcd 3mm LED

SKU: Z0702
3mm Red LED
$0.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $0.45
10+ $0.36
100+ $0.31
i h

Overview

3mm Red LED





Specifications:



General

Chip Material: GaAsP/GaP

Emitted Colour: Red

Lens Appearance: Red, Diffused



Maximum Ratings

Power Dissipation: 80mW

Forward Current: 30mA

Peak Forward Current: 150mA

Reverse Voltage: 5V

Operating Temperature: -40°C ~ 85°C

Storage Temperature: -40°C ~ 85°C



Electrical & Optical Characteristics

Forward Voltage: 2.1 (typ), 2.6V (max)

Luminous Intensity: 35mcd

Reverse Current: 100µA (max)

Peak Wave Length: 640nm

Dominant Wave Length: 625nm (min), 638nm (max)

Spectral Line Half-Width: 35nm

Viewing Angle: 35°



Features:

  • High Efficiency
  • Versatile PCB/Panel Mounting Options
  • Low Current Requirement
  • 3mm Diameter Package
  • Low Power Consumption
  • ROHS Compliant

Details

Products specifications

Warranty 12 Months
Components
Colour Red
Type 3mm LEDs
