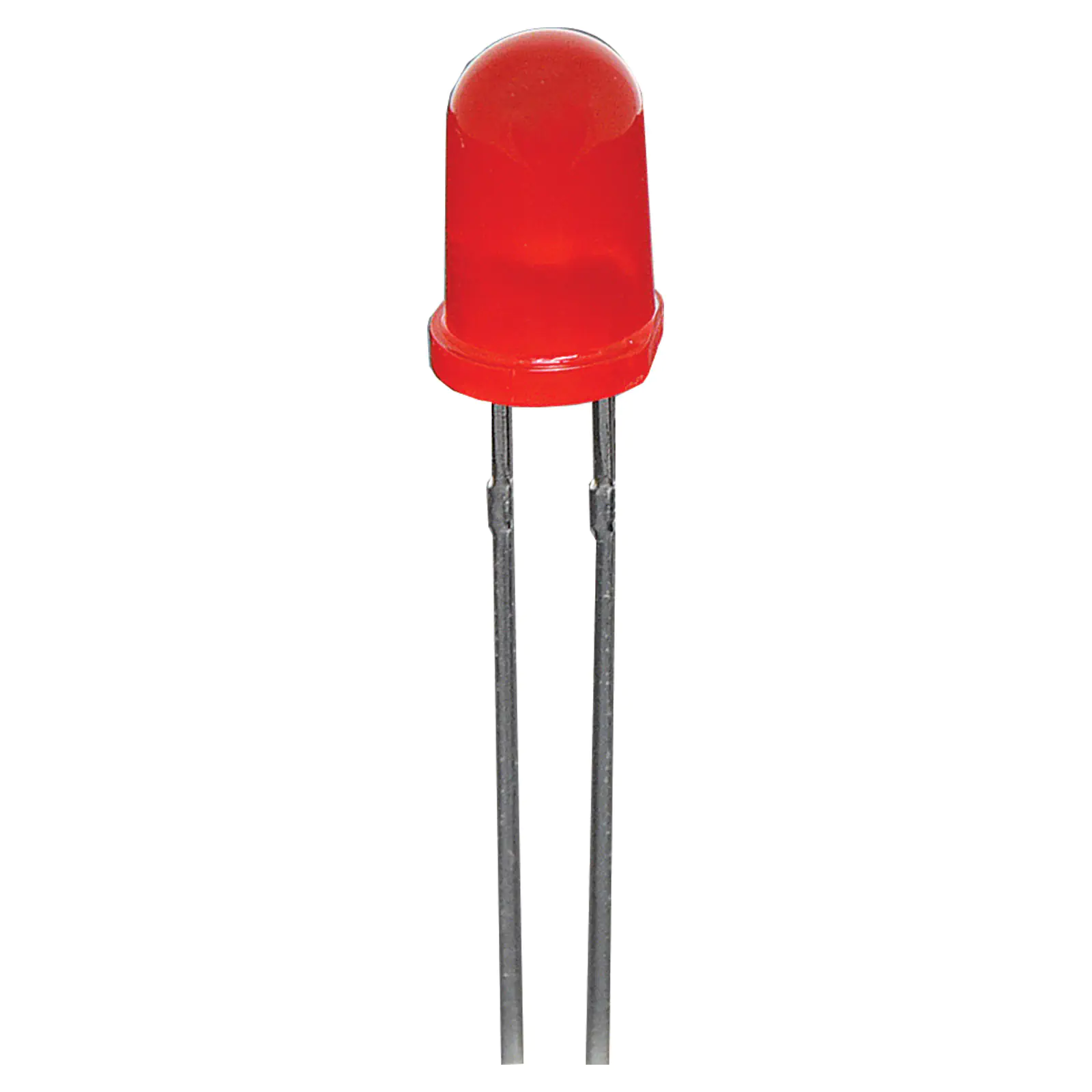

Red 70-150mcd 5mm Flashing LED

SKU: Z0889A
5mm Red Flashing LED
$1.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $1.09
10+ $0.77
100+ $0.73
i h

Overview

Red Flashing LED. Round head with flange. 5mm length. 1/8 duty cycle. Max 3V-4.5V. 2.0Hz. 620-630nm



Specifications:



Emitted Colour: Red

Lens Appearance: Red, Diffused

Power Consumption: 180mW (typical)

Operating Voltage: 3 (min.), 11V (typ.) 12V (max.)

Luminous Intensity: 70-150mcd

Flash Frequency: 2Hz

Peak Forward Current: 100mA (max)

Continuous Forward Current: 30mA (max)

Reverse Voltage: Max 3V-4.5V (max)

Reverse Current: 1µA (max)

Wave Length: 620nm

Beam Angle: 60°

Details

Products specifications

Warranty 12 Months
Components
Colour Red
Type 5mm LEDs
