8x8 RGB LED Matrix Display

SKU: Z0977
Designed to mount directly onto a LED Driver module. These modules can be stacked for extended displays.
$18.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $18.14
2+ $16.32
4+ $14.50
i h

Overview

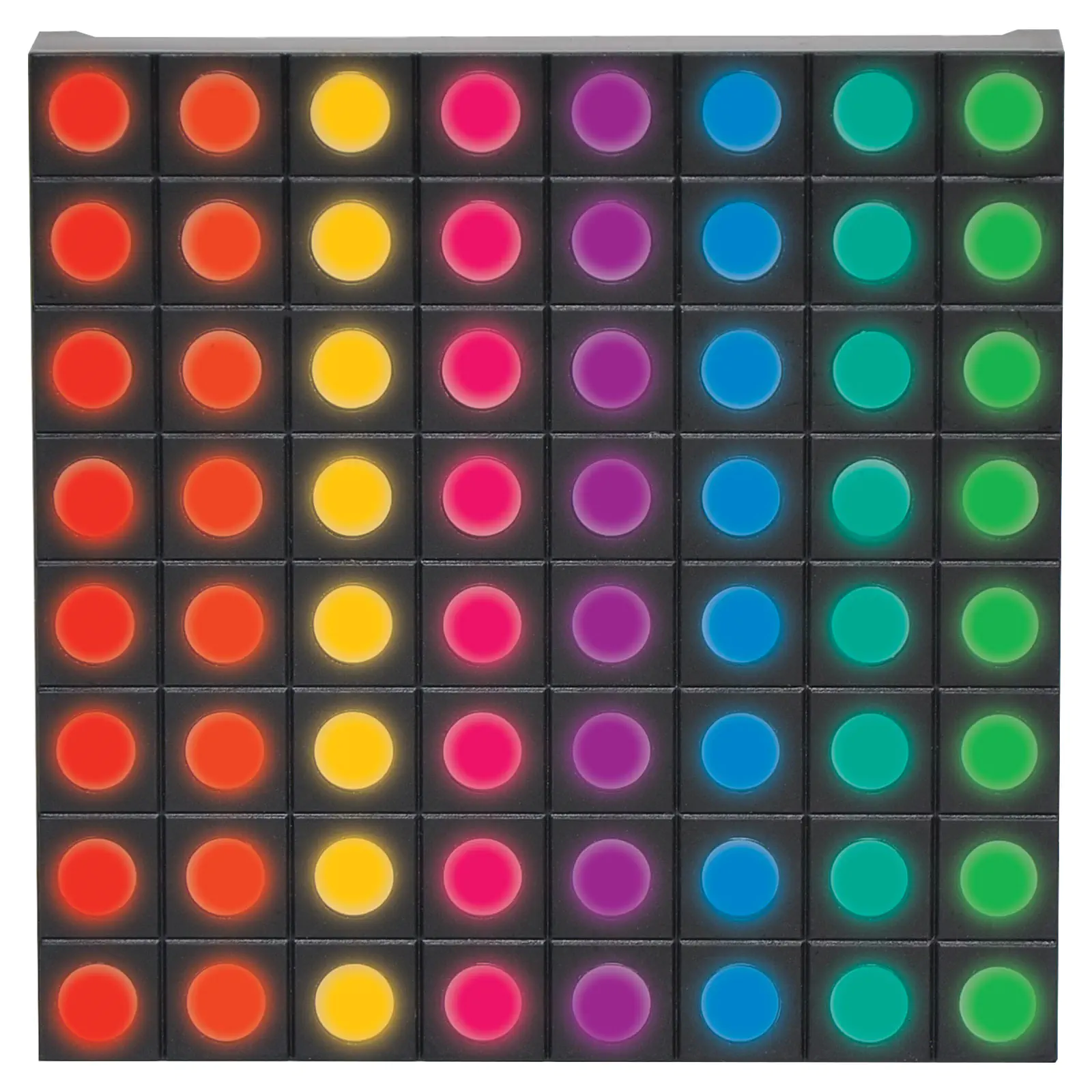

This LED matrix is great for a variety of projects. 64 bright RGB LEDs are contained inside the matte black body, in an 8x8 matrix. There are 32 pins in total, 16 on each side with a small amount of spacing in between so users can easily plug it into a driver module with plenty of space to wire it up. Driver modules can be stacked for extended displays. Dimensions: 60mm x 60mm.

Please Note: We recommend using Z6480 for plug and play programming - please see accessories listed below





Specifications:



Type: Common anode

Dot Size: 5.0mm

Lens Colour: Black facia and clear segments (while OFF)

Pulse Forward Current: 60mW

Forward Current: 30mA

Peak Forward Current: 80mA

Reverse Voltage: 5V

Reverse Current: 10µA

Forward Voltage (typical): R 2.0V, G 3.0V, B 3.0V

Forward Voltage (max): R 2.5V, 3.5V, 3.5V

Luminous Intensity (typical): R 80mcd, G 200mcd, B 70mcd

Luminous Intensity (max): R 100mcd, G 250mcd, B 110mcd

Operating Temperature: -40°C to +105°C

Pin Row Pitch: 46.4mm

Dimensions: 60.5W x 60.5D x 9.2Hmm

Details

Products specifications

Warranty 12 Months
Components
Colour Red
Type Display LEDs

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
User Manual
PDF
Accessories
A control shield suitable for use with the Arduino UNO to power and control the Z 0977 8x8 RGB LED module. Create colourful effects, display symbols and text using this creative shield. 5V DC input. DM163 & M54564FP controller on board.
Z6480

Control Shield Board to suit Z0977

A control shield suitable for use with the Arduino UNO to power and control the Z 0977 8x8 RGB LED module. Create colourful effects, display symbols and text using this creative shield. 5V DC input. DM163 & M54564FP controller on board.
