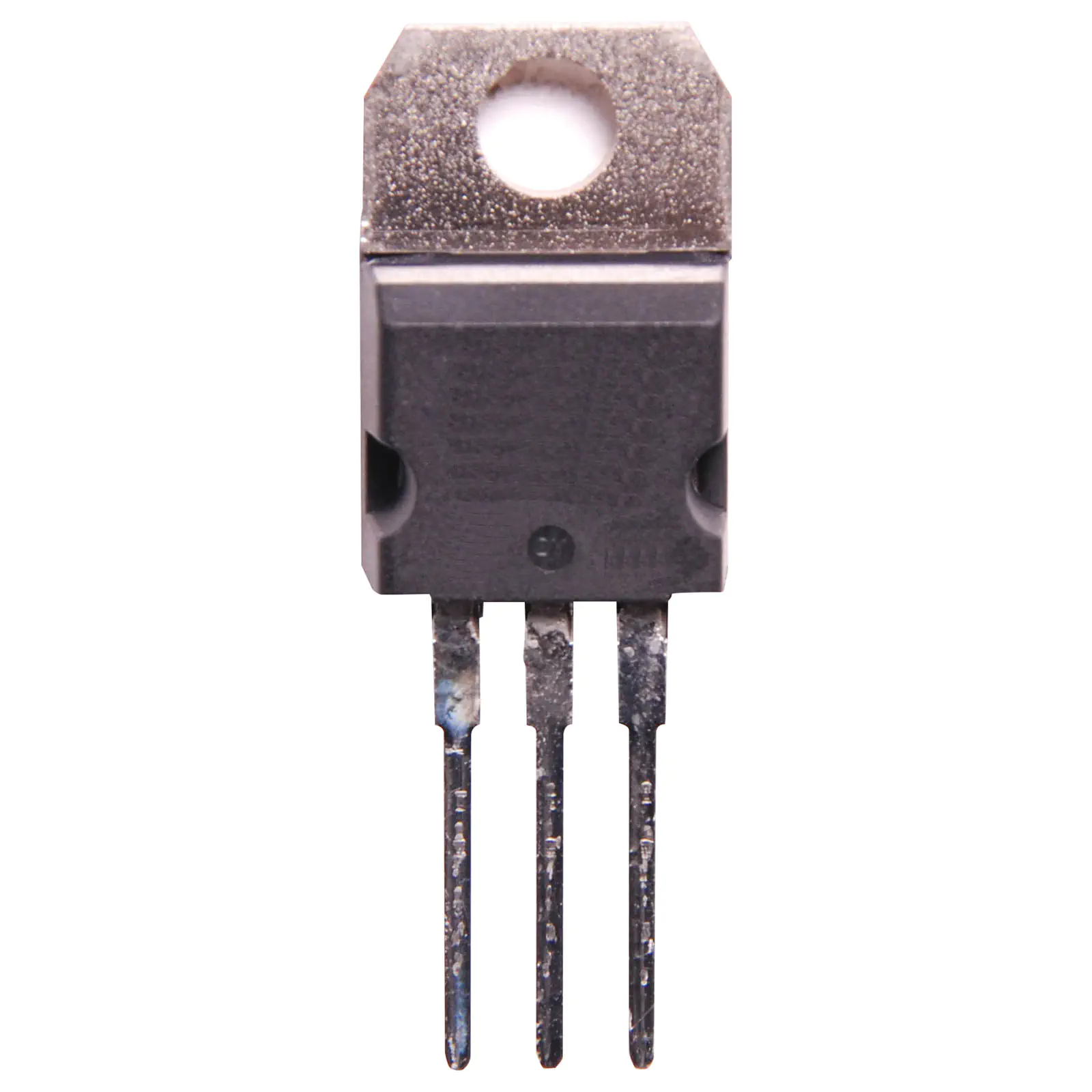

LD1117V33 - 3.3V 800mA TO-220 Low Drop Out Voltage Regulator

SKU: Z2695
LD1117V33 - 3.3V 800mA TO-220 Low Drop Out Voltage Regulator
$5.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.00
10+ $4.50
25+ $3.86
i h

Overview

A low drop out voltage regulator with a fixed 3.3V output.





Specifications:

Input Voltage MAX: 15 V

Output Voltage: 3.3 V

Dropout Voltage - Max: 1.1 V

Output Current: 800mA Min, 1.3 A Max

Load Regulation: 10 mV

Number of Outputs: 1 Output

Output Type: Fixed

Maximum Operating Temperature: + 150 C

Mounting Style: Through Hole

Package / Case: TO-220-3

Input Bias Current - Max: 5 mA

Line Regulation: 6 mV

Maximum Power Dissipation: 12 W

Minimum Operating Temperature: 0 C

Packaging: Tube

Series: LD1117V

Voltage Regulation Accuracy: 1 %

Details

Products specifications

Warranty 12 Months
Components
Type Fixed Voltage Regulators
