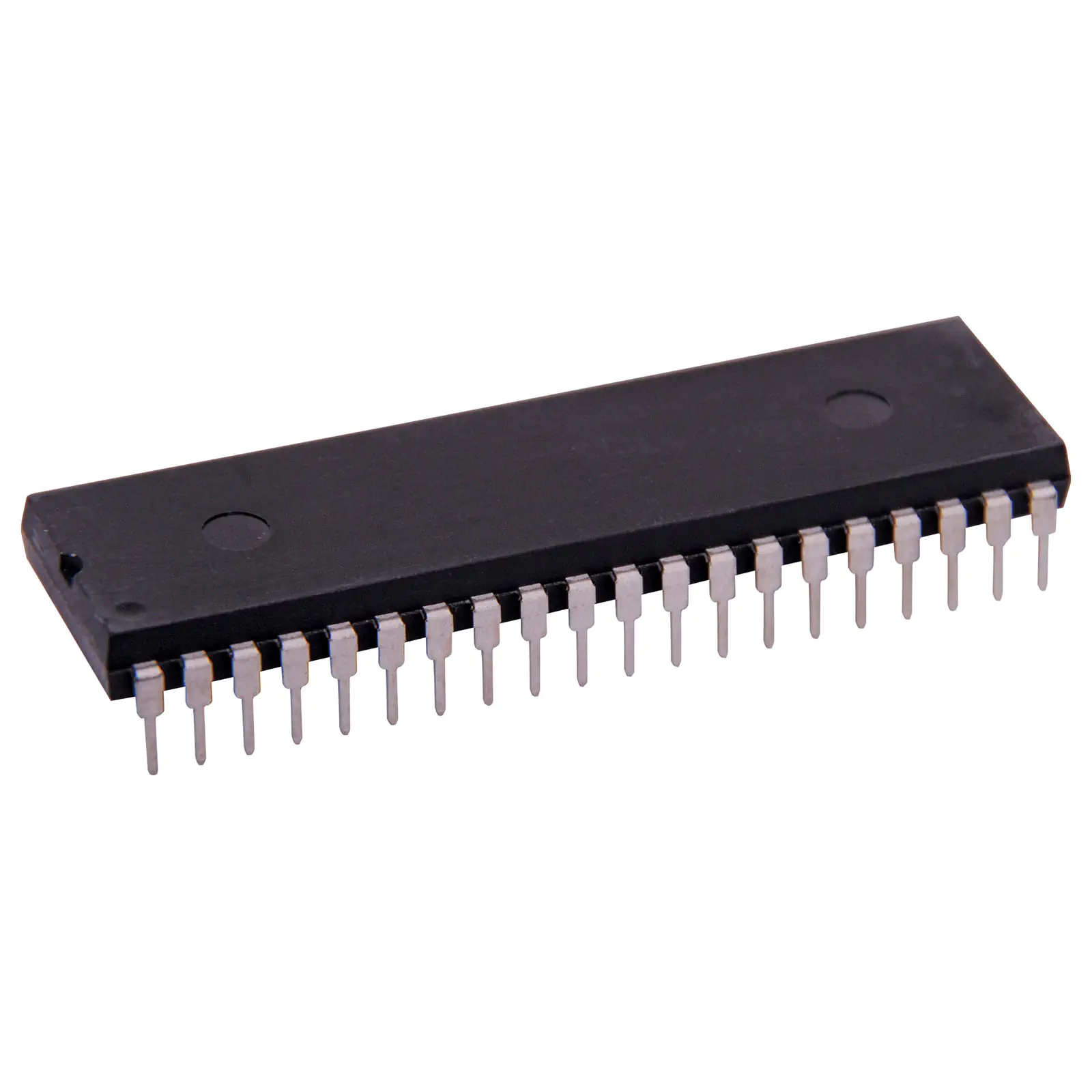

PIC16F877-20P IC

SKU: Z5070
PIC16F877-20/P
$9.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $9.77
5+ $8.91
10+ $8.28
i h

Overview

PIC16F877-20/P

The PIC16F877-20/P microcontroller is from a long line of microcontrollers commonly used world wide in thousands of applications. varying from simple sensor and reaction applications through to complex robotics and system control.
Due to their simple instruction set which makes them easy to program, large number of input output ports for connecting sensors and relays and their ability to withstand harsh environmental conditions. They have established themselves as an industry workhorse for the electronics industry and hobbyist alike.

Features

  • High performance RISC CPU
  • Only 35 single word instructions to learn
  • All single cycle instructions except for program branches which are two cycle
  • Operating speed: DC - 20 MHz clock input, DC - 200 ns instruction cycle
  • Up to 8K x 14 words of FLASH Program Memory,
  • Up to 368 x 8 bytes of Data Memory (RAM)
  • Up to 256 x 8 bytes of EEPROM Data Memory
  • Pinout compatible to the PIC16C73B/74B/76/77
  • Interrupt capability (up to 14 sources)
  • Eight level deep hardware stack
  • Direct, indirect and relative addressing modes
  • Power-on Reset (POR)
  • Power-up Timer (PWRT) and
  • Oscillator Start-up Timer (OST)
  • Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
  • Programmable code protection
  • Power saving SLEEP mode
  • Selectable oscillator options
  • Low power, high speed CMOS FLASH/EEPROM technology
  • Fully static design
  • In-Circuit Serial Programming (ICSP) via two pins
  • Single 5V In-Circuit Serial Programming capability
  • In-Circuit Debugging via two pins
  • Processor read/write access to program memory
  • Wide operating voltage range: 2.0V to 5.5V
  • High Sink/Source Current: 25 mA
  • Commercial, Industrial and Extended temperature ranges
  • Low-power consumption:
  • - < 0.6 mA typical @ 3V, 4 MHz
  • - 20 μA typical @ 3V, 32 kHz
  • - < 1 μA typical standby current



Specifications

Manufacturer: Microchip

Product category: 8-bit Microcontrollers - MCU

Core: PIC

Data bus width: 8 bit

Maximum clock frequency: 20 MHz

Program memory size: 8 KB

Data RAM size: 368 B

On-Chip ADC: Yes

Operating supply voltage: 2 V to 5.5 V

Maximum operating temperature: + 70 C

Package / case: PDIP-40

Mounting style: Through Hole

A/D Bit size: 10 bit

A/D Channels available: 8

Data ROM size: 256 B

Interface type: MSSP, PSP, USART

Minimum operating temperature: 0 C

Number of programmable I/Os: 33

Number of timers: 3

Processor series: PIC16

Program memory type: Flash

Series: PIC16

Supply voltage - Max: 5.5 V

Supply voltage - Min: 4 V
