A microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable.

Funduino Uno R3 Arduino Compatible Development Board

Name: Funduino Uno R3 Arduino Compatible Development Board
SKU: Z6240
Price: 31.77 AUD
Availability: InStock

SKU: Z6240

A microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with USB.

$31.77

All Prices Shown are (ex GST)

Bulk Pricing

ea	$31.77
2+	$28.14
4+	$25.41

i h

Overview
Details
Warranty

Overview

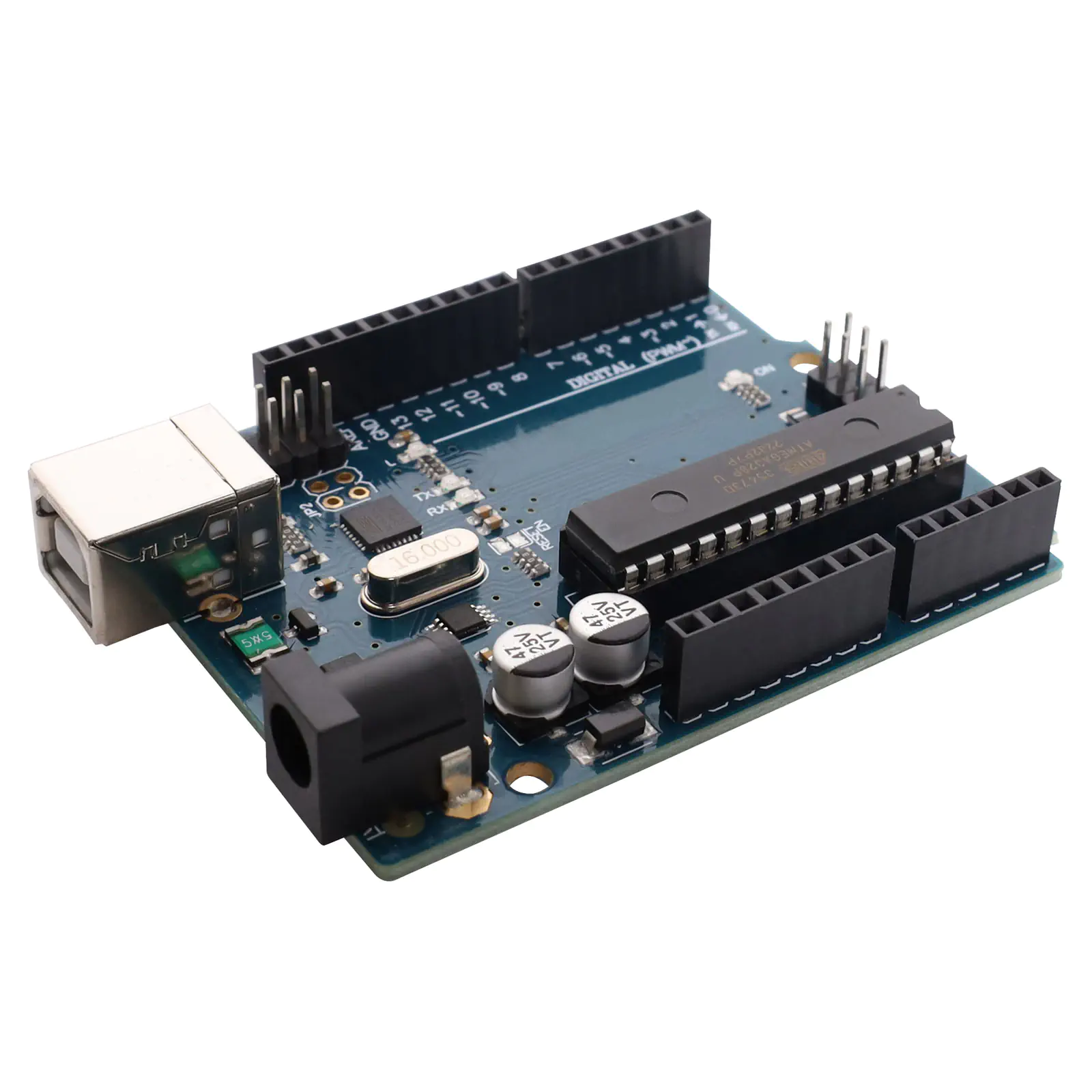

An Arduino UNO R3 compatible clone board by Funduino. It is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with the included USB cable.

Specifications:

Microcontroller: ATmega328

Operating Voltage: 5V

Input Voltage (recommended); 7-12V

Input Voltage (limits): 6-20V

Digital I/O Pins: 14 (of which 6 provide PWM output)

Analog Input Pins: 6

DC Current per I/O Pin: 40 mA

DC Current for 3.3V Pin: 50mA

Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by boot loader

SRAM: 2 KB (ATmega328)

Features:

Treated as an original Arduino Uno by the Arduino IDE. No messing around with extra libraries.
Includes USB cable for easy connection to your PC
100% Arduino UNO R3 compatible, identical layout and construction.
ATMega16U2 on board
1 year Altronics warranty.
EEPROM: 1 KB (ATmega328)
Clock Speed: 16MHz

Details

Products specifications

Warranty	12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
