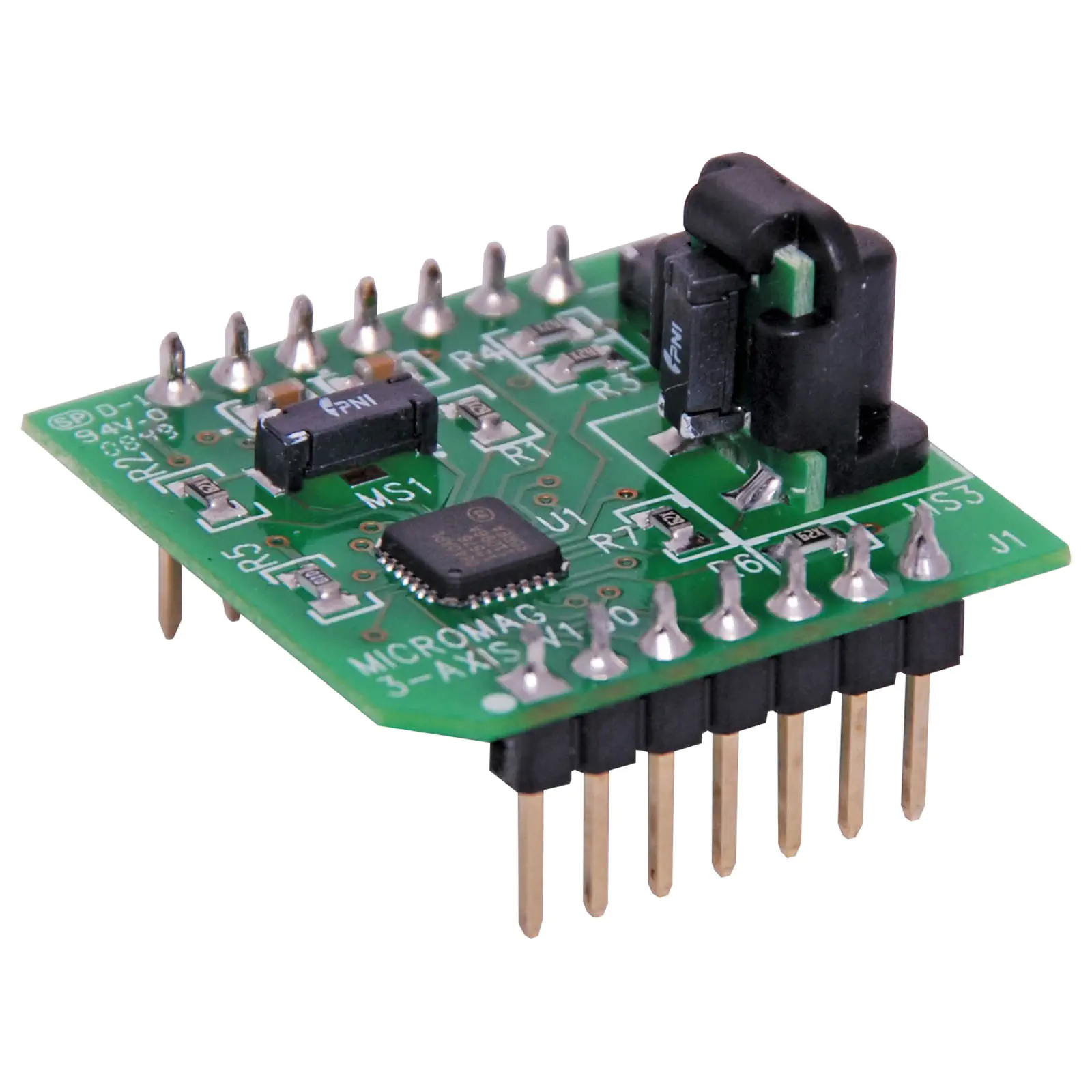

3 Axis MicroMag Magnetic Sensor Module

SKU: Z6300
A high performance magnetic field sensing module designed for use in solid state navigation & compassing equipment in automotive, marine and aeronautic applications. Output can be fed directly into a microprocessor such as Arduino boards.
$9.05

All Prices Shown are (ex GST)
Bulk Pricing
ea $9.05
4+ $8.14
8+ $7.23
i h

Overview

A high performance magnetic field sensing module designed for use in solid state navigation & compassing equipment in automotive, marine and aeronautic applications. Output can be fed directly into a microprocessor such as Arduino boards.





Specifications:



Operating voltage: 3.0V dc

Field measurement range: -11 to +11 Gauss

Dimensions: 25.4 x 25.4mm

Current draw: 0.6mA

Sampling rate: Up to 2000 samples/second

Operating temperature: -20°C to 70°C

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.htm
Wiring Example
HTM
.pdf
Datasheet
PDF
