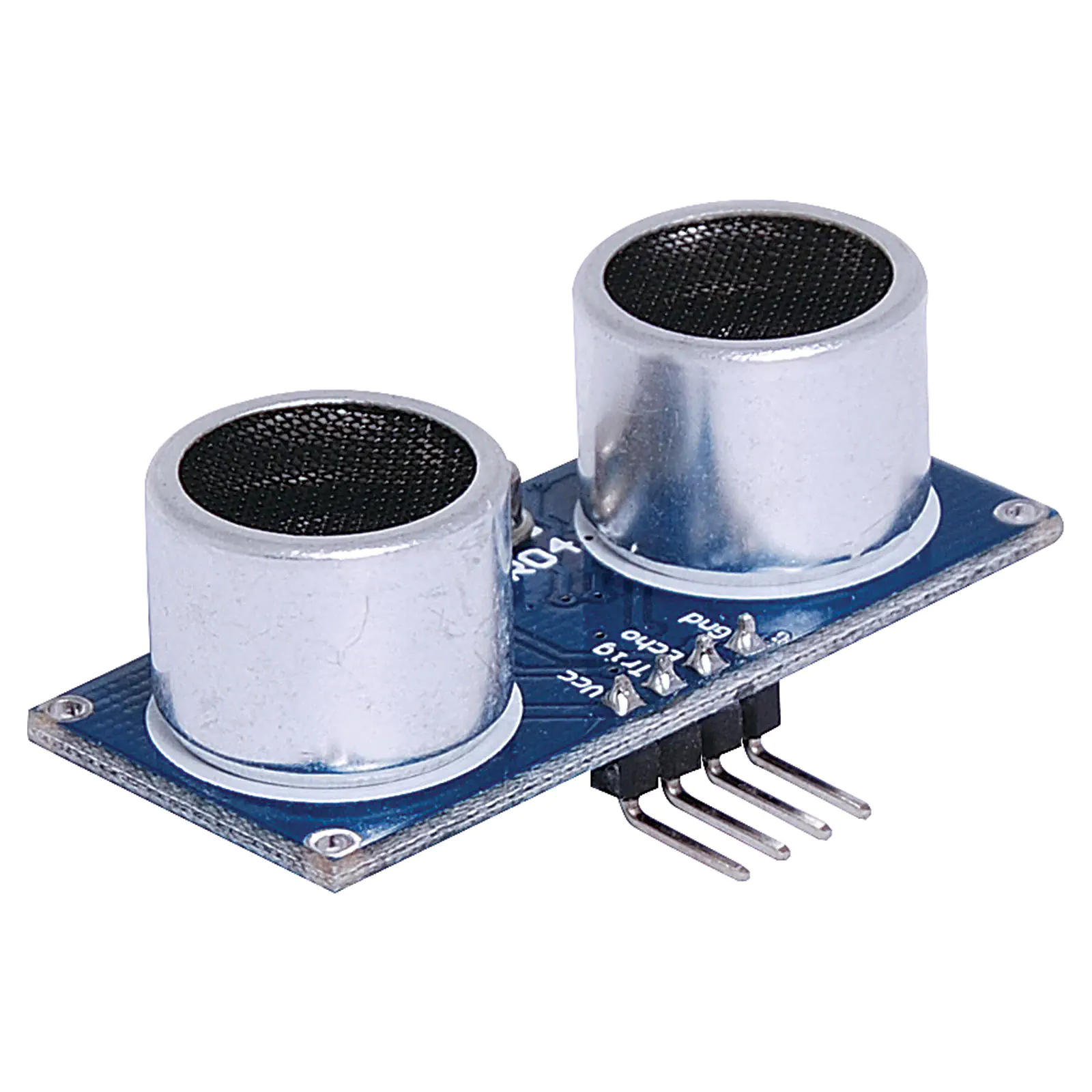

Ultrasonic Distance Sensor Breakout For Arduino

SKU: Z6322
A proximity/distance sensor that can be used for object avoidance in many applications from robotics to car parking. The module has dual ultrasonic transmitters, receiver and control circuit and is designed for use in conjunction with Arduino boards.
$7.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $7.23
2+ $6.50
4+ $5.77
i h

Overview

A proximity/distance sensor that can be used for object avoidance in many applications from robotics to car parking. The module has dual ultrasonic transmitters, receiver and control circuit and is designed for use in conjunction with Arduino boards.





Specifications:



Working Voltage: DC 5V

Output : 5V

Static Current: 2mA

Detection Distance : 20 - 4500mm

Resolution: >3mm

Output signal: Electric frequency signal, high level 5V, low level 0V.

Sensor angle: Not more than 15 degrees.

Input trigger signal: 10us TTL impulse

Echo signal : output TTL PWL signal

Dimensions : 45 x 27 x 17mm

Weight : 9g
