Chip: MPU-6050
Power supply: 3~5V
Communication mode: standard IIC communication protocol
Chip built-in 16bit AD converter, 16bit data output
Gyroscopes range: +/- 250 500 1000 2000 degree/sec
Acceleration range: +/- 2g, +/- 4g, +/- 8g, +/- 16g
Immersion Gold plating PCB, machine welding process to ensure quality
Pin spacing: 2.54mm
This mo

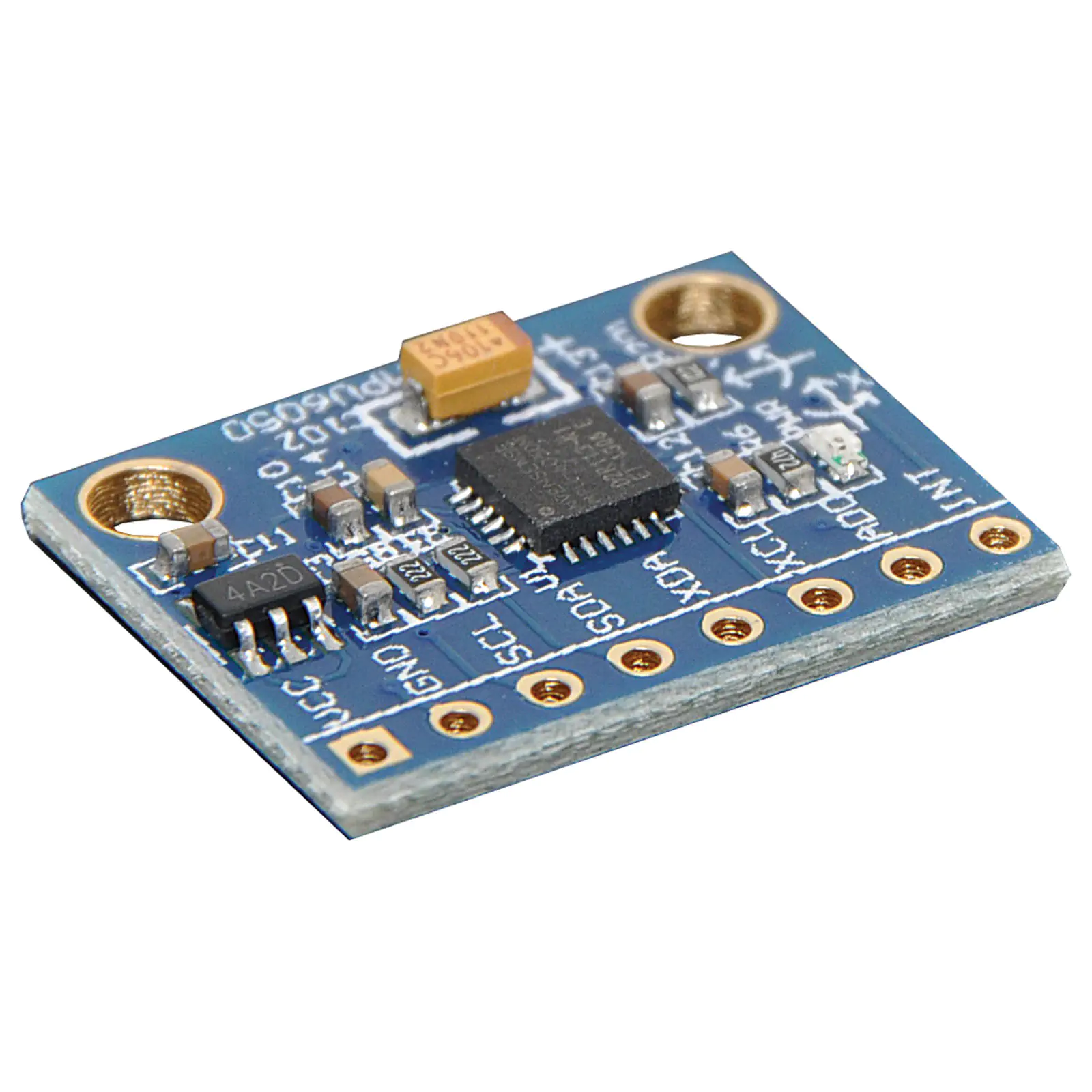

MPU-6050 6 Axis Accelerometer Plus Gyro Breakout For Arduino

Name: MPU-6050 6 Axis Accelerometer Plus Gyro Breakout For Arduino
SKU: Z6324
Price: 20.86 AUD
Availability: InStock

SKU: Z6324

Chip: MPU-6050 Power supply: 3~5V Communication mode: standard IIC communication protocol Chip built-in 16bit AD converter, 16bit data output Gyroscopes range: +/- 250 500 1000 2000 degree/sec Acceleration range: +/- 2g, +/- 4g, +/- 8g, +/- 16g Immersion Gold plating PCB, machine welding process to ensure quality Pin spacing: 2.54mm

$20.86

All Prices Shown are (ex GST)

Bulk Pricing

ea	$20.86
4+	$18.86
8+	$16.82

i h

Overview
Details
Warranty
Downloads

Overview

The MPU-6000 family provides the world's first integrated 6-axis MotionProcessing solution that eliminates the package-level gyro/accel cross-axis misalignment associated with discrete solutions. The devices combine a 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an onboard Digital Motion Processor (DMP) capable of processing complex 9-axis MotionFusion algorithms. The parts integrated 9-axis MotionFusion algorithms access external magnetometers or other sensors through an auxiliary master I2C bus, allowing the devices to gather a full set of sensor data without intervention from the system processor.

The devices are offered in the same 4x4x0.9 mm QFN footprint and pinout as the current MPU-3000 family of integrated 3-axis gyroscopes, providing a simple upgrade path and making it easy to fit on space constrained boards. This module comes with two sets of pin headers: 1 x straight and 1 x 90°. Immersion Gold plating PCB, machine welding process to ensure quality. Chip Built-In 16bit AD converter, 16bit data output.

Specifications:

Chip: MPU-6050

Power Supply: 3~5V

Communication Mode: standard IIC communication protocol

Gyroscopes Range: +/- 250 500 1000 2000 degree/sec

Acceleration Range: +/- 2g, +/- 4g, +/- 8g, +/- 16g

Pin Spacing: 2.54mm

Details

Products specifications

Warranty	12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Datasheet

PDF
