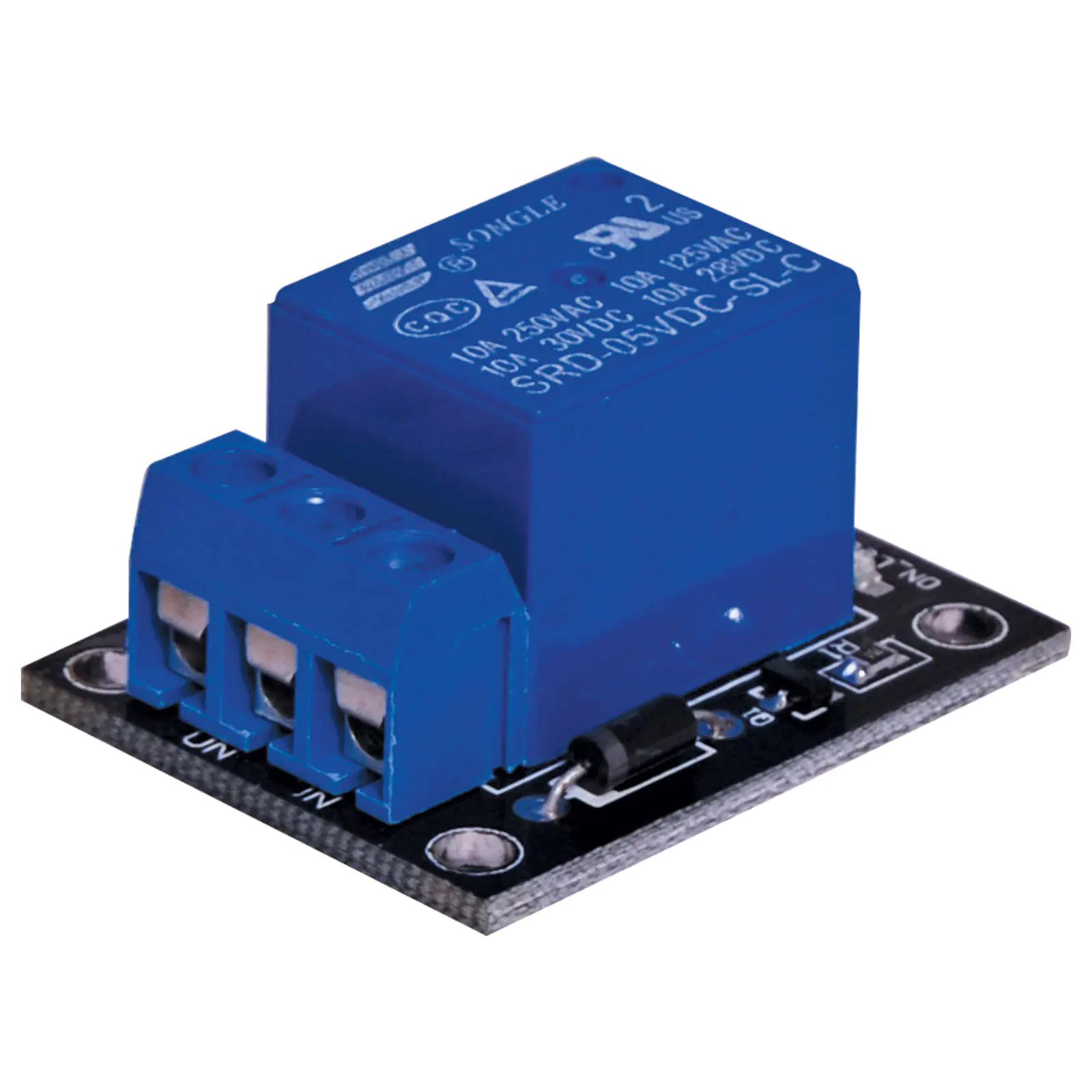

5V Relay Control Board Module/Shield

SKU: Z6325
This 5V relay module is suitable for integration with many types of micro control systems, including Arduino. Ideal for home appliance control. 5V-12V TIL control signal suitable for controlling DC / AC signal. The module is perfect for common Arduino applications.
$4.50

All Prices Shown are (ex GST)
Bulk Pricing
ea $4.50
4+ $4.05
8+ $3.59
i h

Overview

Ideal for home appliance control. 5V-12V TIL control signal suitable for controlling DC / AC signal. It can be controlled directly by Micro-controller (Raspberry Pi, Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic). Indication LED’s for Relay output status. 15-20mA Driver Current. Equipped with high-current relay, AC250V 10A ; DC30V 10A.

For more information about 5v relay modules and for sample codes, click here.

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Datasheet
PDF
