Funduino 5V DC Stepper Motor And ULN2003 Control Board

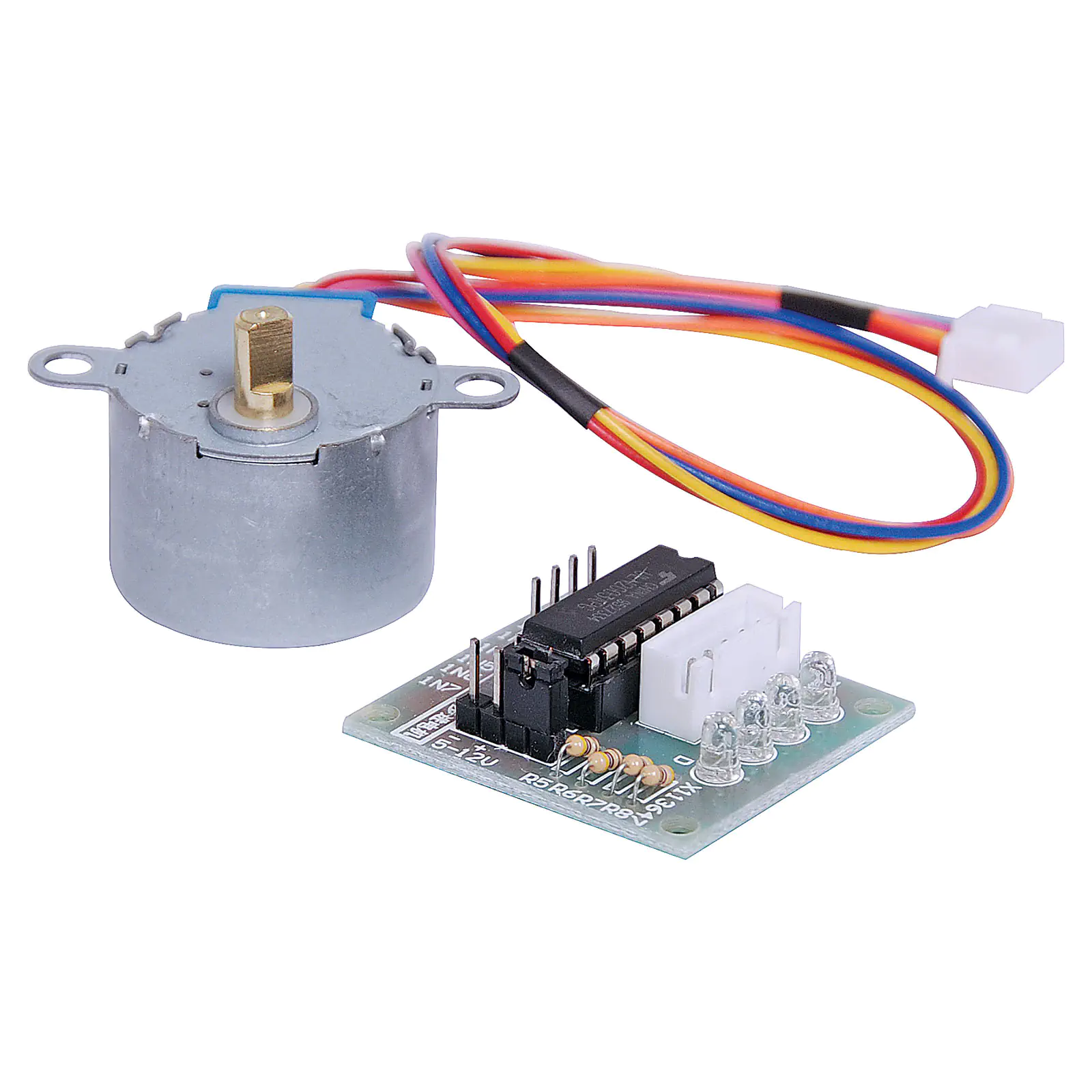

5V 64-step 4-phase Stepper motor with ULN2003 interface board specifically for interfacing with Arduino based projects.

A, B, C, D four-phase LED indicates the status of the stepper motor work

Dimensions of Board : 31 × 35mm

ULN2003 Darlington using high-power stepper motor driver chip

Specifications:

Rated voltage: 5VDC

Number of Phase : 4

Speed Variation Ratio : 1/64

Stride Angle : 5.625° /64

Frequency : 100Hz

DC resistance: 50Ω±7%(25℃)

Idle In-traction Frequency: > 600Hz

Idle Out-traction Frequency: > 1000Hz

In-traction Torque: >34.3mN.m(120Hz)

Self-positioning Torque: >34.3mN.m

Friction torque: 600-1200 gf.cm

Pull in torque: 300 gf.cm

Insulated resistance: >10MΩ(500V)

Insulated electricity power : 600VAC/1mA/1s

Insulation grade: A

Rise in Temperature: <40K(120Hz)

Noise: <35dB(120Hz,No load,10cm)

Features:

• The rotation angle of the motor is proportional to the input pulse.
• The motor has full torque at standstill(if the windings are energized)
• Precise positioning and repeatability of movement since good stepper motors have an accuracy of – 5% of a step and this error is non cumulative from one step to the next.
• Excellent response to starting/stopping/reversing.
• Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependant on the life of the bearing.
• The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
• It is possible to achieve very low speed synchronous rotation with a load that is directly coupled to the shaft.
• A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.
