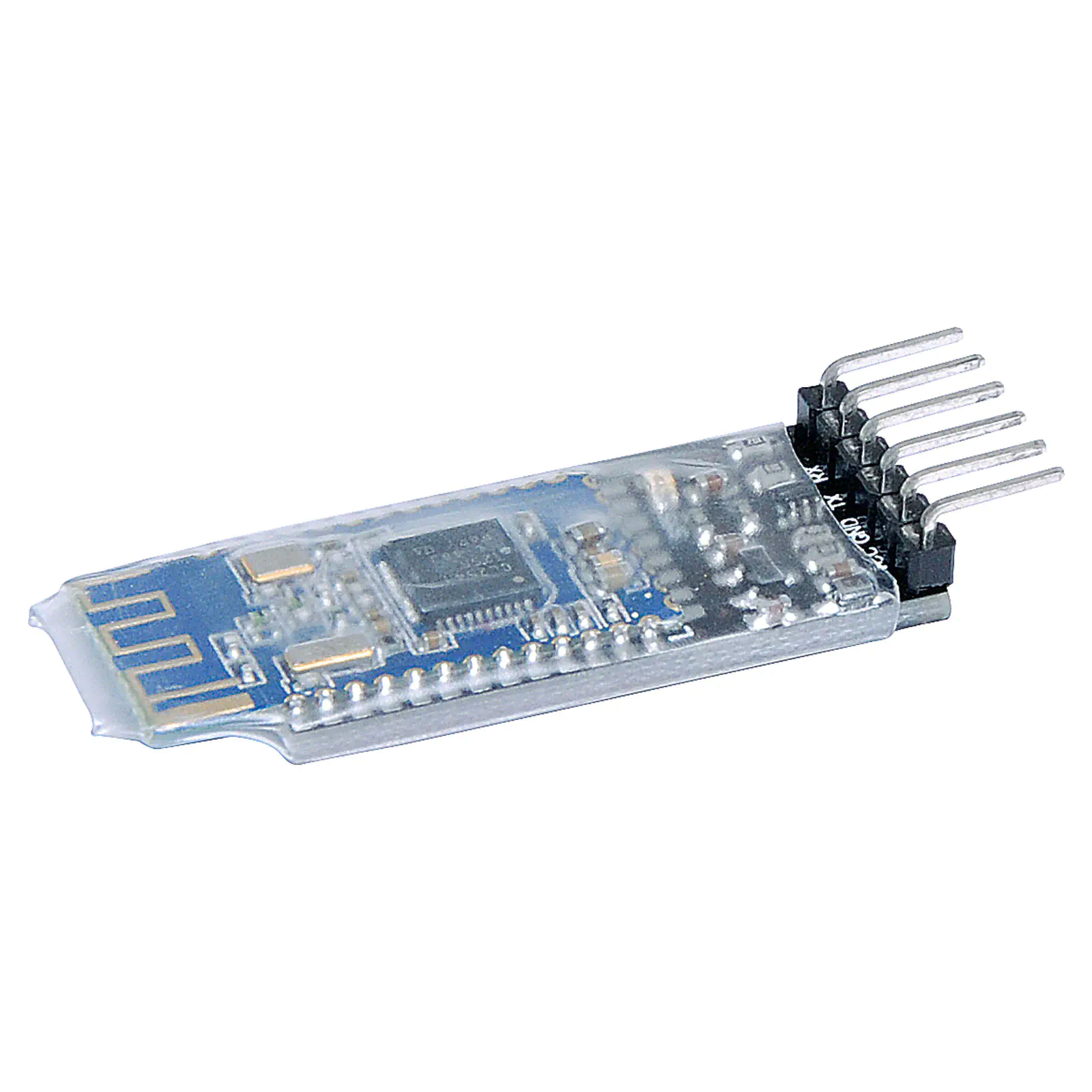

Bluetooth 4.0 Module

SKU: Z6365
This small size Bluetooth 4.0 TTL transceiver module allows your project to communicate with other bluetooth equipped devices. Can be set as slave or master. Low standby current. 60m range. Inbuilt antenna. 3.6-6V input. 45L x 17Wmm.
$27.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $27.23
2+ $24.50
4+ $21.77
i h

Overview

This small size Bluetooth 4.0 TTL transceiver module allows your project to communicate with other bluetooth equipped devices. Can be set as slave or master. Low standby current. 110m range. Integrated chip antenna. Size: 27L x 13W x 2H mm.

Application Fields:

Cable replacement

Point of sales systems

Barcode readers and pay terminals

Telemetry and machine to machine devices

Logistics and transportation systems

Automotive inspection and measurement systems

Medical systems

Fitness and sports telemetry devices

PDA and other portable terminals

PCs and laptop OBD







Specifications:



Size: 27L x 13W x 2H mm

Operating frequency: 2.4 GHz ISM band

Modulation method: GFSK (Gaussian Frequency Shift Keying)

Acuity: 84 DBM or less BER at 0.1%

Transfer rate: Asynchronous: 6 KBPS Synchronous: KBPS

Security features: Authentication and encryption

Support services: Central and Peripheral UUID FFE0, FFE1

Power consumption: automatic sleep mode, the standby current 400 ~ 1.5 mA, transfer 8.5 mA.

Power supply: + 3.3 VDC 50 ma

Output Power Class: Class 2

Operating Voltage: 3.3V

Host Interface: UART



Features:

  • Based on TI CC2541 chipset
  • Bluetooth class 2
  • Industrial level SPP Bluetooth module
  • Integrated chip antenna
  • Support for on board applications
