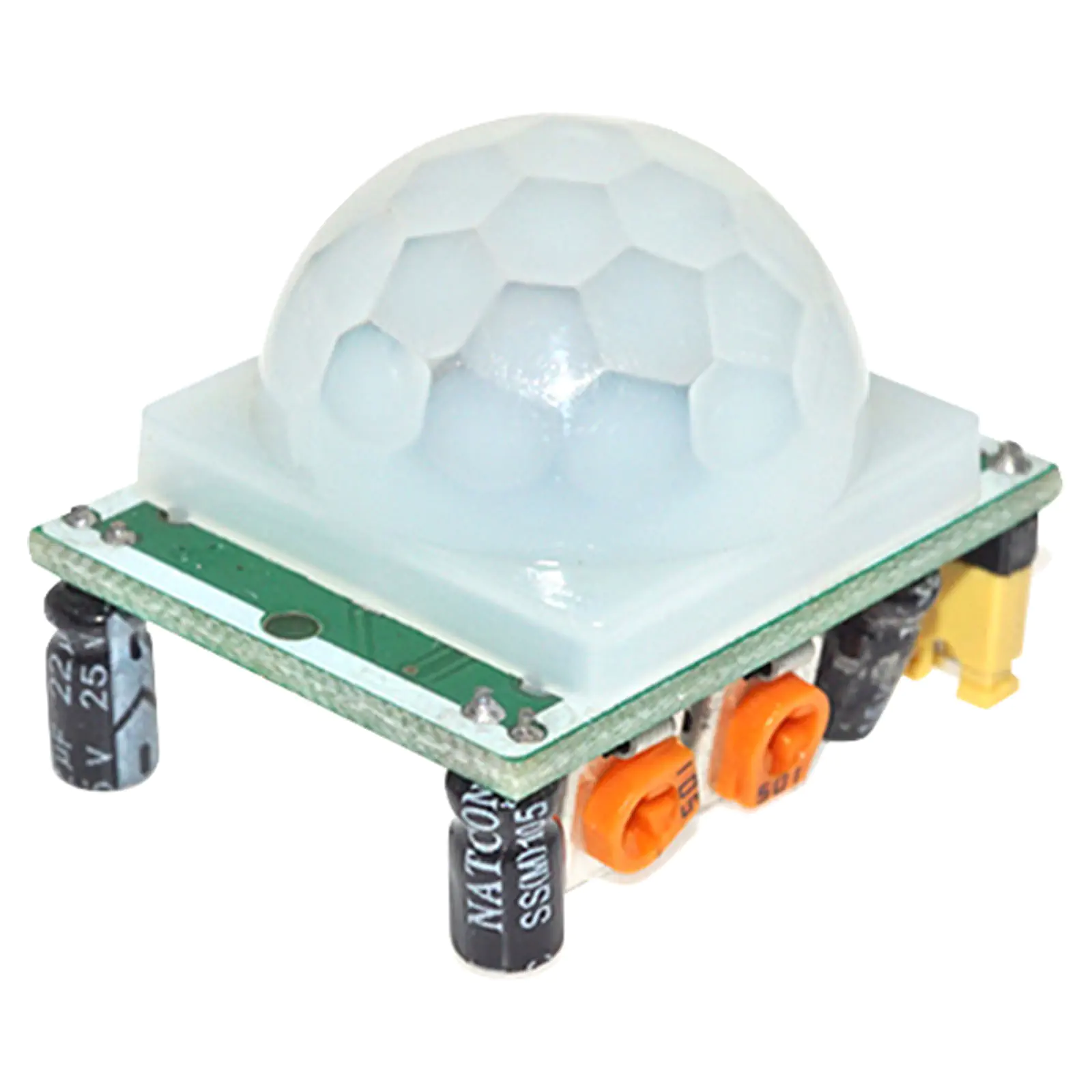

PIR Motion Sensor Module For Arduino

SKU: Z6382A
When this motion sensor module is used in projects it can detect motion based on changes in infrared light in the environment. It is ideal to detect if a human has moved in or out of the sensor range. An LED will light up when movement is detected. This makes the module a great addition to security application projects.
$6.32

All Prices Shown are (ex GST)
Bulk Pricing
ea $6.32
2+ $5.91
4+ $5.68
i h

Overview

This PIR sensor is perfect for use with a Raspberry Pi and other IoT projects, as it can be powered directly from the a 5V output and read from the GPIO input, thanks to its 3.3V digital output.

The sensor features an adjustable delay (from approximately 0.5 to 200 seconds) and sensitivity, plus it includes two M2 mounting holes. It operates on a power range of 4.5V to 20V (or 3V with some simple soldering to bypass the regulator). The digital output is 3.3V for high and 0V for low. Its detection range extends up to 7 meters in a 100-degree cone.





Specifications:



Dimensions: 32L x 25H x 24Wmm

Sensor Outputs: Digital Output

Required Supply Voltage: 5V - 20V

Digital Output: 3.3V (High)

Digital Output: 0V (Low)

Quiescent Current: <50uA

Delay Time: 0.5 - 200 Seconds

Range 5m - 7m

Angle Sensor: <100° cone angle

Operating Temperature: -15°C to 70°C

Lens size sensor: Ø23mm

Details

Products specifications

Warranty 12 Months
