ESP32 WiFi-Bluetooth Module & Interface Board

SKU: Z6385A
This board features a powerful ESP32 dual core microcontroller that has wifi and bluetooth. This allows it to have the ability to be programmed with the Arduino IDE.
$29.95

All Prices Shown are (ex GST)
Bulk Pricing
ea $29.95
2+ $27.05
4+ $24.09
i h

Overview

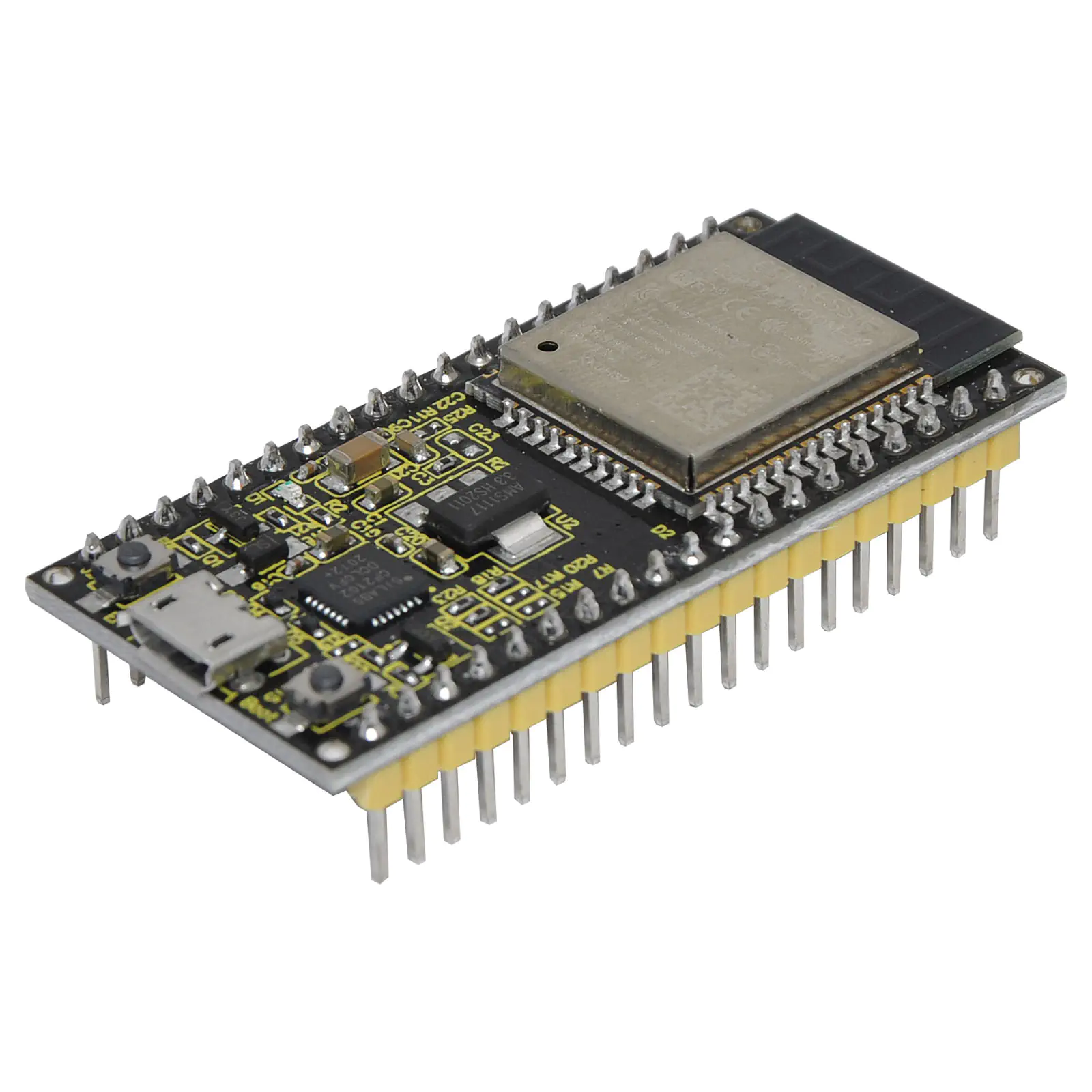

This ESP32 core board is a mini development board based on the ESP-WROOM-32 module with in-built bluetooth and wi-fi to make it easy to connect to other devices and networks. Great for small IoT projects.

The module is the industries leading integrated WiFi + Bluetooth solution with less than 10 external components. It integrates antenna switch, RF balun, power amplifiers, low noise amplifiers, filters and power management modules. At the same time, it also integrates with TSMC's low-power 40nm technology, so that power performance and RF performance are safe and reliable, easy to expand to a variety of applications. Size: 55 x 26mm





Specifications:



Microcontroller: ESP-WROOM-32 module

USB to Serial Port Chip: CP2102-GMR

Operating Voltage: DC 5V

Operating Current: 80mA (average)

Current Supply: 500mA (Minimum)

Operating Temperature Range: -40? ~ +85?

WiFi mode: Station/SoftAP/SoftAP+Station/P2P

WiFi protocol: 802.11 b/g/n/e/i (802.11n, speed up to 150 Mbps

WiFi frequency range: 2.4 GHz ~ 2.5 GHz

Bluetooth protocol: conform to Bluetooth v4.2 BR/EDR and BLE standards

Dimensions: 55mm x 26mm x 13mm

Weight: 9.3g
