A WIFI+ bluetooth dual-mode development board that uses PCB on-board antennas and cores based on ESP32 chips. It can work independently as a minimum system.

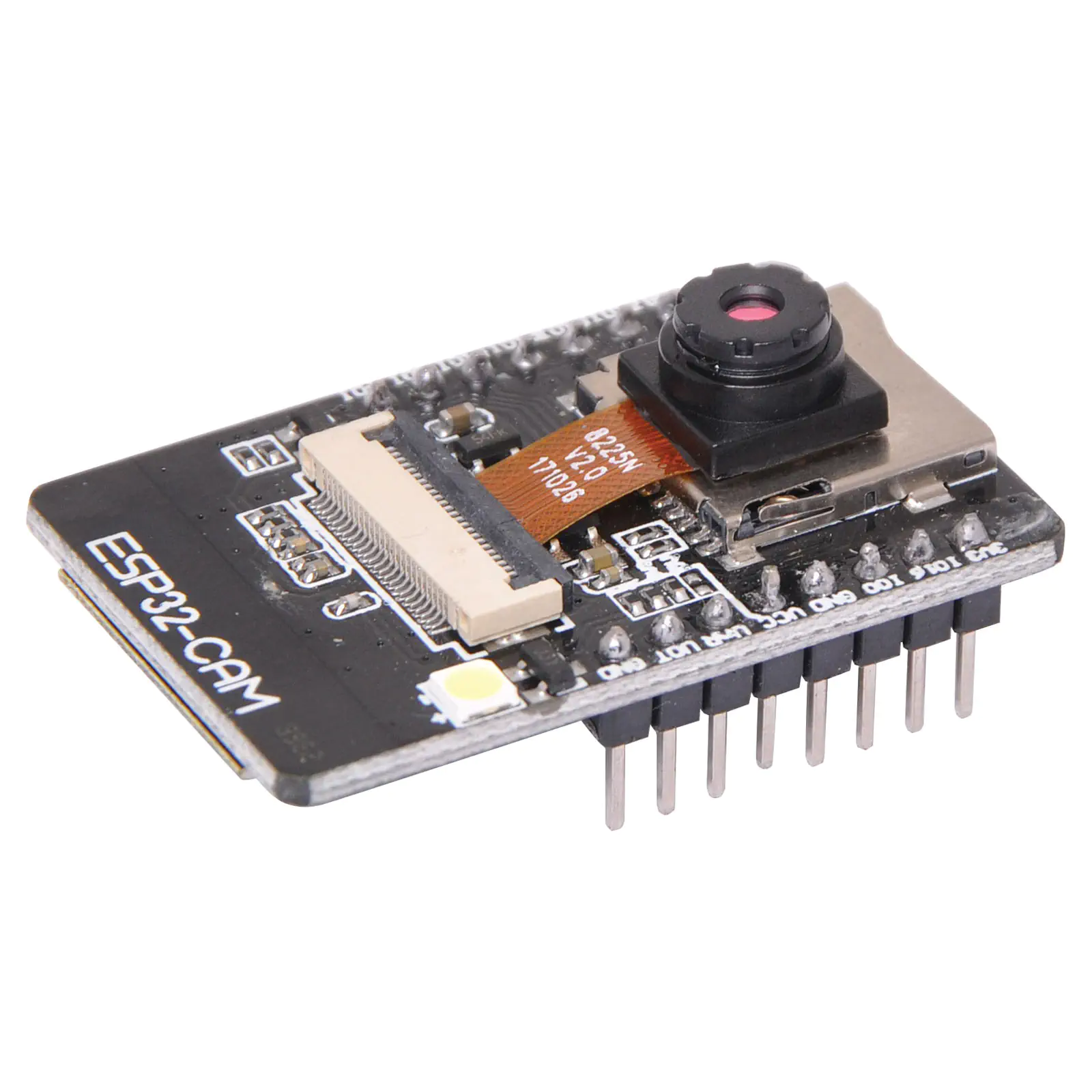

ESP32 WiFi-Bluetooth Camera Module Development Board

Name: ESP32 WiFi-Bluetooth Camera Module Development Board
SKU: Z6387
Price: 29.95 AUD
Availability: InStock

SKU: Z6387

A WIFI+ bluetooth dual-mode development board that uses PCB on-board antennas and cores based on ESP32 chips. It can work independently as a minimum system.

$29.95

All Prices Shown are (ex GST)

Bulk Pricing

ea	$29.95
2+	$26.95
4+	$24.50

i h

Overview
Details
Warranty

Overview

An Arduino compatible ESP32 WiFi-Bluetooth camera module development board that uses PCB on-board antennas and cores based on ESP32 chips. It can work independently as a minimum system. The board integrates WiFi, traditional bluetooth and BLE Beacon, with 2 high-performance 32-bit LX6 CPUs, 7-stage pipeline architecture, main frequency adjustment range 80MHz to 240MHz, on-chip sensor, Hall sensor, temperature sensor, etc. It's fully compliant with WiFi 802.11b/g/n/e/i and bluetooth 4.2 standards, it can be used as a master mode to build an independent network controller, or as a slave to other host MCUs to add networking capabilities to existing devices. The board can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is also an ideal solution for IoT applications.

Specifications:

Module model: ESP32-CAM

Package: DIP-16

Size: 27 x 40.5 x 4.5(±0.2)mm

SPI Flash: default 32Mbit

RAM: internal 520KB + external 4M PSRAM

Bluetooth: 4.2BR/EDR and BLE standards

Wi-Fi: 802.11 b/g/n/e/i

Support interface: UART, SPI, I2C, PWM

Support TF card: Maximum support 4G

IO port: 9

Serial port rate: default 115200 bps

Image output format: JPEG (only supported by OV2640), BMP, GRAYSCALE

Spectrum range: 2412 ~ 2484MHz

Antenna form: onboard PCB antenna , gain 2dBi

Security: WPA/WPA2/WPA2-Enterprise/WPS

Power supply range: 5V

Operating temperature: -20 °C ~ 85 °C

Storage environment: -40 °C ~ 90 °C, < 90%RH

Transmit Power:

802.11b: 17±2 dBm (@11Mbps)

802.11g: 14±2 dBm (@54Mbps)

802.11n: 13±2 dBm (@MCS7)

Receiving Sensitivity:

CCK, 1 Mbps : -90dBm, CCK

11 Mbps: -85dBm

6 Mbps (1/2 BPSK): -88dBm

54 Mbps (3/4 64-QAM): -70dBm

MCS7 (65 Mbps, 72.2 Mbps): -67dBm

Power Consumption:

Turn off the flash: 180mA@5V

Turn on the flash and adjust the brightness to the maximum: 310mA@5V

Deep-sleep: The lowest power consumption can reach 6mA@5V

Moderm-sleep: up to 20mA @ 5V

Light-sleep: up to 6.7mA @ 5V

Features:

Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
Low-power dual-core 32-bit CPU for application processors
Up to 240MHz, up to 600 DMIPS
Built-in 520 KB SRAM, external 4M PSRAM
Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
Supports OV2640 and OV7670 cameras with built-in flash
Supports for images WiFI upload
Supports TF card
Supports multiple sleep modes
Embedded Lwip and FreeRTOS
Supports STA/AP/STA+AP working mode
Supports Smart Config/AirKiss One-click distribution network
Supports for serial local upgrade and remote firmware upgrade (FOTA)
Supports secondary development
