This tiny and lightweight servo can rotate approximately 180 degrees (90 in each direction), and works just like the standard servo. You can use any servo code, hardware or library to control these servos.

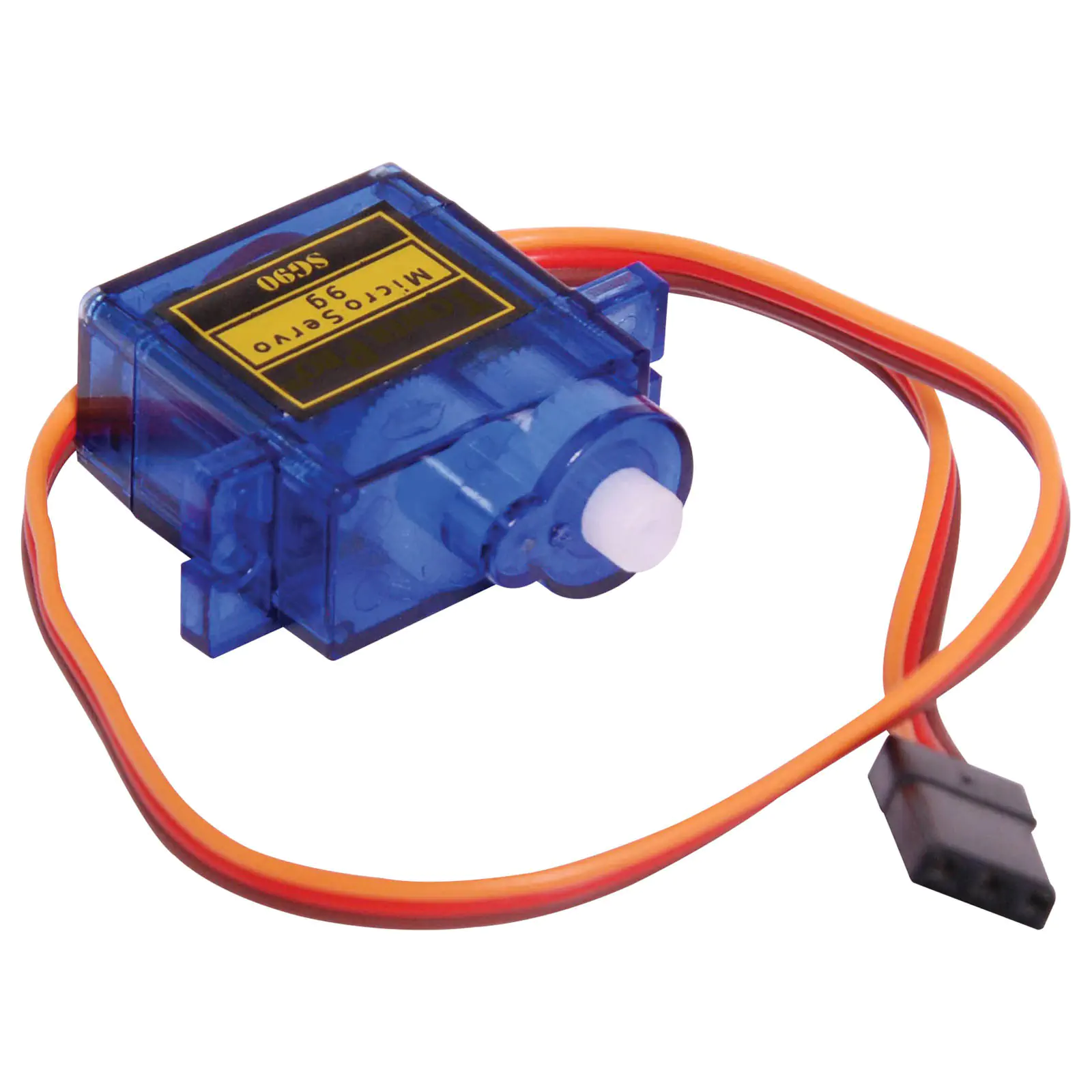

9g 180º 2 x 90º Plastic Servo Motor

Name: 9g 180º 2 x 90º Plastic Servo Motor
SKU: Z6392
Price: 9.05 AUD
Availability: InStock

SKU: Z6392

This tiny and lightweight SG90 style servo motor can rotate approximately 180 degrees (90 in each direction), and works just like the standard servo. You can use any servo code, hardware or library to control these servos.

$9.05

All Prices Shown are (ex GST)

Bulk Pricing

ea	$9.05
4+	$8.14
6+	$7.23

i h

Overview
Details
Warranty

Overview

This tiny and lightweight servo can rotate approximately 180° (90° in each direction), and works just like the standard servo. You can use any servo code, hardware or library to control these servos. Great for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places.

Note: Comes supplied with 3 sets of armatures and mounting hardware.

Specifications:

Weight: 9 g

Dimension: 22.2 x 11.8 x 31 mm approx.

Stall Torque: 1.8 kgf·cm

Operating Speed: 0.1 s/60 degree

Operating Voltage: 4.8 V (~5V)

Dead Band Width: 10 µs

Temperature Range: 0ºC – 55ºC

Details

Products specifications

Warranty	12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
