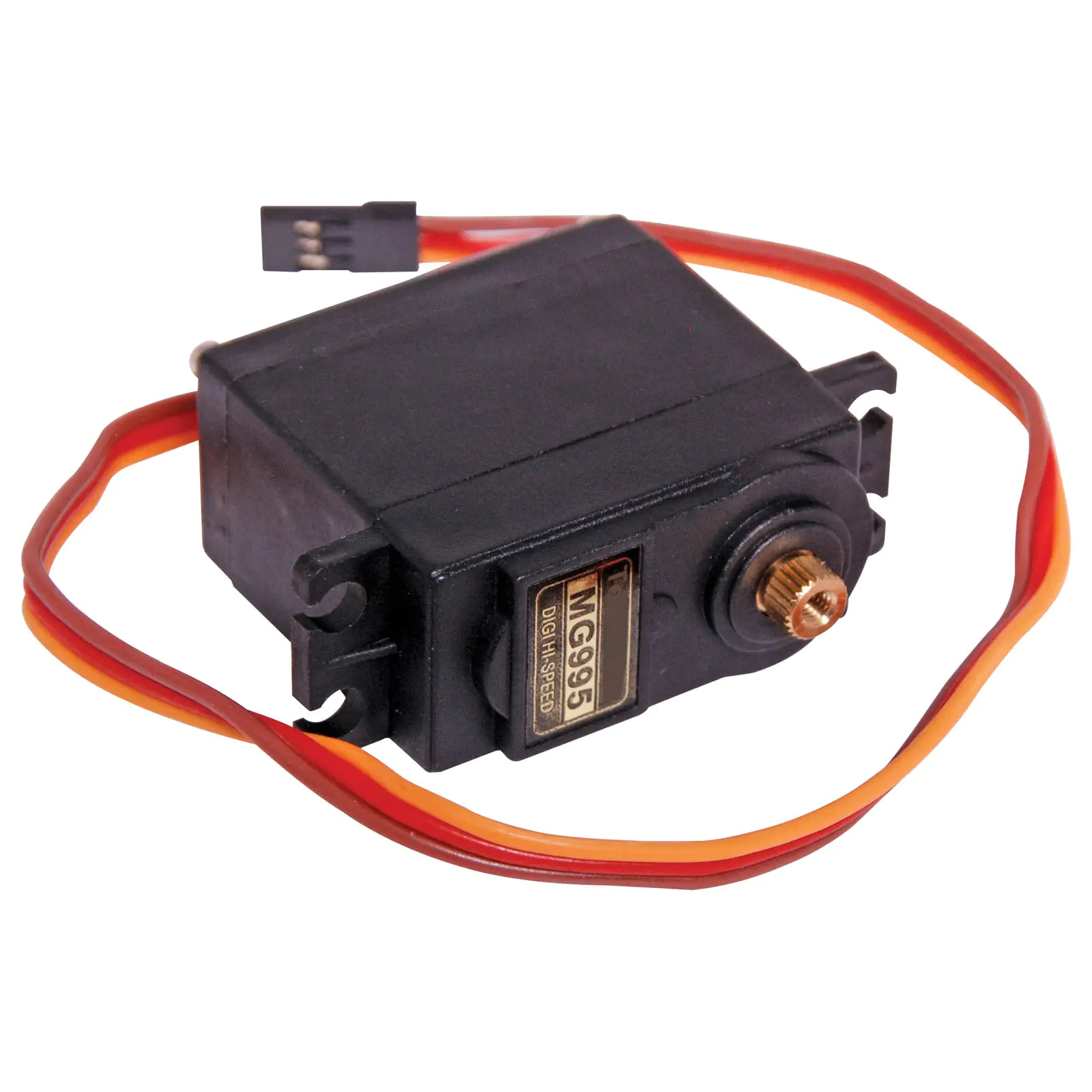

55g 360º Continuous Metal Servo Motor

SKU: Z6393
This tiny and lightweight MG995 style servo motor can rotate 360 degrees, and works just like the standard servo. You can use any servo code, hardware or library to control these servos.
$22.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $22.68
4+ $20.41
6+ $18.14
i h

Overview

The unit comes complete with 30cm wire and 3 pin ''S'' type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum and Hitec.
This high-speed standard servo can rotate 360 degrees continuous.

You can use any servo code, hardware or library to control these servos, so it's great for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places. The Z6393 Metal Gear Servo also comes with a selection of arms and hardware to get you set up nice and fast!





Specifications:



No-Load Speed (4.8V): 0.12±0.01 sec/60

No-Load Speed (6V): 0.11±0.01 sec/60

No-Load Current (4.8V): 220±20mA

No-Load Current (6V): 250±20mA

Stop Torque (4.8V): 7kg±0.1kg·cm

Stop Torque (6V): 9kg±0.1kg·cm

Stop Current (4.8V): ?2200±30mA

Stop Current (6V): ?3000ma

Stand-by Current: 4±1mA

Wire Length: 300mm

GearType: 4 grade plastic gear + metal motor teeth

Rudder Specifications: 25T

Rudder Type: One-word rocker arm cross arm disc flower arm

Control System: Change pulse width

Amplifier Type: Analog controller

Operating Angle: 360°

Angle Difference Between The Two Sides: = 3°

Back To Difference: = 1°

Neutral Position: 1500 µsec

Impulse Signal: = 5 µsec

Turn Around: Clockwise (in 1500?1000 µsec)

Pulse Width Range: 800→2200 µsec

Physical Dimension: 40.5 x 20 x 41mm

Weight: 42g
