PiicoDev Expansion Board for Raspberry Pi Pico

SKU: Z6419
The PiicoDev Expansion Board for Raspberry Pi Pico is a great way to start experimenting with Raspberry Pi Pico/RP2040. Use the on-board PiicoDev connector to quickly and easily connect with the PiicoDev family of sensor modules without soldering.
$7.23

All Prices Shown are (ex GST)

Bulk Pricing
ea $7.23
i h

Overview

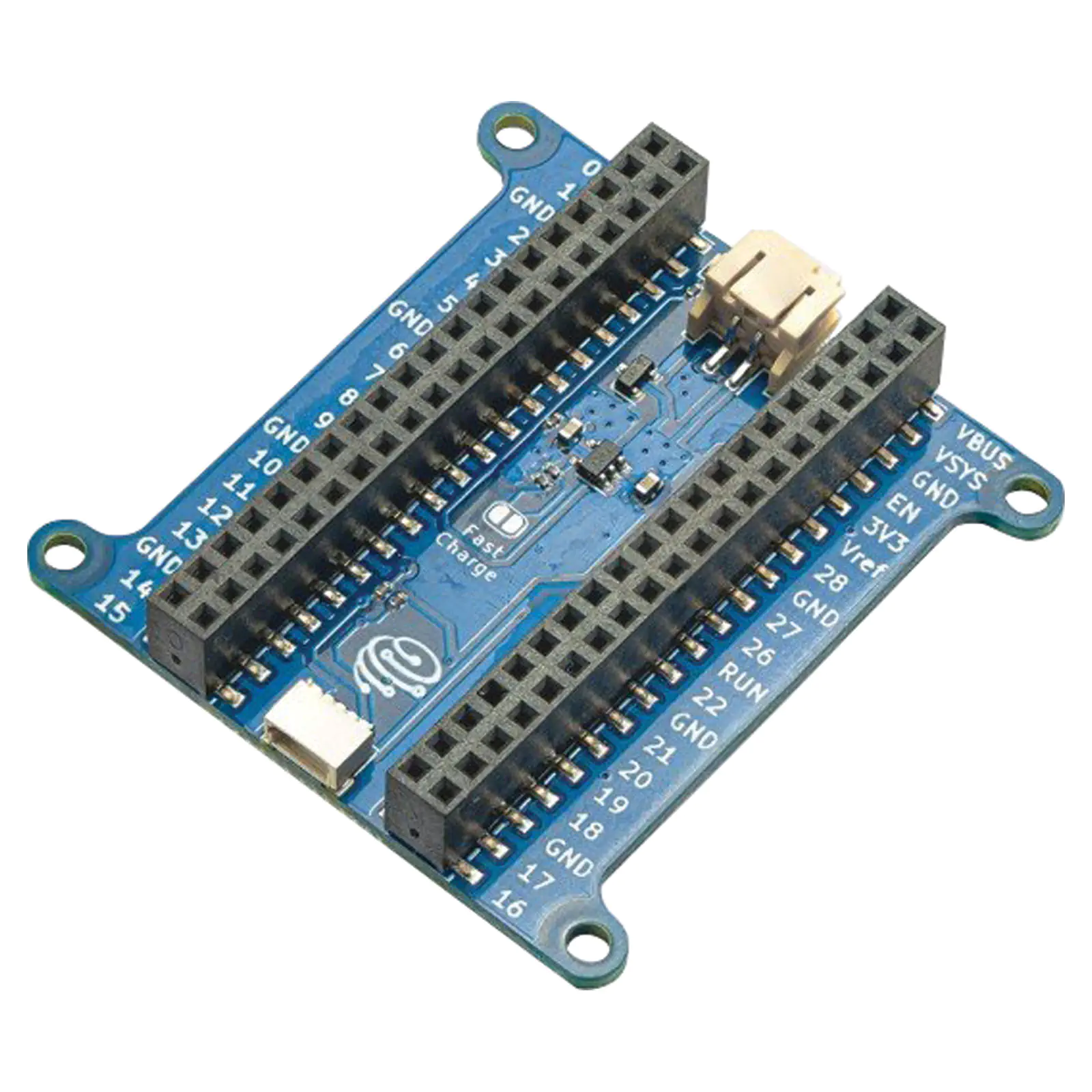

The PiicoDev Expansion Board for Raspberry Pi Pico is a great way to start experimenting with Raspberry Pi Pico/RP2040. Use the on-board PiicoDev connector to quickly and easily connect with the PiicoDev family of sensor modules without soldering. The Raspberry Pi Pico is sold separately - see accessories listed below.

Please Note: The PiicoDev is not supplied with header pins for the PICO itself. For suitable header pins, please see our P5430 40 Way Header Strip. This is easily snapped in half to form 2 x 20 pin lengths for your PICO.







Specifications:



Dimensions: 51x51mm

Mounting Holes: M2.5

Charge Current: approx 220mA / 440mA (when Fast Charge jumper is soldered)

PiicoDev connector: I2C0 (SCL:Pin 9, SDA:Pin 8)

PiicoDev connector pinout: 1 GND, 2 3.3V, 3 SDA, 4 SCL



Features:

  • Breaks out each Pico pin, with handy labels
  • Take your project on the go with on-board LiPo battery charging.
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)

Details

Products specifications

Warranty 12 Months
