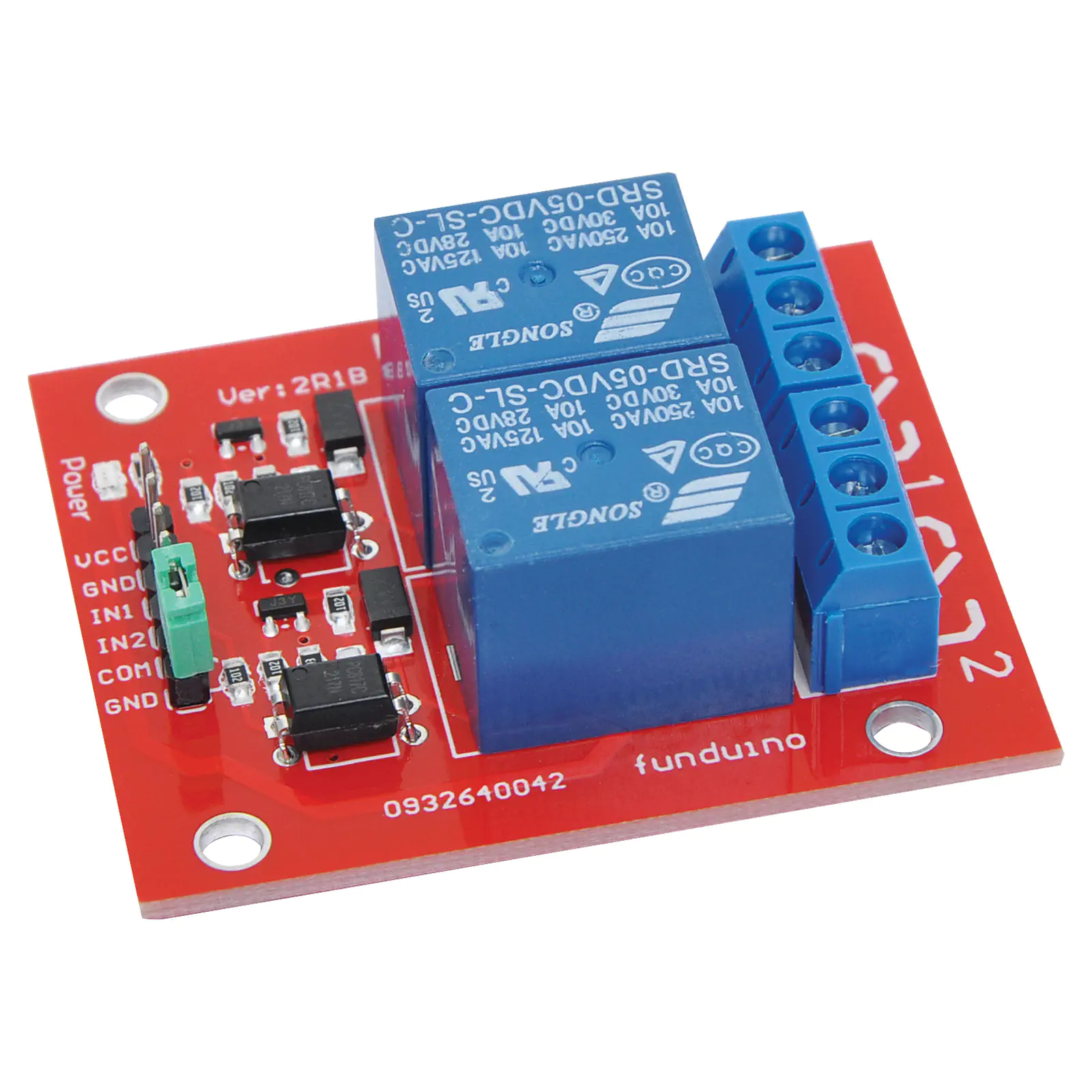

5V 2 Channel Relay Module

SKU: Z6422
This 5V relay module is suitable for integration with many types of micro control systems, including Arduino. Ideal for home appliance control. The module is perfect for common Arduino applications.
$7.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $7.23
2+ $6.50
4+ $5.77
i h

Overview

Ideal for home appliance control. 5V-12V TIL control signal suitable for controlling DC / AC signal. It can be controlled directly by Micro-controller (Raspberry Pi, Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic). Indication LED’s for Relay output status. 15-20mA Driver Current. Equipped with high-current relay, AC250V 10A ; DC30V 10A. This is a 2 channel relay module which can be used to activate up to 250V AC and 30V DC. This allows you to build in device control, operating remote lights or triggering systems when the module is supplied with a signal. This signal can come from a range of sources including most standard micro controllers. The module has 2 LEDs that inform of the state of the module.





Specifications:



Dimensions: 55L x 46W x 19Hmm

Minimum Operating Temperature: -40°C

Maximum Operating Temperature: 85°C

Pin Pitch: 2.54mm

Logic Level Voltage: 5V

Input DC Voltage: 5V

Mounting Hole Size: M3

Mounting Dimensions: 40/38mm

Type: Electromechanical

Channels: 2

AC Rating: 10A 250V a.c.

DC Rating: 10A 30V d.c.

Format: TTL Voltage
