The latest Raspberry Pi camera now with support for C/CS mount lenses so you can set your camera to whichever focal length you desire. 12.3 megapixel Sony® sensor. Ideal for home surveillance and monitoring projects.

12MP Camera Module to suit Raspberry Pi

Name: 12MP Camera Module to suit Raspberry Pi
SKU: Z6423
Price: 95.91 AUD
Availability: InStock

by: Raspberry Pi

SKU: Z6423

The latest Raspberry Pi camera now with support for C/CS mount lenses so you can set your camera to whichever focal length you desire. 12.3 megapixel Sony® sensor. Ideal for home surveillance and monitoring projects.

$95.91

All Prices Shown are (ex GST)

Bulk Pricing

ea $95.91

i h

Overview
Details
Warranty

Overview

The Raspberry Pi High Quality Camera is the latest camera accessory from Raspberry Pi. It offers higher resolution (12 megapixels, compared to 8 megapixels), and sensitivity (approximately 50% greater area per pixel for improved low-light performance) than the existing Camera Module v2, and is designed to work with interchangeable lenses in both C- and CS-mount form factors. Other lens form factors can be accommodated using third-party lens adapters.

The High Quality Camera provides an alternative to the Camera Module v2 for industrial and consumer applications, including security cameras, which require the highest levels of visual fidelity and/or integration with specialist optics. It is compatible with all models of Raspberry Pi computer from Raspberry Pi 1 Model B onwards, using the latest software release from raspberry pi.

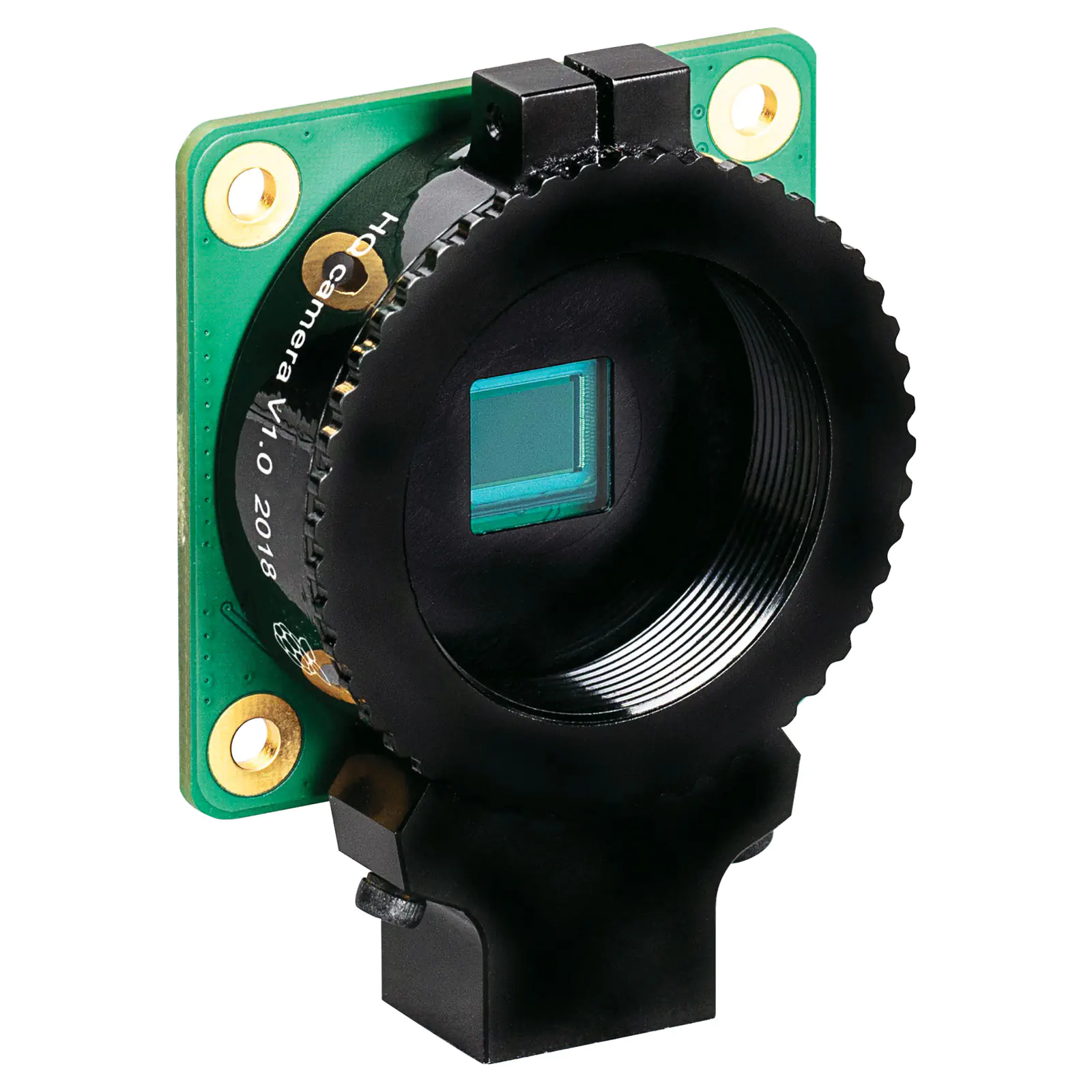

The package comprises a circuit board carrying a Sony IMX477 sensor, an FPC cable for connection to a Raspberry Pi computer, a milled aluminium lens mount with integrated tripod mount and focus adjustment ring, and a C- to CS-mount adapter.

Please note: The Lens is not included, it is for illustrative purposes only.

Specifications:

Sony IMX477R stacked, back-illuminated sensor, 12.3 megapixels, 7.9 mm sensor diagonal, 1.55 µm × 1.55 µm pixel size

Ouput: RAW12/10/8, COMP8

Back focus: Adjustable (12.5 mm–22.4 mm)

Lens standards: C-mount, CS-mount (C-CS adapter included)

IR cut filter: Integrated

Ribbon cable length: 200 mm

Tripod mount: 1/4”-20

Details
