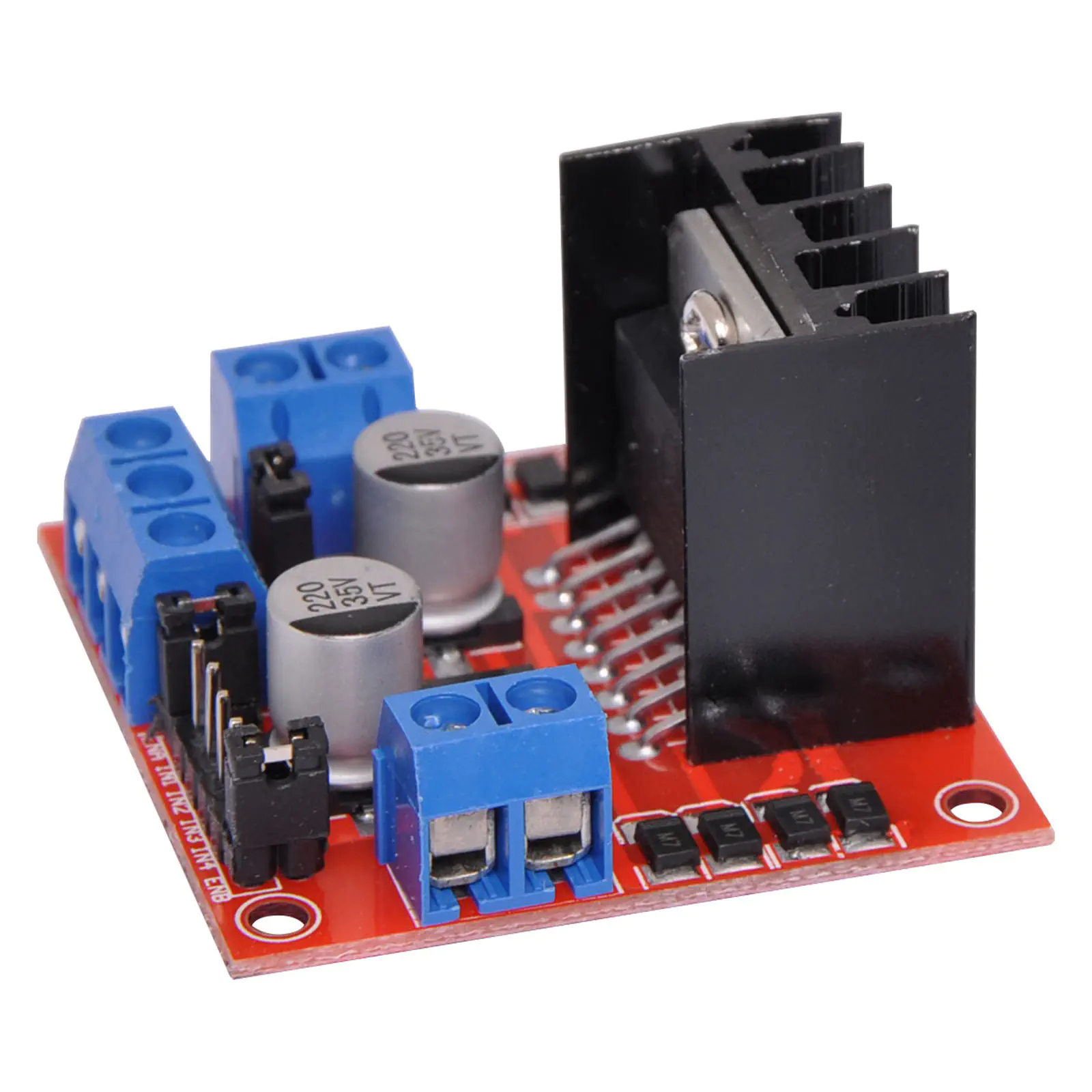

L298N Dual Motor Module for Arduino

SKU: Z6442
Uses an L298N H-Bridge designed to drive inductive loads, such as solenoids, DC and stepping motors. It can also drive two independent DC motors or 1 stepper motor at 2A continuous current per channel. Standard Arduino shield dimensions with analog and digital output headers. 5V input.
$15.41

All Prices Shown are (ex GST)
Bulk Pricing
ea $15.41
2+ $13.86
4+ $12.32
i h

Overview

Uses an L298N H-Bridge designed to drive inductive loads, such as relays, solenoids, DC and stepping motors. It can also drive two independent DC motors or 1 stepper motor at 2A continuous current per channel. 5V input.





Specifications:



Voltage Range: 5 – 35 VDC

Recommended Voltage Range: 7 – 12 VDC

Voltage Range (5V): 4.5 – 5.5 VDC

Max Current per Bridge: 2A

Max Power of Module: 25W

Driver Board: 54 x 44 x 28 mm



Features:

  • Drive 2 DC motors with speed and direction control
  • Drive 1 stepper motor
  • 5 – 35V motor voltage range
  • 2.5A peak current per channel (2A continuous)
