The TPA3118 60W Mono Digital Audio Power Amplifier Board is a high-performance audio amplifier designed for applications requiring compact size, low resistance, and high power output.

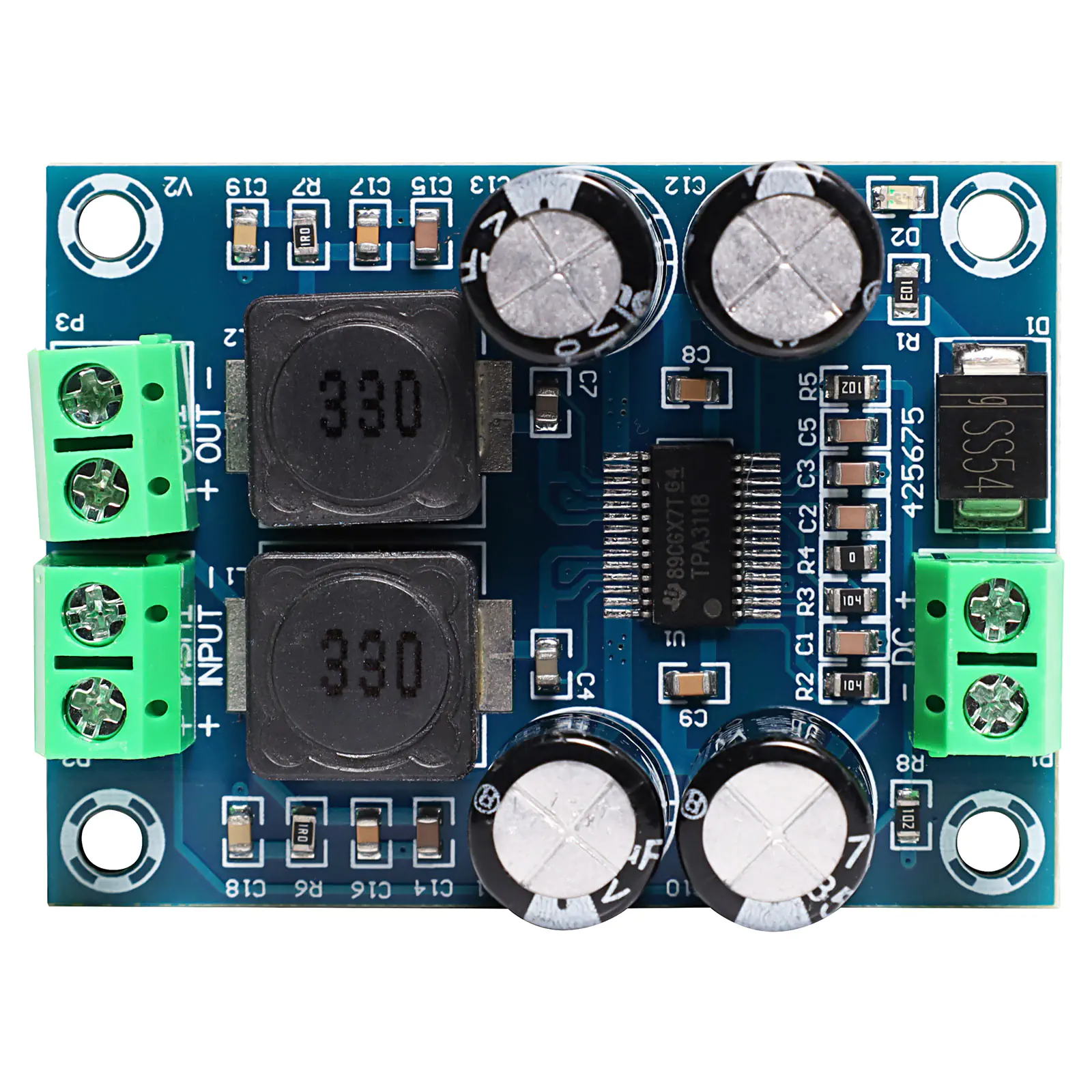

TPA3118 60W Mono Digital Audio Amplifier Board

Name: TPA3118 60W Mono Digital Audio Amplifier Board
SKU: Z6494
Price: 18.14 AUD
Availability: InStock

SKU: Z6494

The TPA3118 60W Mono Digital Audio Amplifier Board is a high-performance audio amplifier designed for applications requiring compact size, low resistance, and high power output.

$18.14

All Prices Shown are (ex GST)

Bulk Pricing

ea	$18.14
2+	$16.32
4+	$13.59

i h

Overview
Details
Warranty

Overview

The TPA3118 60W Mono Digital Audio Power Amplifier Board is a high-performance audio amplifier designed for applications requiring compact size, low resistance, and high power output. This model uses TI’s TPA3118 as the main chip, with a wide power supply range of DC10-24V.

In the case of 24V power supply, the load of 2 ohm audio can reach 60W output, and the 60W output is limited to 2 ohms, and the output power of 4 or 6 ohms will drop. , The circuit adopts PBTL mode so it can achieve low resistance and high power, and large internal resistance speakers can be connected in parallel to achieve high power output.

Specifications:

Enlargement type: Class D

Work efficiency: 93%

Chip type: TPA3118

Power supply voltage: DC10-24V

Input current: 3A recommended

Output power: 60W*1

Frequency response range: 35HZ-88KHZ

Number of channels: mono

Impedance matching: 2-6 ohms

Features:

Delivers up to 60W output with a 2-ohm load under a 24V power supply.
Output power decreases proportionally for 4-ohm or 6-ohm loads.
Supports a DC input range of 10-24V, ensuring flexibility for various power supply configurations.
Designed in PBTL mode, enabling support for low resistance and high-power output

Details

Products specifications

Warranty	12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
