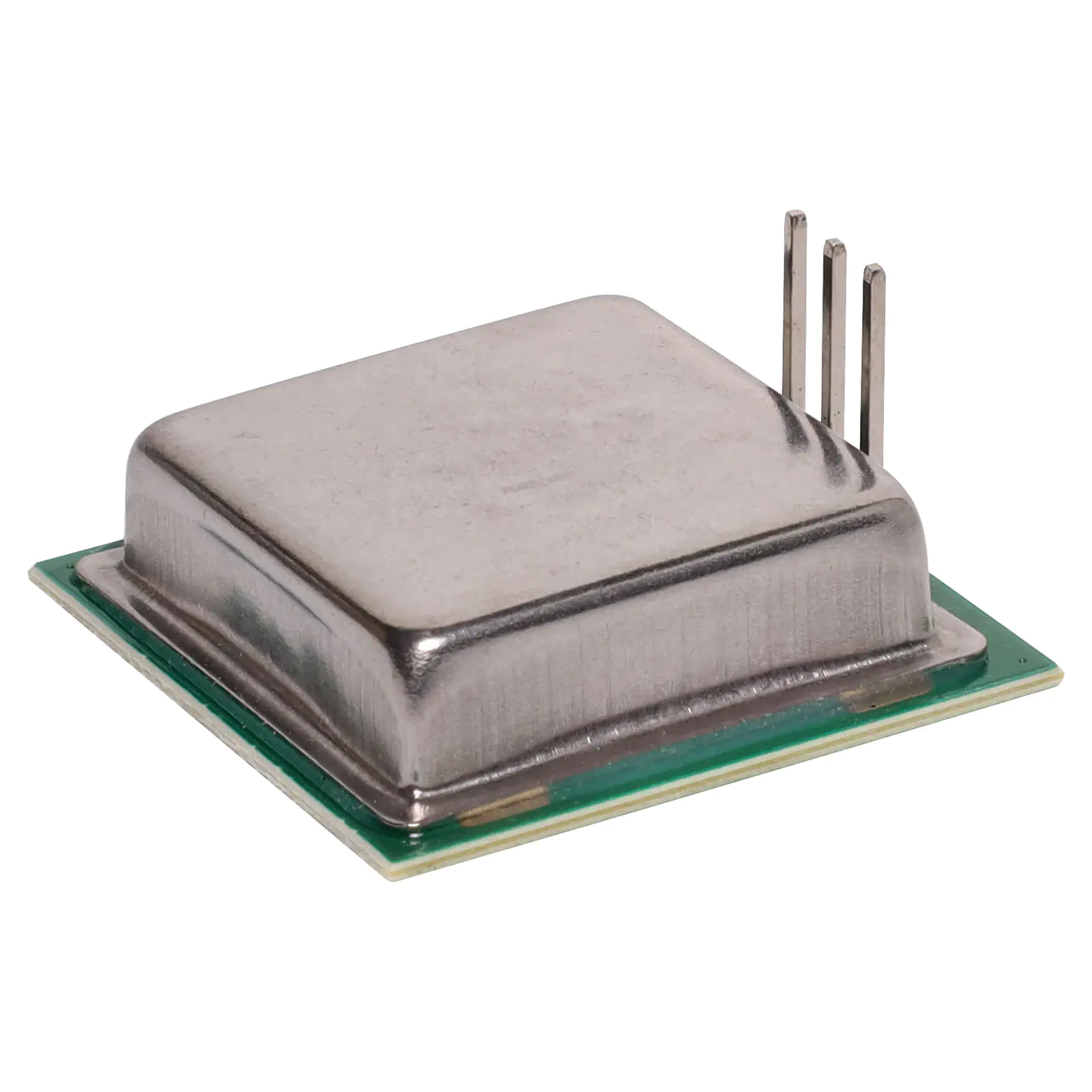

24GHz Millimeter Wave Radar CDM324 Sensor Module

SKU: Z6495
The CDM324 is a 24GHz Millimeter Wave Radar Sensor Module designed for reliable non-contact motion detectionand moving object detection.
$27.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $27.23
2+ $24.50
4+ $22.68
i h

Overview

The CDM324 is a 24GHz Millimeter Wave Radar Sensor Module designed for reliable non-contact motion detection and moving object detection. Utilizing advanced Doppler radar technology, it operates at a 24GHz transmitting frequency, offering high precision and robust performance in a variety of applications. Compact, efficient, and versatile, this module is ideal for use in commercial, industrial, and automation systems.





Specifications:



Transmitting Frequency: min: 24GHz typ: 24.125GHz :24.25GHz

Output Power:16dbm (typ)

Antenna pattern: horizontal direction: typ.80, vertical direction: typ.32

Side lobe suppression ratio: horizontal direction: typ.13dB, vertical direction: typ.13dB

Operating Temperature: -20 ~ 60°

Operating Current: typ: 30MA, :40MA

Operating Voltage: typ: 5.5V

Pulse Width: typ: 10US

IF Output: -300 ~ 300MV

Size: 25 x 25 x 7mm

Weight: 5g



Features:

  • Non-contact detection, moving object detecting.
  • This module's transmitting frequency is 24GHZ, can be widely applied in business, industries, word controlling etc.
  • Provide various frequency range standards: -UK,-F.
  • Advanced low consumption PHEMT oscillator.
  • Independent transmitting and receiving route, can get the big gain.
  • High sensibility, high flexibility, low cost, operating distance is 15m.
  • Single channel operation

Details

Products specifications

Warranty 12 Months
