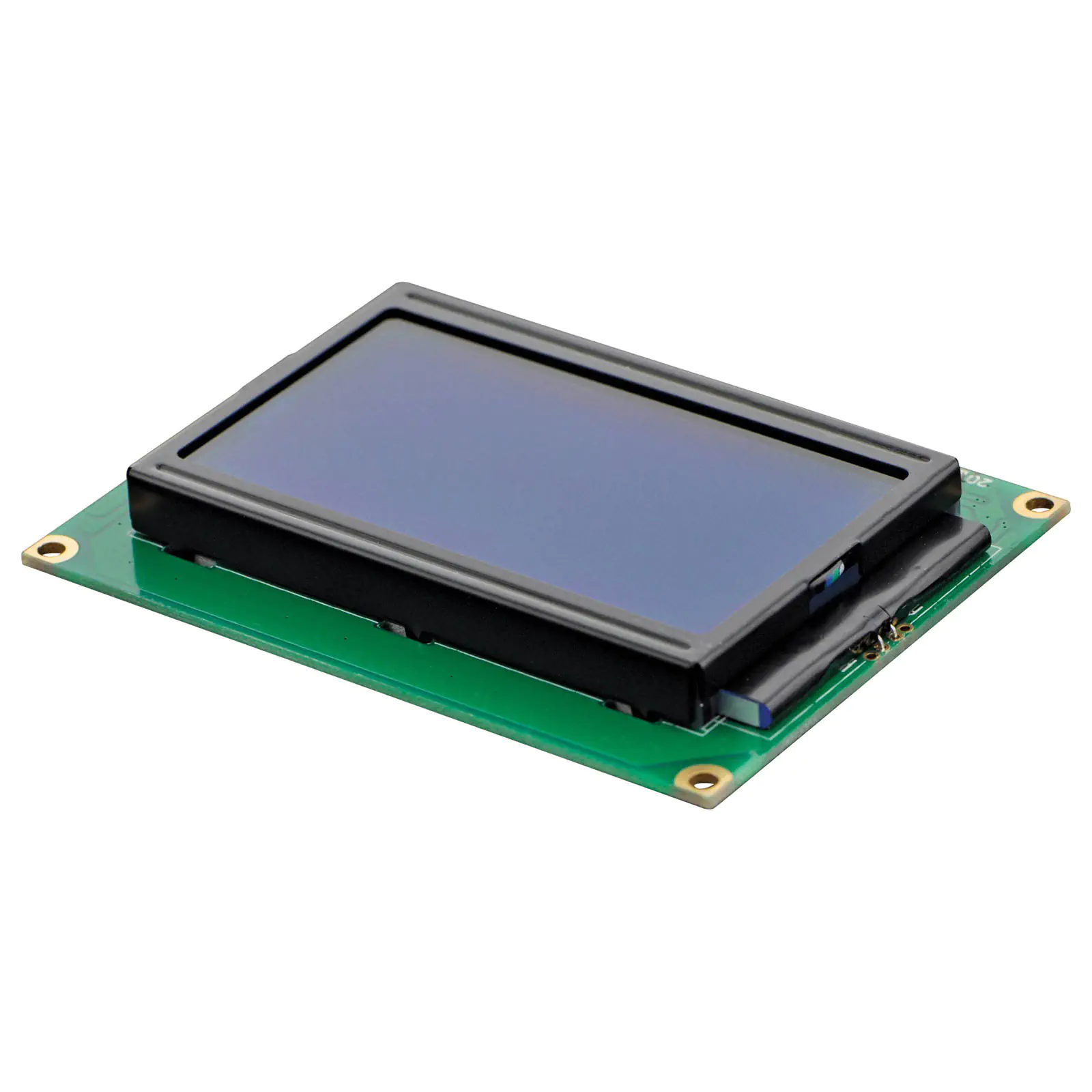

DFR0091 128 x 64 Arduino 3 Wire LCD Display Module

SKU: Z6502
This SPI LCD module uses a 128x64 liquid crystal display that supports Chinese characters, English characters and even graphics. It is suitable for interactive work with Arduino.
Save $14.55 $26.36 $40.91

All Prices Shown are (ex GST)
Bulk Pricing
ea
$26.36 $40.91
i h

Overview

This LCD module uses a 128x64 liquid crystal display that support Chinese characters, English characters and even graphics. It is suitable for interactive work with Arduino. It features a backlight control, parallel or serial control & contrast adjust. It can be connected to our interface shield via IDC6 socket and cables. The LCD is shipped in Parallel mode as default. The resistor R9 is used to set the interface mode. To switch to SPI mode, the R9 resistor needs to be moved to R10.

Check out this page for more information: 3 Wire Serial LCD Display Wikidocs Page





Specifications:



Power Supply: 4.5~5.5V

Microcontroller: ST7920

Resolution: 128×64

Display Colour: Blue lit with white character

View angle: 170 °C

LCD module: STN

Control interface: 8/4 bits Parallel (Default) or 3 bits serial (SPI)

Module size: 93x70x22mm (3.7x2.8x0.87")

Visuable size: 73x39mm (2.9x1.5")
