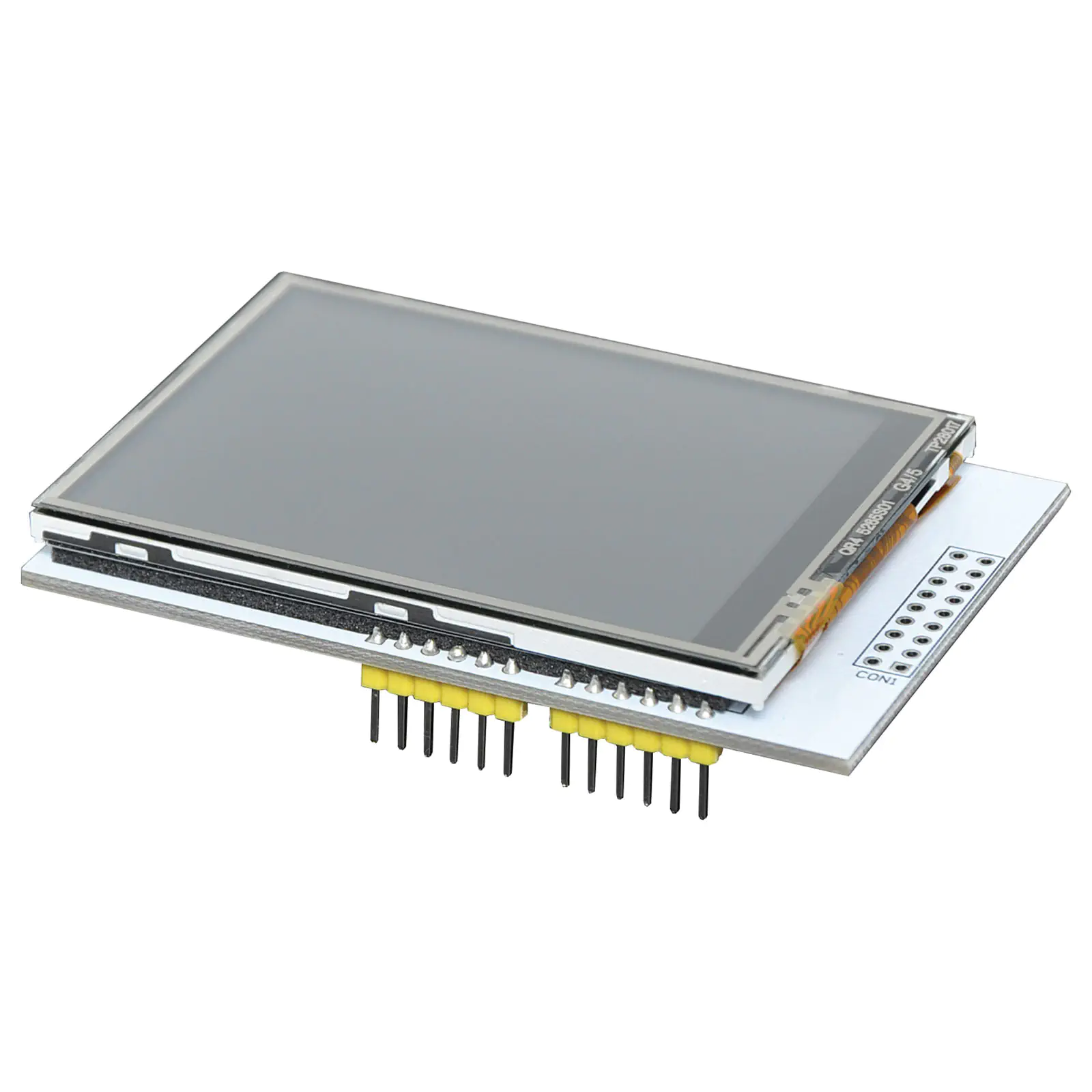

2.8" TFT Touch Shield for Arduino with Resistive Touch Screen

SKU: Z6510A
This SPI 2.8" TFT Touchscreen is designed to suitable for Arduino UNO/Mega2560. It can directly plug into the UNO/Mega2560 board without any wiring and soldering.
$32.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $32.68
2+ $29.95
4+ $26.14
i h

Overview

This 2.8” TFT touchscreen is designed to suitable for Arduino UNO/Mega2560. It can directly plug into the UNO/Mega2560 board without any wiring and soldering. Its library is compatible with Adafruit TFT touchscreen shield, which is easy to use. This display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen. 240x320 pixels with individual pixel control. Meanwhile, this module supports mini SD card to expand storage. The display is also supplied with a touch pen.





Specifications:



2.8" diagonal LCD TFT display

240x320 resolution

ILI9341 controller with built in video RAM buffer Works with any Arduino ''328 or Mega

5V compatible! Use with 3.3V or 5V logic

With white LED backlight.

Support Mini SD card extension

Dimensions: 78x52x16mm

Weight: 38g
