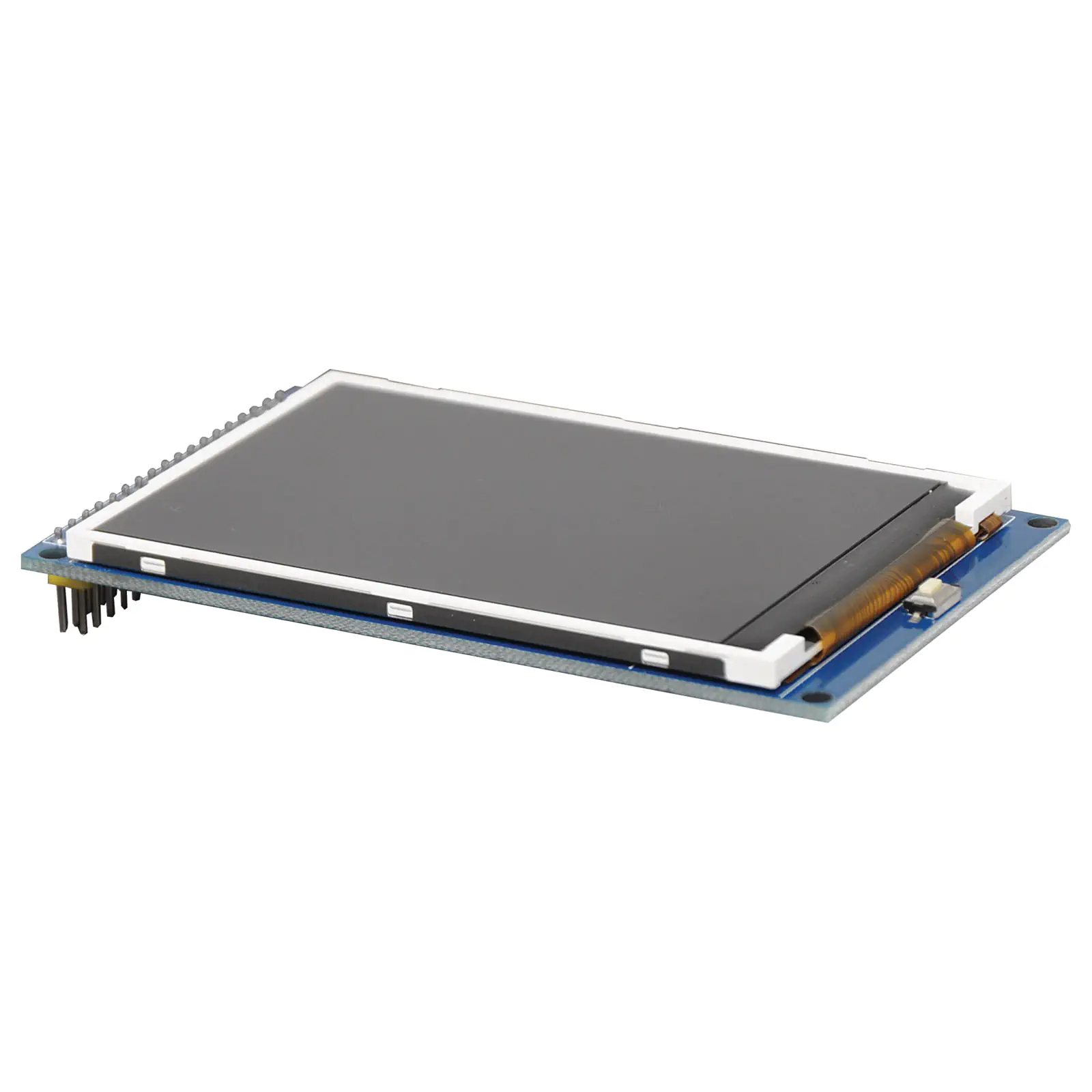

3.2” TFT LCD Shield For Arduino Mega2560

SKU: Z6527
A 480 x 320 SPI display shield for the Arduino Mega utilising the ILI9481 chipset. Ideal for projects requiring sensor monitoring. 5V/3.3V input.
$33.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $33.18
2+ $29.95
4+ $26.59
i h

Overview

A 480 x 320 display shield (non-touch) for the Arduino Mega utilising the ILI9481 chipset. Ideal for projects requiring sensor monitoring. 5V/3.3V input. This screen features 262K colour 480x 320 resolutions. It can be directly connected onto the Arduino Mega2560 board and also includes the SD card socket and SPI FLASH circuit.

For more information on this display, visit LCD Wiki here





Specifications:



Display Type: 3.2 inch a-si TFT LCD Module

Glass Type: TFT

Display Resolution: 480XRGBX320 Pixels

Back light: 6 chip HighLight white LEDs

Control IC: ILI9481

Interface: 16Bit parallel interface

PCB Module size: 89.92mmX54.25mm

LCD Area (WxHxT): 50.74mm x 78.35mm x 1.88mm

Active Area (WxH): 67.68mm x 45.12mm



Features:

  • Support Arduino Mega2560 Directly inserted
  • With Full-angle IPS TFT panel
  • On Board level conversion chip for 5V/3.3V MCU
  • Compatible with 3.3/5V operation voltage level
  • Compatible with Arduino-Series development Board.
  • Provided 12-examples with Arduino ,3-examples with STM32
  • With SD Card Socket
  • With SPI FLASH circuit
