Operating in the 2.4GHz frequency band, the nRF24L01+PA+LNA is a wireless transceiver module designed for long-range communication while maintaining low power consumption.

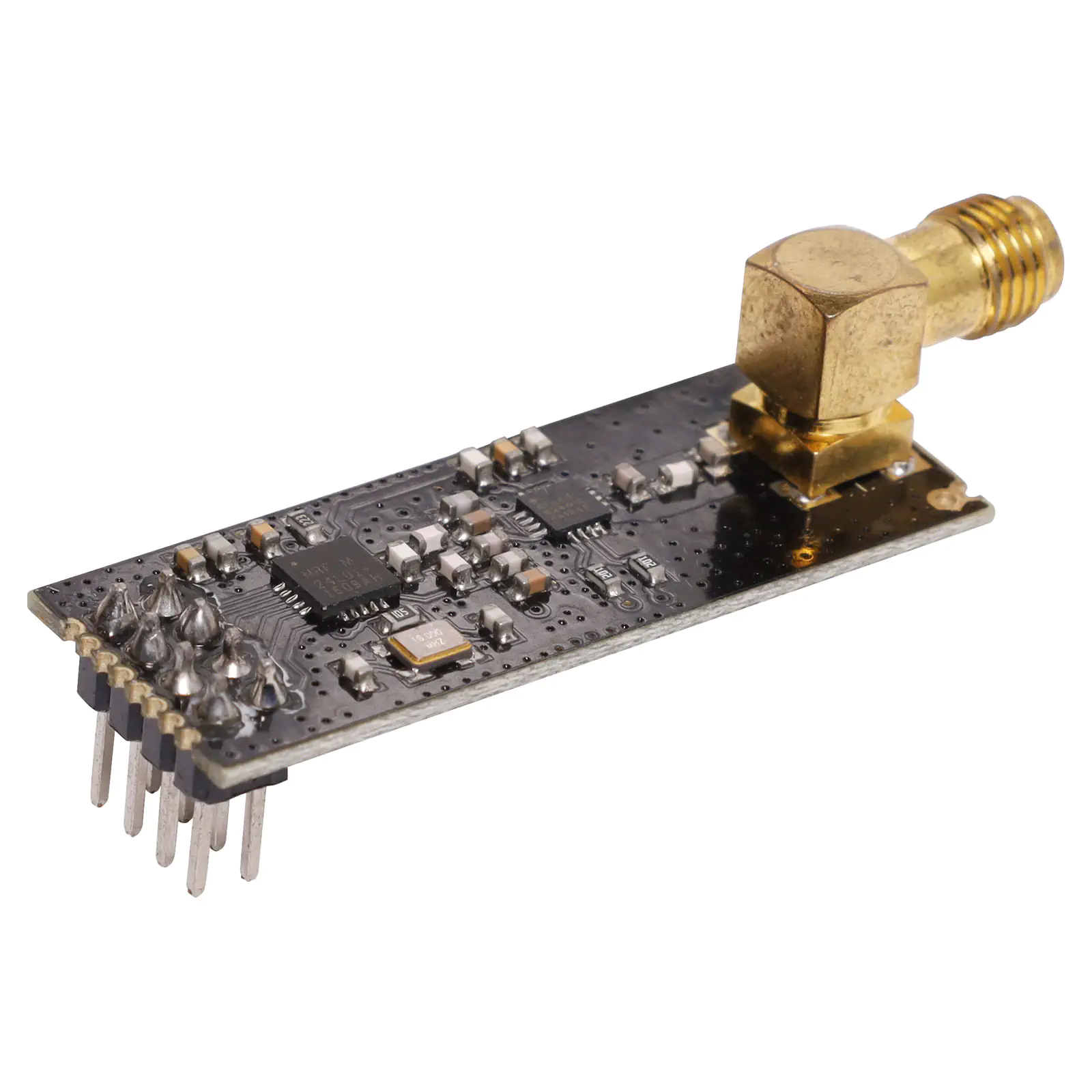

nRF24L01+ Wi-Fi PA LNA Wireless Module With Antenna

Name: nRF24L01+ Wi-Fi PA LNA Wireless Module With Antenna
SKU: Z6564
Price: 18.14 AUD
Availability: InStock

SKU: Z6564

Operating in the 2.4GHz frequency band, the nRF24L01+PA+LNA is a wireless transceiver module designed for long-range communication while maintaining low power consumption.

$18.14

All Prices Shown are (ex GST)

Bulk Pricing

ea	$18.14
2+	$16.32
4+	$14.50

i h

Overview
Details
Warranty

Overview

Operating in the 2.4GHz frequency band, the nRF24L01+PA+LNA is a wireless transceiver module designed for long-range communication while maintaining low power consumption. This makes it ideal for applications such as wireless sensor networks, remote robotic controls, and other wireless communication projects.

Featuring an onboard power amplifier (PA) and a low-noise amplifier (LNA), the module enhances both signal strength and sensitivity, significantly extending its communication range. The PA provides up to 20 dBm of output power, while the LNA offers a gain of up to 10 dB, ensuring reliable data transmission even in noisy environments. With support for data rates up to 2Mbps, this wireless module can achieve a maximum range of approximately 1100 meters in open space with a clear line of sight.

For simple powering and interfacing with other devices, see Z6563 adapter board.

Specifications:

Operating frequency: 2400MHz ~ 2524MHz

Modulation: GMSK

Receiver sensitivity: -95dbm

Operating voltage: 2.7V ~ 3.6V

Max current consumption when transmitting data: 115mA

Max current consumption when receiving data: 45mA

Gain of PA: 20 dB

Gain of LNA: 10 dB

Supply Voltage: Standard

Dissipation Module: Standard

Operating Temperature: -40 to 85°C

Details

Products specifications

Warranty	12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
