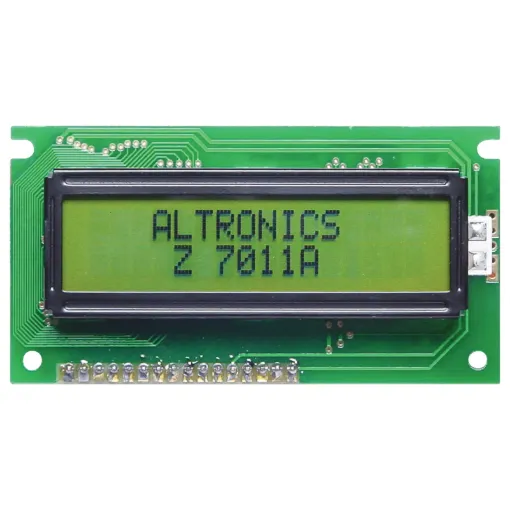

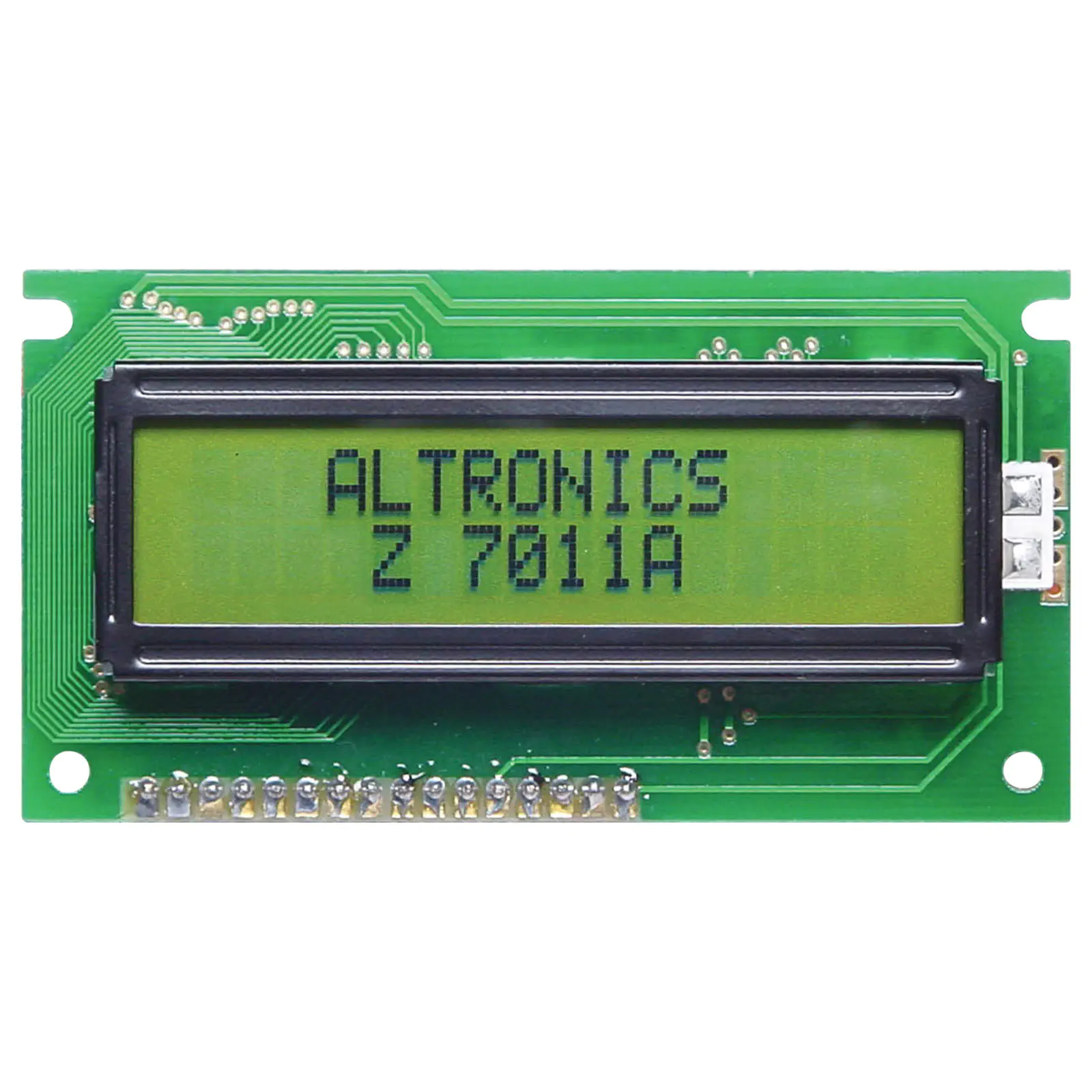

16x2 Wide Angle Green LED Backlit Alphanumeric LCD

SKU: Z7011A
This compact LCD module has 96 inbuilt ASCII characters as well as 92 special letters and 8 custom characters, which can be displayed on a 16 character by 2 line screen. The module will hold the current input on the display using its own built in memory,
$24.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $24.09
2+ $22.50
5+ $20.86
i h

Overview

This compact LCD module has 96 inbuilt ASCII characters as well as 92 special letters and 8 custom characters, which can be displayed on a 16 character by 2 line screen. The module will hold the current input on the display using its own built in memory, making it easy to drive.



Specifications

Module Size: 84 x 44 x 8.8mm

Viewing Area: 65 x 16mm

Character Size: 2.96 x 5.56mm

Contrast Ratio: O = 10

Number of Characters: 16 Characters by 2 lines

Supply Voltage: 5V DC

Power Supply Current: 132mA Typical

Viewing Angle: STN wide angle bottom view

Duty: 1/16

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Datasheet
PDF
.pdf
Controller Datasheet
PDF
