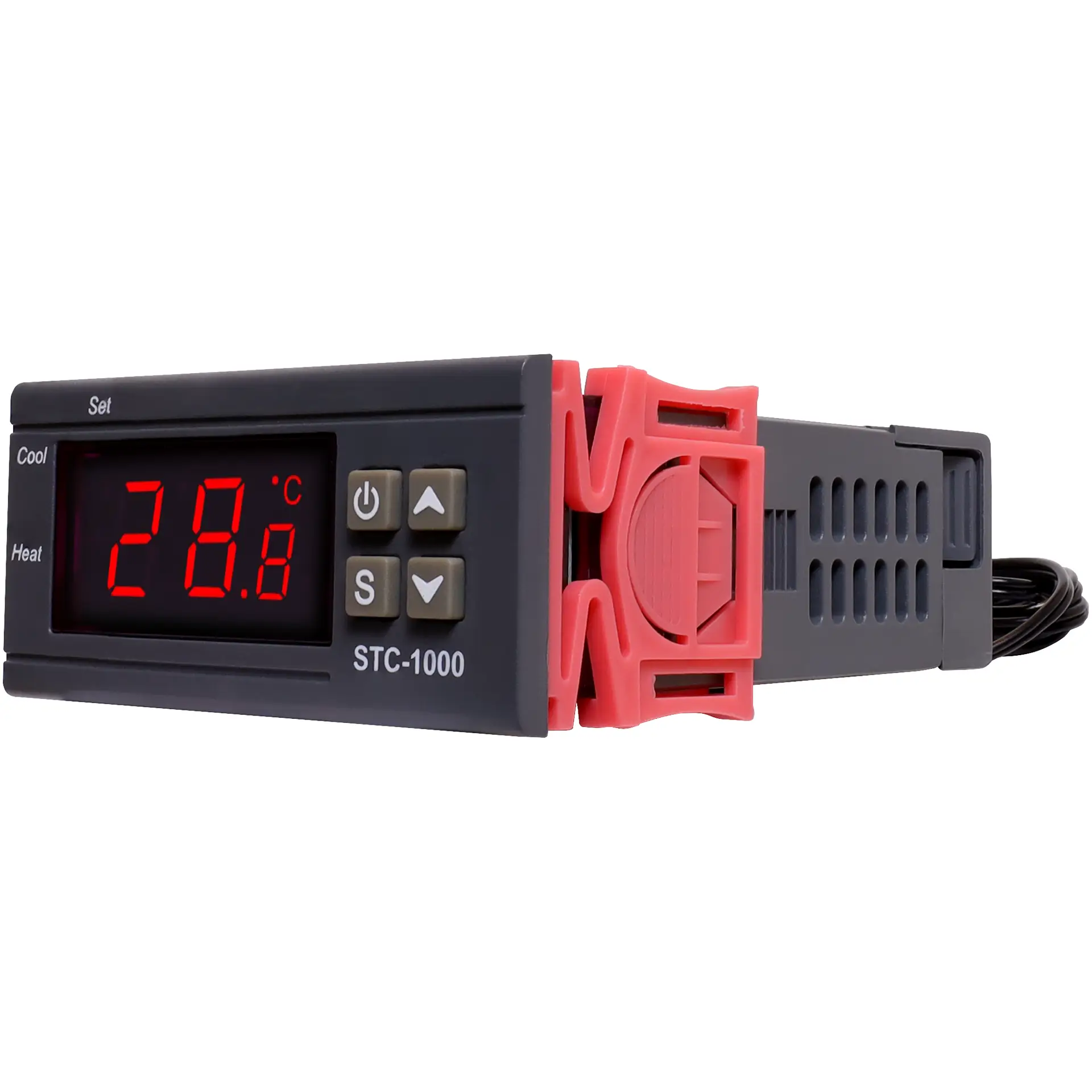

STC-1000 Digital Temperature Controller 110-240V AC

The STC-1000 temperature controller is a self contained heating / cooling controller that operates on 110-240V AC and controls either AC loads up to 10A max current. This controller is suitable many heating and cooling appliances such as heaters, refrigerators, freezers, fermentation tanks, home brew set ups, industrial equipment and other temperature activated systems.

It contains two independent output relays which can turn on or off as temperature increases or decreases past a set threshold (decided by the user). You can also program in a delay to avoid turning on and off too quickly and thus causing premature wear to connected equipment such as compressors.

All programmed settings are configured using the push buttons and display and are saved into an internal memory (preserved if power is lost).

The temperature is sensed by the included probe module which has a range between -50°C and 99.9°C. Cable length is 1m but can be extended using standard 2 core cabling.

Relays fitted are rated up to 120/240V AC @ 10A and 15V DC @ 10A. When a relay is energised a heat/cool LED is lit on the front panel depending on the threshold crossed.

In the box:
Temperature controller.
1m temperature probe.
User manual.

Features:

• Large 3-digit display of measured temperature
• Operates in both a heating and cooling mode of operation
• Programmable settings for temp set point, temp hysteresis, compressor delay and temperature calibration.
• Waterproof NTC temperature sensor has -50 to +99.9°C measurement range with ±1°C accuracy
• Over temperature and sensor failure audible and visual alarm
• Unit temperature reading can be calibrated
• Relays switch up to 120/240VAC @ 10A or 15VDC @ 10A

Specifications:

Working Voltage: 110-240V AC

Measuring Range: -50°C to 99°C

Measurement Accuracy: +/- 1°C

Resolution: 0.1°C

Power Consumption: Less than 3W

Sensor: NTC Sensor (1 meter)

Ambient Temperature: 0°C to 60°C

Relative Humidity: 20-85% (No Condensation)

Module Size: 75 x 34.5 x 85mm

Installation Opening: 71 x 29mm

Shell Material: ABS Flame-Retardant Plastic

Output Capacity: Refrigeration (10A/250VAC), Heating (10A/250VAC)
