Rocker Switches

Altronics rocker range includes switches for 240V AC and 12V and 24V DC applications with or without illumination. Rocker switches provide a low profile panel mount circuit switch in differing pole designs, including SPST, DPST, SPDT etc.

View as Grid List
Sort by
Display per page
Compatible with P 0690, P 0694 USB chargers and S 1020 marine rocker switch. Each modular section dove-tails together for as many as desired.
P0687

Single Switch Style Mounting Fascias

Each modular section dove-tails together for as many as desired. Suits most Contura style switches.
$2.05
i h
Switch Type: SPDT (Centre Off Alternate) Contact Rating: 10A @ 250V AC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute
S3232

SPDT Heavy Duty Centre Off Alternate Rocker Switch

A narrow profile heavy duty SPDT rocker switch for AC/DC switching use. Centre Off. Alternate action both ways.
$5.41
i h
Switch Type: SPDT (Centre Off Momentary) Contact Rating: 10A @ 250V AC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute
S3236

SPDT Heavy Duty Centre Off Momentary Rocker Switch

A narrow profile heavy duty SPDT rocker switch for AC/DC switching use. Centre Off. Momentary action both ways.
$5.91
i h
Contact Rating: 6A @ 250V AC Panel Cutout: 19.2 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20mR Insulation Resistance: >1000MR Dielectric Strength: >1500V 1 Minute >3000V Between Poles
S3215

SPDT Mini Alternate Rocker Switch

A miniature rocker switch with SPDT alternate on/off action. Ideal for a compact panel mount power switch in automotive and industrial applications.
$2.05
i h
Switch type: SPDT rocker switch Contact rating: 3A @ 240V AC Electrical life: 10,000 cycles Mechanical life: 30,000 cycles Panel cutout: 8.5 x 13.2 mm Panel thickness: 0.75 - 2mm Contact resistance: 20m&#937 max. Insulation resistance: >1000M ohm Dielectric strength: >1500V AC 1 minute
S3201

SPDT Ultra-Mini Alternate Rocker Switch

A miniature SPDT rocker switch for use on small or low profile equipment. 3A @ 240V ac rated. Only 10.5mm wide and 15mm high.
$1.50
i h
A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems. Blue illumination.
S1027

SPST Blue Illuminated IP66 Marine 12V/24V Rocker Switch

A marine/boat contura style flat alternate rocker switch suitable for use in 12V DC or 24V DC power systems. Blue illumination.
$14.50
i h
A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems. Green illumination.
S1029

SPST Green Illuminated IP66 Marine 12V/24V Rocker Switch

A marine/boat contura style flat alternate rocker switch suitable for use in 12V DC or 24V DC power systems. Green illumination.
$14.50
i h
Switch Type: SPST Contact Rating: 10A @ 250V AC LED (S 3226): Red, 1.8V DC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute
S3224

SPST Heavy Duty Alternate Rocker Switch

A narrow profile heavy duty SPST rocker switch for AC/DC switching use. Complies to EN/IEC61058 Class 2 750°C rating, suitable for use in swimming pool equipment.
$2.41
i h
Switch Type: SPST Contact Rating: 10A @ 250V AC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute
S3234

SPST Heavy Duty Momentary Rocker Switch

A narrow profile heavy duty SPST rocker switch for AC/DC switching use. Momentary action one way.
$5.41
i h
Switch type:SPST Contact rating:10A @ 250V AC LED (S 3226):Red, 1.8V DC Panel cutout:27.6 x 13.8 mm Electrical life:20,000 cycles Mechanical life:100,000 cycles Contact resistance:<50m&Omega; Insulation resistance:>100M&Omega; Dielectric strength:>1500V AC 1 minute
S3225

SPST Heavy Duty Red Alternate Rocker Switch

A narrow profile heavy duty SPST rocker switch for AC/DC switching use. Red marker on actuator. Complies to EN/IEC61058 Class 2 750°C rating, suitable for use in swimming pool equipment.
$2.82
i h
Switch Type: SPST Contact Rating: 10A @ 250V AC Neon: Red, 240VAC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute
S3228

SPST Heavy Duty Red Illuminated Rocker Switch

A narrow profile heavy duty alternate action SPST rocker switch for AC/DC switching use. Red translucent actuator with 240V AC neon indicator.
$4.14
i h
Switch Type: SPST Contact Rating: 10A @ 250V AC LED (S 3226): Red, 1.8V DC Panel Cutout: 27.6 x 13.8 mm Electrical Life: 20,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: <50mR Insulation Resistance: >100MR Dielectric Strength: >1500V AC 1 Minute
S3226

SPST Heavy Duty Red LED Dot Rocker Switch

A narrow profile heavy duty alternate action SPST rocker switch for AC/DC switching use. Round red LED on actuator.
$3.91
i h
Switch type: SPST Contact rating: 10A @ 250V AC Panel cutout: 23 x 11.5 mm Panel thickness: 0.75 - 1.25mm max. Electrical life: 10,000 cycles Mechanical life: 100,000 cycles Contact resistance: <20m&#937; Neon: Red, 240V AC Insulation resistance:
S3229

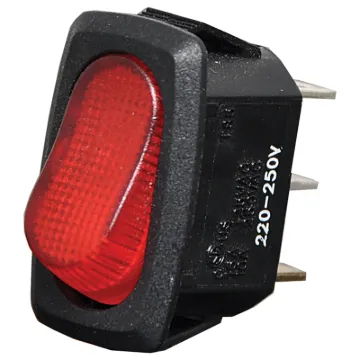

SPST Heavy Duty Slim Red Illuminated Rocker Switch

A narrow profile heavy duty SPST rocker switch for AC/DC switching use. Red translucent actuator with 240V AC neon indicator.
$5.18
i h
A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems.
S1032

SPST IP67 Heavy Duty Marine 12V/24V Rocker Switch

A marine/boat contura style alternate flat rocker switch suitable for use in 12V DC or 24V DC power systems.
$9.95
i h
Switch type: SPST alternate rocker switch Contact rating: 20A @ 12V DC Neon: Red 12VDC
S3185

SPST LED 12V 20A IP65 Weatherproof Rocker Switch

A IP65 waterproof rated low voltage (12V DC) SPST alternate rocker switch with red LED illumination. Ideal for use in panel controls exposed to the elements or in marine and automotive applications. UL and ROHS approved.
$7.27
i h
Designed for use in low voltage applications, this LED illuminated panel mount rocker switch is an SPST alternate type.
S3248

SPST Low Voltage Red LED Rocker Switch

Designed for use in low voltage applications, this LED illuminated panel mount rocker switch is an SPST alternate type.
$5.18
i h
Designed for use in low voltage applications, this LED illuminated panel mount rocker switch is an SPST alternate type.
S3247

SPST Low Voltage Slim Red LED Rocker Switch

Designed for use in low voltage applications, this LED illuminated panel mount rocker switch is an SPST alternate type.
$3.64
i h
Switch Type: SPST rocker switch Contact Rating: 6A @ 250V AC Panel Cutout: 19.2 x 6.8 mm Electrical Life: 10,000 Cycles Mechanical Life: 50,000 Cycles Contact Resistance: <20mR Insulation Resistance: >1000MR Dielectric Strength: >1500V AC 1 Minute
S3202

SPST Mini Alternate Rocker Switch

Switch Type: SPST rocker switch Contact Rating: 6A @ 250V AC Panel Cutout: 19.2 x 6.8 mm Electrical Life: 10,000 Cycles Mechanical Life: 50,000 Cycles Contact Resistance: <20mR Insulation Resistance: >1000MR Dielectric Strength: >1500V AC 1 Minute
$2.23
i h
Switch type: SPST rocker switch Contact Rating: 6A @ 250V AC Panel Cutout: 19.2 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20mR Insulation Resistance: >1000MR Dielectric Strength: >1500V 1 Minute >3000V Between Poles
S3210

SPST Mini Alternate Rocker Switch

Switch type: SPST rocker switch Contact Rating: 6A @ 250V AC Panel Cutout: 19.2 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20mR Insulation Resistance: >1000MR Dielectric Strength: >1500V 1 Minute >3000V Between Poles
$2.05
i h
Same as the S3202 panel mount rocker switch but supplied with a 170mm fly lead and 2-pin header plug fitted dor quick and easy installation into a project.
SA3202

SPST Mini Rocker Panel Mount Switch with Flylead

Same as the S3202 panel mount rocker switch but supplied with a 170mm fly lead and 2-pin header plug fitted dor quick and easy installation into a project. Alternate action.
$4.95
i h
Contact rating: 6A @ 250V AC Panel cutout: &#8776;19 x 13mm Panel thickness: 0.7-3mm Electrical life: 10,000 cycles Mechanical life: 30,000 cycles Contact resistance: <20m&#937; Insulation resistance: >1000M&#937; Dielectric strength: >1500V AC 1 minute >3000V AC between poles
S3214

SPST Momentary On/Off Mini Rocker Switch

A miniature rocker switch with SPST momentary on action. Ideal for a compact panel mount power switch in automotive and industrial applications.
$3.05
i h
A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems. Orange illumination.
S1028

SPST Orange Illuminated IP66 Marine 12V/24V Rocker Switch

A marine/boat contura style flat alternate rocker switch suitable for use in 12V DC or 24V DC power systems. Orange illumination.
$14.50
i h
A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems. Red illumination.
S1026

SPST Red Illuminated IP66 Marine 12V/24V Rocker Switch

A marine/boat contura style flat rocker switch suitable for use in 12V DC or 24V DC power systems. Red illumination.
$14.50
i h
Switch Type: SPST Contact Rating: 6A @ 250V AC LED: Red, 1.8V DC Panel Cutout: 19 x 13mm Electrical Life: 10,000 Cycles Mechanical Life: 15,000 Cycles Contact Resistance: <20mR Insulation Resistance: >1000MR Dielectric Strength: >1500V 1 Minute >3000V Between Poles
S3220

SPST Red LED Mini Alternate Rocker Switch

A miniature SPST rocker switch. Ideal for a compact panel mount power switch in automotive and industrial applications.
$3.05
i h
Switch Type: SPST Alternate rocker switch Indicator: Red LED Contact Rating: 6A @ 250V AC Panel Cutout: 20mm&Oslash Panel Thickness: 6mm Max. LED indicator Power Requirements: 1.85V dc, 10mA. NOTE: The LED Terminals are the two smaller terminals.
S3190

SPST Red LED Round (Square Facia) Rocker Switch

A stylish round panel mount SPST alternate rocker switch with a square facia and red LED. Low profile design protrudes just 3.5mm from the panel surface. Contact rating of 10A @ 250V AC.
$3.73
i h
