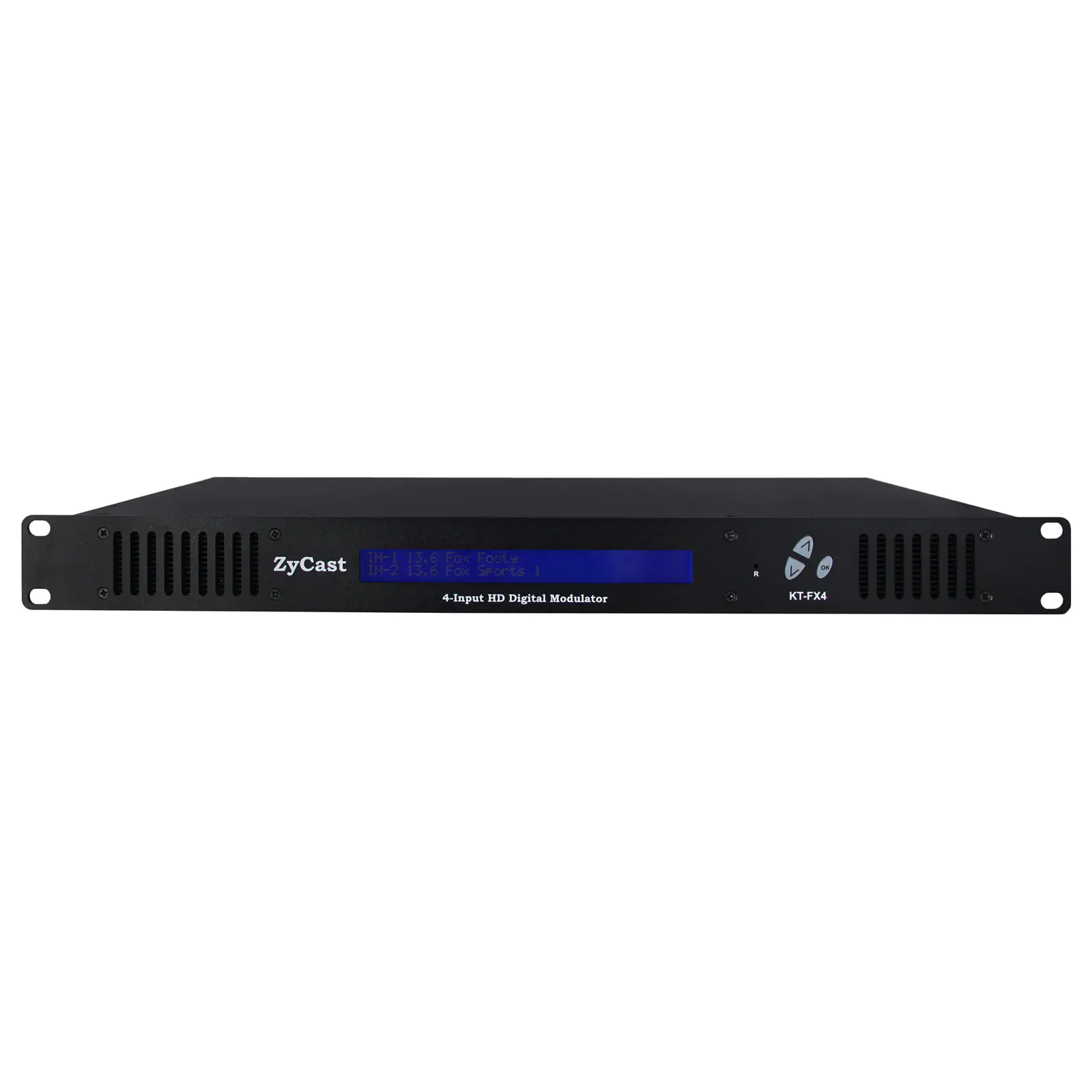

KT-FX4 HDMI RF 4 Channel DVB-T HD Quad Digital Modulator

by: digi-MOD
SKU: A1164
Developed specifically for the commercial AV distribution market and the only Foxtel approved modulator on the market. Encodes four HDMI signals to any DTV channels, providing an easy way to distribute multiple high definition AV signals throughout buildings.
$5,018.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $5,018.18
i h

Overview

The Digi-MOD KT-FX4 is developed specifically for the commercial AV distribution market and the only Foxtel approved modulator on the market. Encodes four HDMI signals to any DTV channels, providing an easy way to distribute multiple high definition AV signals throughout buildings. Pre-programmed with a Foxtel-approved channel listing and with an output level of 90dB and MER of >38dB, the KT-FX4 makes use of video compression via H.264 AVC (MPEG-4) and audio compression via MPEG Layer II/AAC to distribute a crystal-clear HD picture over new or existing coaxial cable. Can be programmed via front panel or easy to use web based user interface.



Features:

  • Converts HD video and audio signals to digital COFDM DVB-T channel
  • Foxtel approved
  • Optimised 24mbps stream ideal for live sports viewing
  • Pre-programmed Foxtel channel listing
  • 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  • Full function front LCD for adjustments
  • Web GUI interface for easy programming
  • 2K/8K carriers
  • Internal fan cooling system for long life span
  • 1RU rack mountable
  • Distributes on any new or existing RF cable
  • Built in IR control allows TV locations to have IR control of AV equipment





Specifications:



Input:

Number of inputs: 4

Video Input: HDMI

Video Input Level: 0.7 - 1.4V (Peak to Peak)

Video mode: PAL

Audio input: Stereo

Audio input level: 0.4 to 4.8V (Peak to Peak)



Output:

Frequency Range: 177.5 MHz to 816.5 MHz (6 to 69)

HDMI loop through: No

Output level: 85dB

MER: >38dB



Delayed Audio:

Delayed audio output: No



Modulation:

Video Resolution: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Video compression: H.264 AVC (MPEG-4)

Audio compression: MPEG Layer II / AAC

Video bitrate SD: 1Mbps to 9Mbps (Default 5Mbps)

Video bitrate HD: 12Mbps to 24Mbps (Default 24Mbps)

LCN: AU (APN)

Carrier: 2K/8K

GI: 1/32

FEC: 7/8

Constellations: 16 QAM/64 QAM



Management / Programming:

Front LCD: Yes

Web GUI: Yes



General:

Power supply type: External

Power supply: 12VDC 1.5AMP

Redundant PSU: No

Operating temperature: 0°C to +45°C

Storage temperature: 0°C to +60°C

Dimensions: 482mm x 208mm x 44mm

Weight: 2.5kg

Details

Products specifications

Warranty 12 Months
Audio Visual
Type Digital Modulators

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Brochure
PDF
.pdf
Quick Install Guide
PDF
