NEW

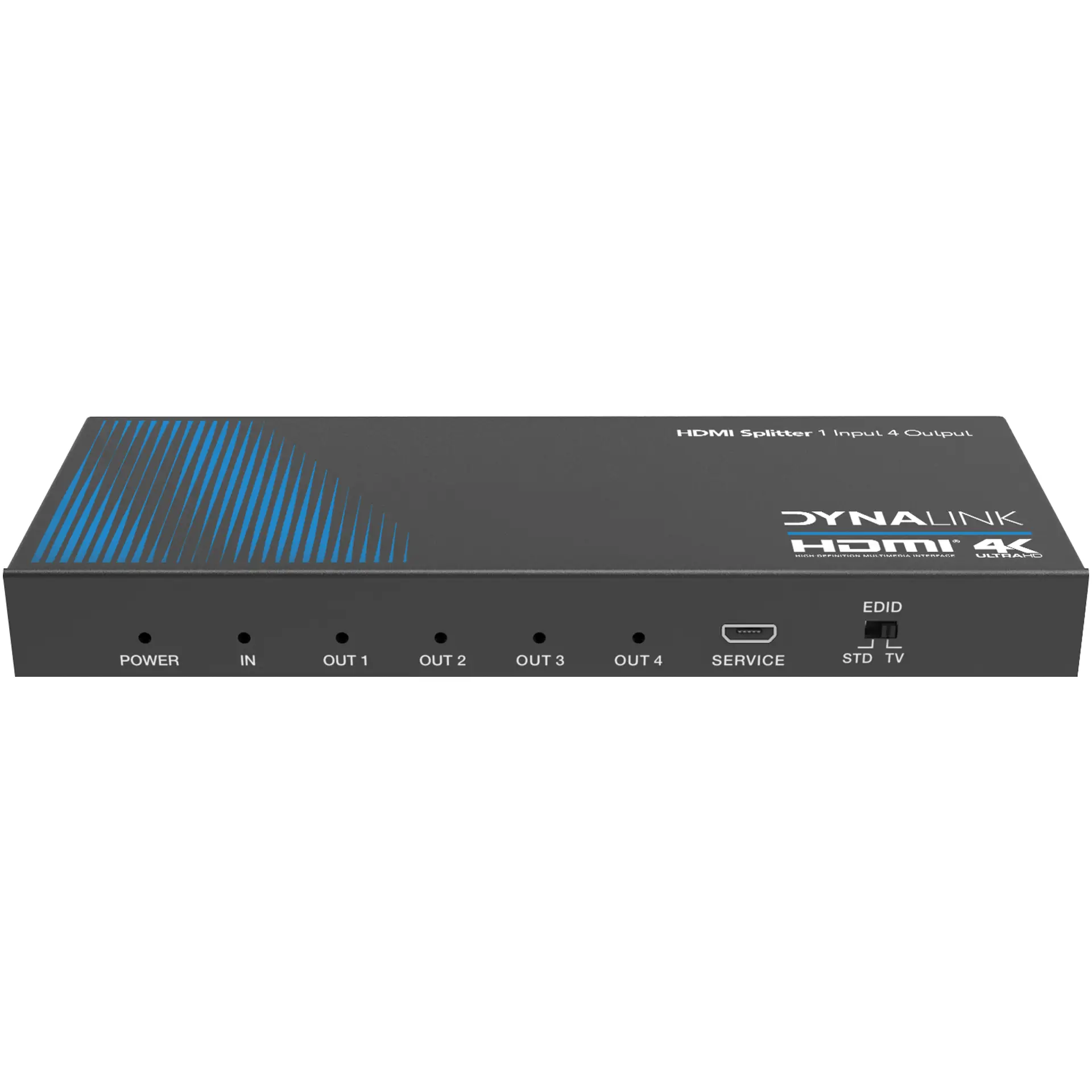

4K 1x4 HDMI Splitter 18GBps Bandwidth

by: Dynalink
SKU: A3135H
This HDMI 1x4 Splitter designed with 1x HDMI input and 4x HDMI output, can distribute 1x HD source signal to 4x display devices simultaneously and quickly.
$72.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $72.68
2+ $65.41
4+ $58.14
i h

Overview

This HDMI 1x4 Splitter designed with 1x HDMI input and 4x HDMI output, can distribute 1x HD source signal to 4x display devices simultaneously and quickly. Video resolution is up to 4K2K@60Hz YCbCr 4:4:4, and digital audio format is up to LPCM 7.1CH. It supports advanced EDID management.

Each signal is designed in strict accordance with industry standards to prevent cross-talk between signals and minimize signal attenuation. This ensures the high-quality output of every HD signal after distribution, achieving perfect transmission.

The device is widely used in multimedia conference halls, television teaching, large-screen display and other applications.



Box Contents

1× 4K60 1x4 HDMI Splitter

1× 5V/1A Power Supply

1× User Manual



Features

  • HDCP 2.3/2.2/1.4 and DVI 1.0 compliant
  • Video resolution is up to 4K2K@60Hz YCbCr 4:4:4
  • Audio format up to 7.1CH: LPCM, Dolby TrueHD,
    DTS-HD Master Audio
  • Support HDR and 3D audio format
  • Advanced EDID management
  • Compact design for easy and flexible installation





Specifications

Technical

HDMI Compliance: HDMI 2.0b

HDCP Compliance: HDCP 2.3/2.2/1.4

DVI Compliance: DVI 1.0

Video Bandwidth: 18Gbps

Video Resolution (Input & Output): 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 720x480i59.94Hz(480i59), 720x480p59.94Hz(480p59), 720x576i50Hz(576i50), 720x576p50Hz(576p50), 1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59), 1280x720p60Hz(720p60), 1920x1080i50Hz(1080i50), 1920x1080i59.94Hz(1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24), 1920x1080p25Hz(1080p25), 1920x1080p29.97Hz(1080p29), 1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50), 1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60), 3840x2160p23.98Hz(2160p23), 3840x2160p24Hz(2160p24), 3840x2160p25Hz(2160p25), 3840x2160p29.97Hz(2160p29), 3840x2160p30Hz(2160p30), 4096x2160p23.98Hz, 4096x2160p24Hz, 4096x2160p25Hz, 4096x2160p29.97Hz, 4096x2160p30Hz, 4096x2160p60Hz

Colour Depth: 8-bit,10-bit,12-bit

Colour Space: RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0

HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG

3D Audio Format: Yes



Connection

Input:  1× HDMI IN [Type A, 19-pin female]

Output: 4× HDMI OUT [Type A, 19-pin female]

Control: 1× SERVICE [USB Type C, update port]



Mechanical

Housing: Metal Enclosure

Colour: Black

Dimensions: 163W × 63D × 16Hmm

Weight: 264g

Power Supply: DC 5V/1A

Power Consumption: 3W (Max)

Operating Temperature: 0°C ~ 40°C

Storage Temperature: -20°C ~ 60°C

Operating Humidity 20%~80% relative humidity, non-condensing

Storage Humidity: 10%~90% relative humidity, non-condensing



Recommended HDMI Cable

Resolution: 4K60 = 8m Length

Resolution: 1080P = 15m Length

The use of “Premium High Speed HDMI” cable is highly recommended.



Details

Products specifications

Warranty 12 Months
Audio Visual
Type HDMI Splitters

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
