This 4K30 HDMI Extender can extend HDMI high-definition signal up to 100m over CAT6/6a cable, achieving zero-delay, uncompressed long-distance transmission between the signal sources and display devices.

HDMI & Infra-Red Cat5e/6 Extender UTP Balun

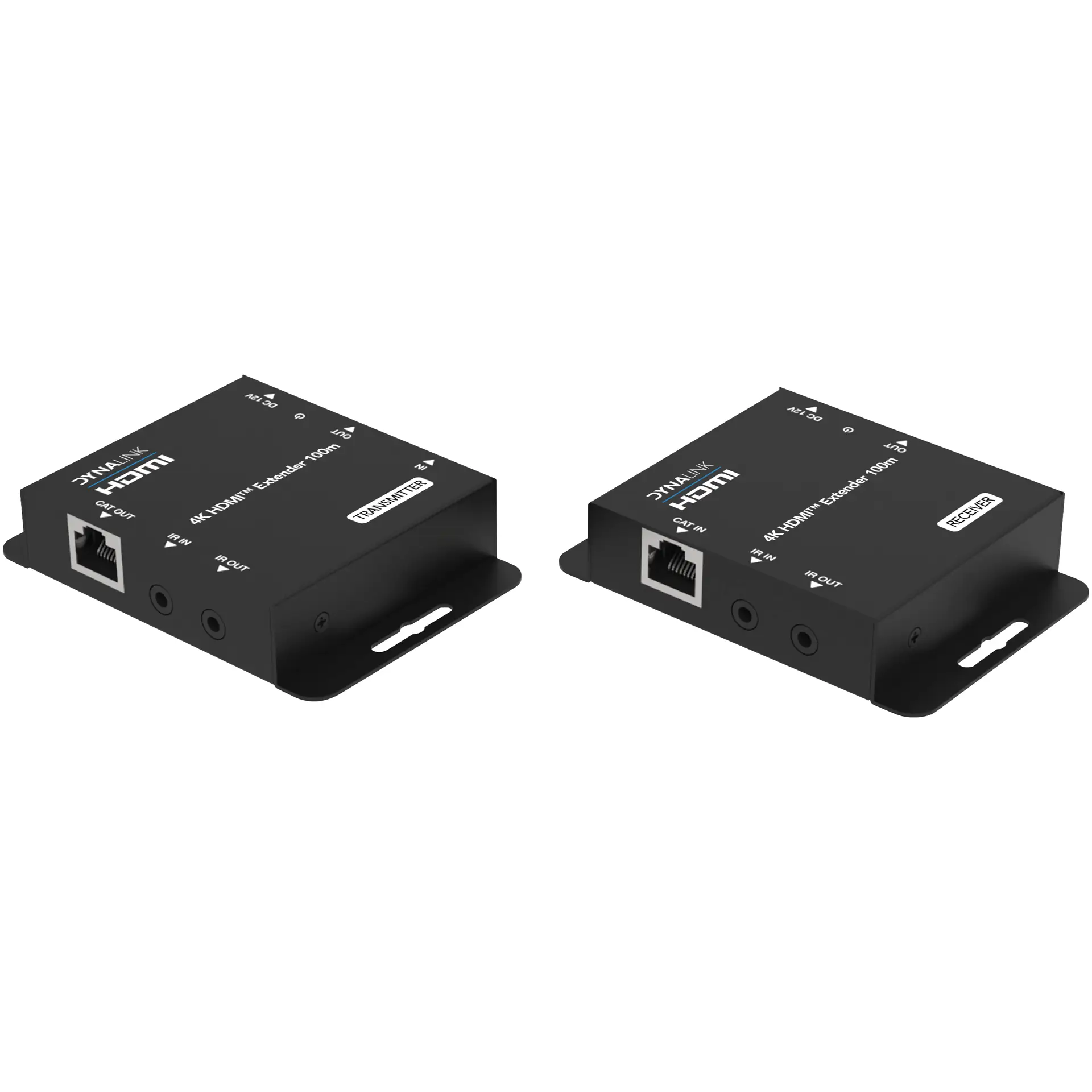

Name: HDMI & Infra-Red Cat5e/6 Extender UTP Balun
SKU: A3217E
Price: 117.27 AUD
Availability: InStock

by: Dynalink

SKU: A3217E

$117.27

All Prices Shown are (ex GST)

Bulk Pricing

ea	$117.27
3+	$104.55
6+	$90.91

i h

Overview
Details
Warranty
Downloads

Overview

This 4K30 HDMI Extender can extend HDMI high-definition signal up to 100m over CAT6/6a cable, achieving zero-delay, uncompressed long-distance transmission between the signal sources and display devices. Video resolution is up to 4K@30Hz, and audio formats available include LPCM/Dolby/DTS 5.1CH. PoC (Power over Cable) function and EDID copy pass-through between the signal sources and display devices are also supported.

This multi-functional product can be widely applied in scenarios of demonstration, video conference, multimedia teaching and other applications.

Package includes:

1× 4K30 HDMI Extender (TX)

1× 4K30 HDMI Extender (RX)

1× IR Blaster Cable (1.5m)

1× IR Wideband Receiver Cable (1.5m)

1× 12V/1A Power Supply

1× User Manual

Features:

Compliant with HDCP 1.4
Video bandwidth is 10.2Gbps
Video resolution is up to 4K@30Hz, 1080P@60Hz, 1920x1200@60Hz
Transmission distance can be up to 100m over CAT6/6a cable
Support bi-directional PoC function and IR pass-through
Audio format: LPCM 2.0, Dolby 5.1, DD+7.1, DTS 5.1
EDID copy pass-through between the signal sources and display devices

Specifications:

Technical:

HDCP Compliance: HDCP 1.4

HDMI Compliance: HDMI 1.4

Video Bandwidth: 10.2Gbps

Colour Space: RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2

Colour Depth: 8/10/12-bit

Audio Formats: LPCM 2.0, Dolby 5.1, DD+7.1, DTS 5.1

IR Level: 5Vp-p

IR Frequency: Wideband 20K-60KHz

Transmission Distance: 100m/328ft for 4K@30Hz via CAT6/6a cable

Video Resolution: 480i60, 576i50, 480p60, 576p50, 720p50/60, 1080i50/60, 1080p24/25/30/50/60, 3840x2160@24/25/30, 4096x2160@24/25/30; 640x480@60, 1024x768@60, 1280x768@60, 1280x800@60, 1280x1024@60, 1360x768@60, 1440x900@60, 1680x1050@60, 1920x1200@60RB

Connections:

Transmitter: Input: 1× HDMI IN [Type A, 19-pin female] 1× IR IN [3.5mm audio jack] Output: 1× HDMI OUT [Type A, 19-pin female] 1× IR OUT [3.5mm audio jack] 1× CAT OUT [RJ45]

Receiver: Input: 1× CAT IN [RJ45] 1× IR IN [3.5mm audio jack] Output: 1× HDMI OUT [Type A, 19-pin female] 1× IR OUT [3.5mm audio jack]

Mechanical:

Housing: Metal Enclosure

Colour: Black

Dimensions: 74W x 68D x 20Hmm

Weight: Transmitter: 162g, Receiver: 159g

Power Supply: 12V/1A DC

Power Consumption: 3.24W

Operation Temperature: 0°C ~ 40°C

Storage Temperature: -20°C ~ 60°C

Relative Humidity: 20~90% RH (non-condensing)

Details

Products specifications

Warranty	12 Months
Audio Visual
Type	HDMI Extenders

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Instructions

PDF
