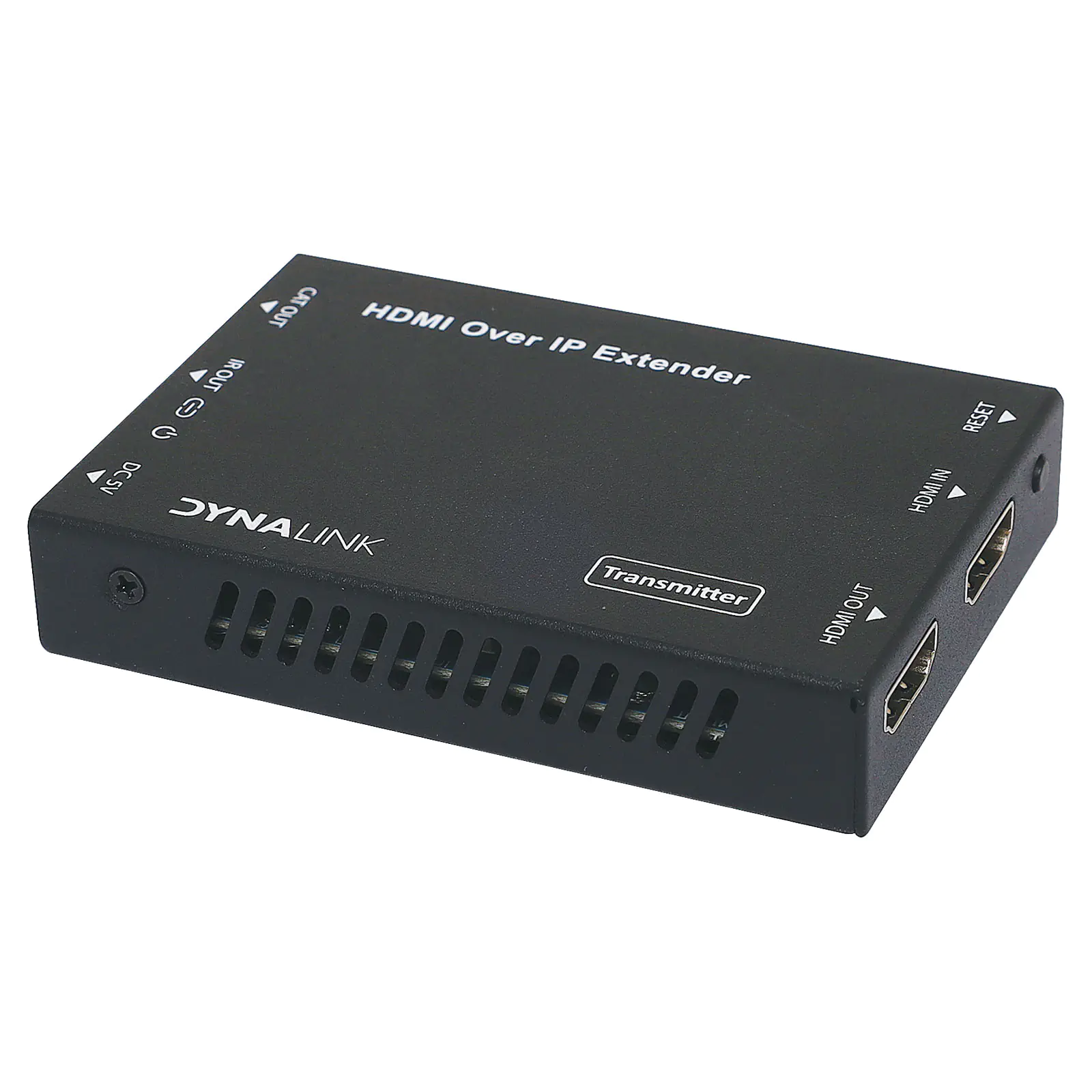

HDMI over IP Extender Cat5e/6 Transmitter

by: Dynalink
SKU: A3138A
HDMI Over IP Extender is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices over a standard 1G network switcher, and extends distance up to 150m between transmitter and receiver via a Cat5e/6 cable.
$144.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $144.55
2+ $131.82
4+ $117.27
i h

Overview

HDMI Over IP Extender is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices over a standard 1G network switcher, and extends distance up to 150m between transmitter and receiver via a Cat5e/6 cable. It offers configurable high quality, low-bandwidth H.265 compression video. The resolution is up to 1920x1200@ 60Hz YCbCr 4:4:4. It also supports HDMI loop output on transmitter.

HDMI over IP Extender requires two units: Transmitter and Receiver (sold separately).

The Transmitter (A3138A) is responsible for obtaining HDMI signals for encoding, transmitting via CAT 5e / 6 cables. It supports HDMI loop output.

The Receiver (A3139A - see accessories listed below) is responsible for signal decoding and outputting HDMI signals to HD displays. The product supports one-way IR control signal transmission. It offers the most convenient solution for HDMI extension over a single Cat5e/6 cable and is the perfect solution for any application.

Box Contents:
1x HDMI over IP Extender(Transmitter)
1x 20-60KHz IR Receiver cable (1.5m)
1x 5V/1A Power Adapters
1x User Manual



Features:

  • HDCP 1.4 compliant
  • Supports 6.75Gbps video bandwidth
  • Video resolution is up to 1920x1200@60Hz YCbCr 4:4:4
  • Extend distance up to 150m between encoder and decoder via Cat5e/6 cable
  • Adopts Standard H.265 encoding/decoding
  • Supports 1G standard IP switcher / router / hub
  • Supports one-way IR control signal transmission
  • Compact design for easy and flexible installation

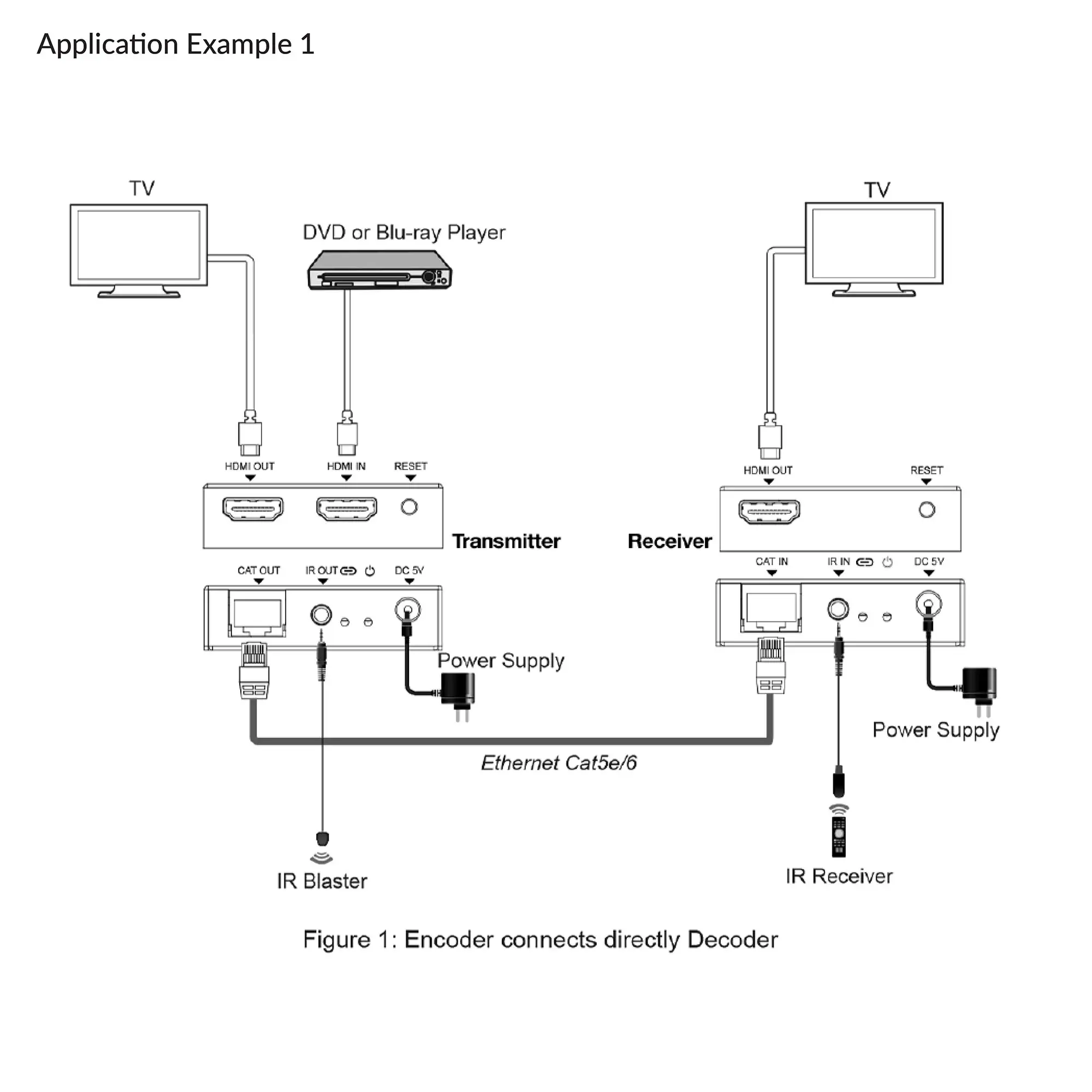

A3138A Application

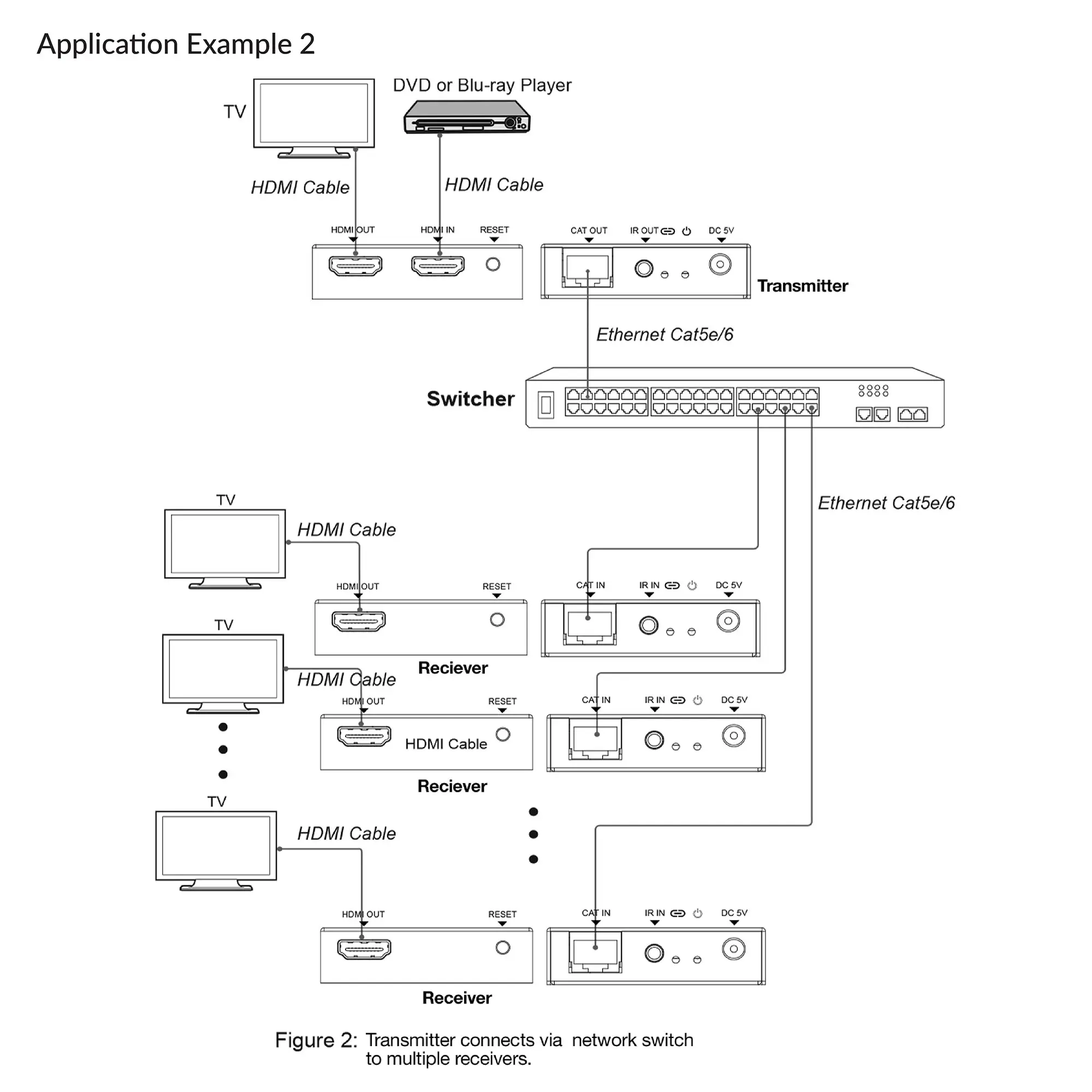

A3138A Application



Specifications:



Technical:

HDCP Compliance: HDCP 1.4

Video Bandwidth: 6.75Gbps

Video Resolution: 640x480@60Hz ~1920x1200@60Hz

HDMI Audio Formats: LPCM 2.0CH, 32KHz, 44.1KHz, 48KHz

IR Frequency: 20Hz ~ 60KHz

Compression Technology: H.265

Request for Switcher/Router: Support 1 GMP, Support DHCP

Colour Space: RGB YCbCr 4:4:4, YCbCr 4:2:2

Colour Depth: 12-bit

ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact Discharge)



Connection:

Inputs: 1x HDMI Type A (19-pin female)

Outputs: 1x HDMI Type A (19-pin female), 1 x CAT OUT (RJ45 connector)

Control: 1 x IR OUT (3.5mm stereo mini-jack)



Mechanical:

Housing: Metal Enclosure

Silkscreen Colour: Black

Dimensions: 88W x 61.2D x 16.5Hmm

Weight: 155g

Power Supply: Input: AC100 -240V 50/60Hz, Output: DC 5V/1A (US/EU standard, CE/FCC/UL certified)

Power consumption: Encoder: 1.5W, Decoder: 1.25W

Operation Temperature: -10°C ~ +50°C

Storage Temperature: -20°C ~ +60°C

Relative Humidity: 20~90% RH (non-condensing)



Resolution/Distance 1920x1200@60Hz:

CAT 5e/6 cable: 150m



Resolution/Cable Length 1920x1200@60Hz:

HDMI IN/OUT: 15m

Details

Products specifications

Warranty 12 Months
Audio Visual
Type HDMI Extenders

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
