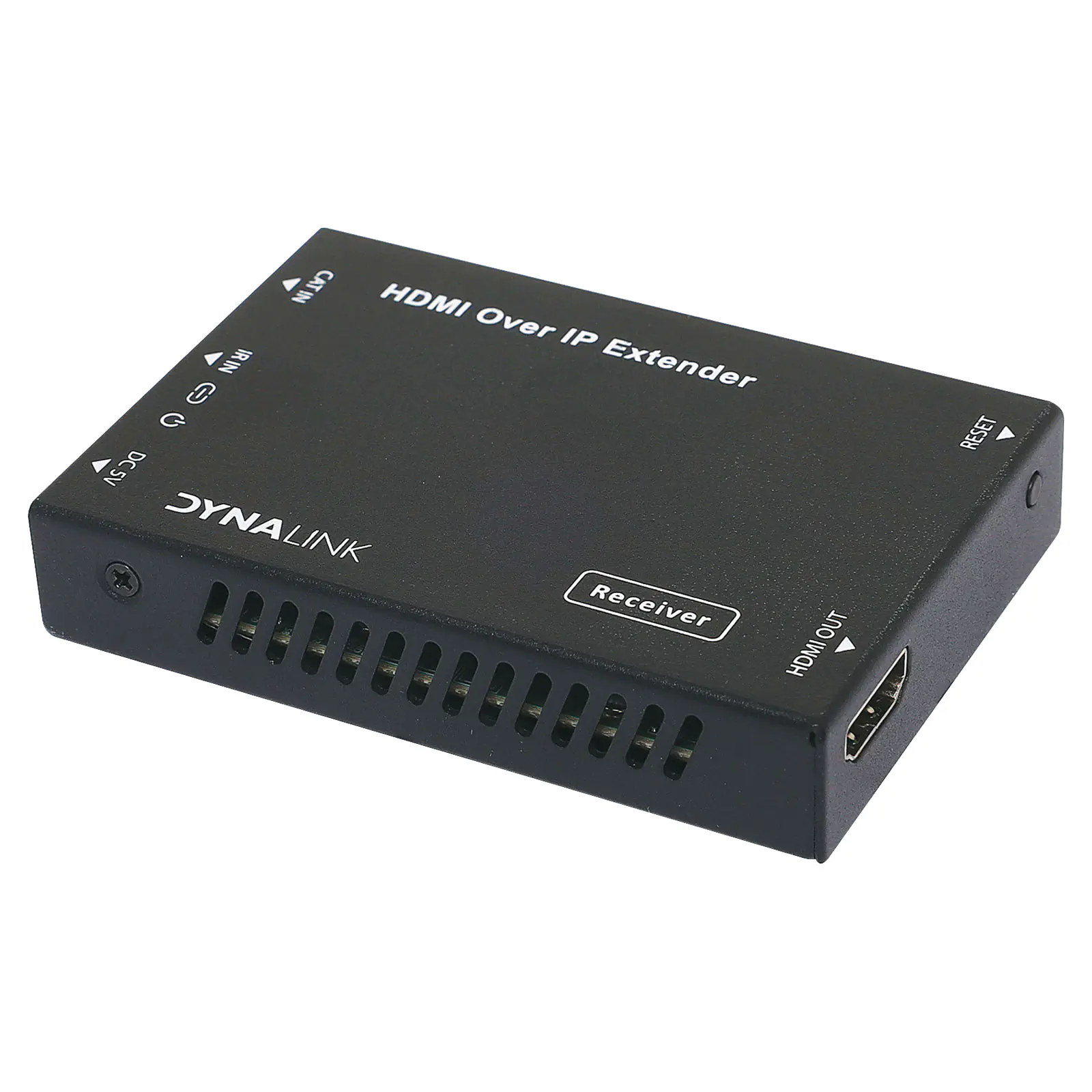

HDMI Over IP Extender Cat5e/6 Receiver

by: Dynalink
SKU: A3139A
HDMI Over IP Extender is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices over a standard 1G network switcher, and extends distance up to 150m between transmitter and receiver via a Cat5e/6 cable.
$144.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $144.55
2+ $131.82
4+ $117.27
i h

Overview

HDMI over IP Extender is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices over a standard 1G network switcher, and extends distance up to 150m between transmitter and receiver via a Cat5e/6 cable. It offers configurable high quality, low-bandwidth H.265 compression video. The resolution is up to 1920x1200@ 60Hz YCbCr 4:4:4. It also supports HDMI loop output on transmitter.

HDMI over IP Extender requires two units: Transmitter and Receiver (sold separately).

The Transmitter (A3138A - see accessories listed below) is responsible for obtaining HDMI signals for encoding, transmitting via CAT 5e / 6 cables. It supports HDMI loop output.

The Receiver (A3139A) is responsible for signal decoding and outputting HDMI signals to HD displays. The product supports one-way IR control signal transmission. It offers the most convenient solution for HDMI extension over a single Cat5e/6 cable and is the perfect solution for any application.

Box Contents:
1x HDMI over IP Extender (Receiver)
1x IR Blaster cable (1.5m)
1x 5V/1A Power Adapters
1x User Manual



Features:

  • HDCP 1.4 complaint
  • Supports 6.75Gbps video bandwidth
  • Video resolution is up to 1920x1200@60Hz YCbCr 4:4:4
  • Extend distance up to 150m between encoder and decoder via Cat5e/6 cable
  • Adopts Standard H.265 encoding/decoding
  • Supports 1G standard IP switcher / router / hub
  • Supports one-way IR control signal transmission
  • Compact design for easy and flexible installation





pic

pic



Specifications:



Technical:

HDCP Compliance: HDCP 1.4

Video Bandwidth: 6.75Gbps

Video Resolution: 640x480@60Hz ~1920x1200@60Hz

HDMI Audio Formats: LPCM 2.0CH, 32KHz, 44.1KHz, 48KHz

IR Frequency: 20Hz ~ 60KHz

Compression Technology: H.265

Request for Switcher/Router: Support 1 GMP, Support DHCP

Colour Space: RGB YCbCr 4:4:4, YCbCr 4:2:2

Colour Depth: 12-bit

ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact Discharge)



Connection:

Inputs: 1x CAT IN (RJ45 connector)

Outputs: 1x HDMI Type A (19-pin female)

Control: 1 x IR IN (3.5mm stereo mini-jack)



Mechanical:

Housing: Metal Enclosure

Silkscreen Colour: Black

Dimensions: 88W x 61.2D x 16.5Hmm

Weight: 155g

Power Supply: Input: AC100 -240V 50/60Hz, Output: DC 5V/1A (US/EU standard, CE/FCC/UL certified)

Power consumption: Encoder: 1.5W, Decoder: 1.25W

Operation Temperature: -10°C ~ +50°C

Storage Temperature: -20°C ~ +60°C

Relative Humidity: 20~90% RH (non-condensing)



Resolution/Distance 1920x1200@60Hz:

CAT 5e/6 cable: 150m



Resolution/Cable Length 1920x1200@60Hz:

HDMI IN/OUT: 15m
