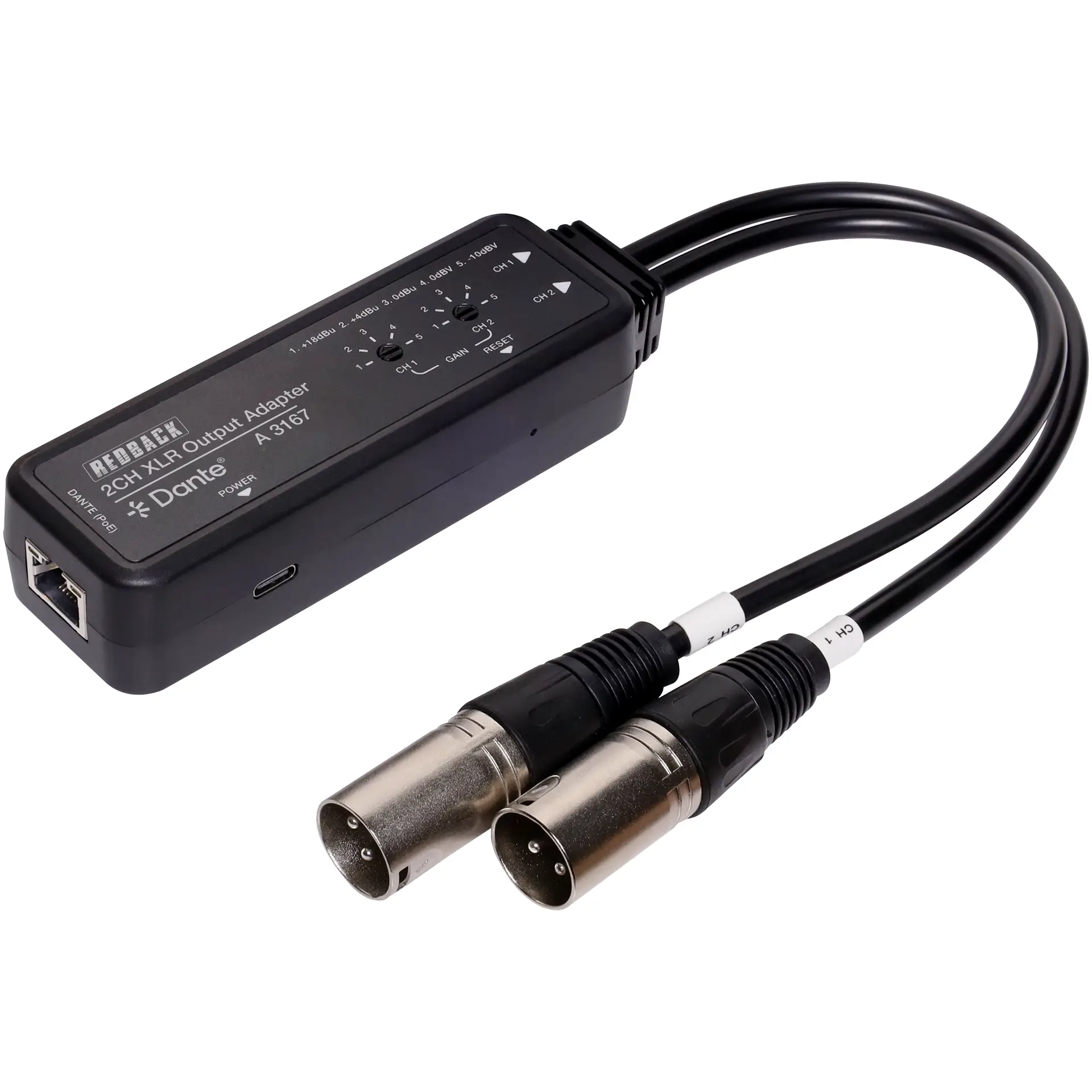

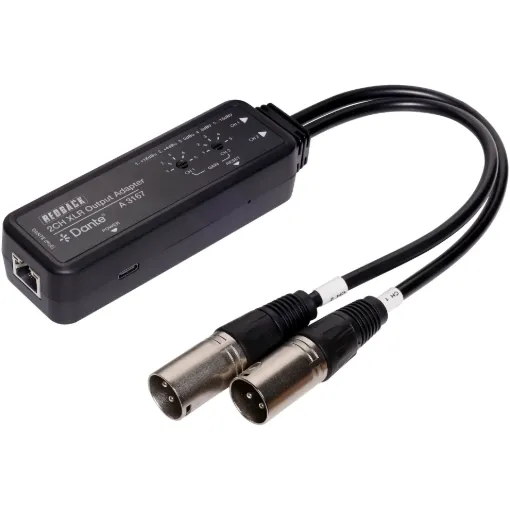

2Ch XLR Output to Dante Input Adapter

SKU: A3167
This adapter converts Dante 2CH digital audio into two channel balanced/unbalanced XLR analog audio.
$235.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $235.45
2+ $222.73
i h

Overview

This Dante 2CH XLR Output Adapter is an audio converter based on the Dante Ultimo 2x2 solution. It converts Dante 2CH digital audio into two channel balanced/unbalanced XLR analog audio. Analog audio output supports 5-level gain adjustment. The adapter supports local USB-C port power supply and PoE function.



Features:

  • Dante 2CH digital audio to two-channel XLR analog audio
  • Balanced/unbalanced XLR analog audio output
  • Dante audio sampling rate supports 44.1/48/88.2/96KHz@24bit
  • Dante audio delay supports 1/2/5ms (configurable)
  • Analog audio output supports 5-level gain adjustment (+18dBu, +4dBu, 0dBu, 0dBv, -10dBv)
  • Compatible with AES67 input and output.
  • Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
  • Compact design for easy and flexible installation





Specifications:

Technical:

Input: Dante 2CH digital audio

Output: Two-channel balanced/unbalanced XLR analog audio

Control Method: Dante Controller

Video Network Bandwidth: 100M

Audio Latency: Configurable Dante device latency (Supports 1, 2 or 5ms configurable using Dante Controller)

Audio Formats: DANTE IN [Digital audio input, PCM 2CH 44.1K-96KHz 16/24bit] XLR OUT [Analog audio output, Balanced/unbalanced 2CH, Max input level +24dBu]

Transmission Distance: 100m (CAT6/6A/7)

ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)



Audio Parameters:

XLR Analog Audio Out

Output Impedance: 600 Ohm balanced, 300 Ohm unbalanced

Line Output Level (Maximum): +18dBu (6.15Vrms) @balanced audio, +12dBu (3.08Vrms) @unbalanced audio

Frequency Response: 20Hz to 20kHz (-/+0.5dB)

Dynamic Range: >100dB@0dBu, 1kHzA-weighted

Audio S/N Ratio: >100dB@0dBu, 1kHzA-weighted

Audio THD+N: < 0.01% at +4dBu, 1KHz

Audio Output Sync Delay: <10ms



Connection:

Input port: 1x DANTE [RJ45 connector, PoE], 1x POWER [USB-C with USB power only, 12-pin female

Output port: 2x CH1/CH2 XLR OUT [XLR male plug, with 30cm cable

Others: 1x RESET button [System reboot button], 2x SENSITIVITY knob [5-level dip switch]



Mechanical:

Housing: Plastic Enclosure

Colour: Black

Dimensions: 115mm [W] x 40mm [D] x 28 mm [H]

Weight: 173g

Power Supply: USB input: 5V/500mA, PoE input: PoE IEEE802.3af Class 0

Power Consumption: 1.25W (Max)

Operating Temperature: 0°C ~ 40°C

Storage temperature: -20°C ~ 60°C

Operating Humidity: 20% ~ 80% RH (relative humidity, non-condensing)

Storage Humidity: 10% ~ 90% RH (relative humidity, non-condensing)

Details

Products specifications

Warranty 12 Months
Professional Audio
Type Dante Products

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
.pdf
Brochure
PDF
