This 2 x 120W PA zone amplifier developed by Redback, allows installers to mix and match amplifiers within a 1RU 19” rack space.

2 x 120W Public Address (PA) Zone Amplifier

Name: 2 x 120W Public Address (PA) Zone Amplifier
SKU: A4221
Price: 768.18 AUD
Availability: InStock

by: Redback

SKU: A4221

This 2 x 120W PA zone amplifier developed by Redback, allows installers to mix and match amplifiers within a 1RU 19” rack space.

$768.18

All Prices Shown are (ex GST)

Bulk Pricing

ea	$768.18
3+	$744.55

i h

Overview
Details
Warranty
Downloads

Overview

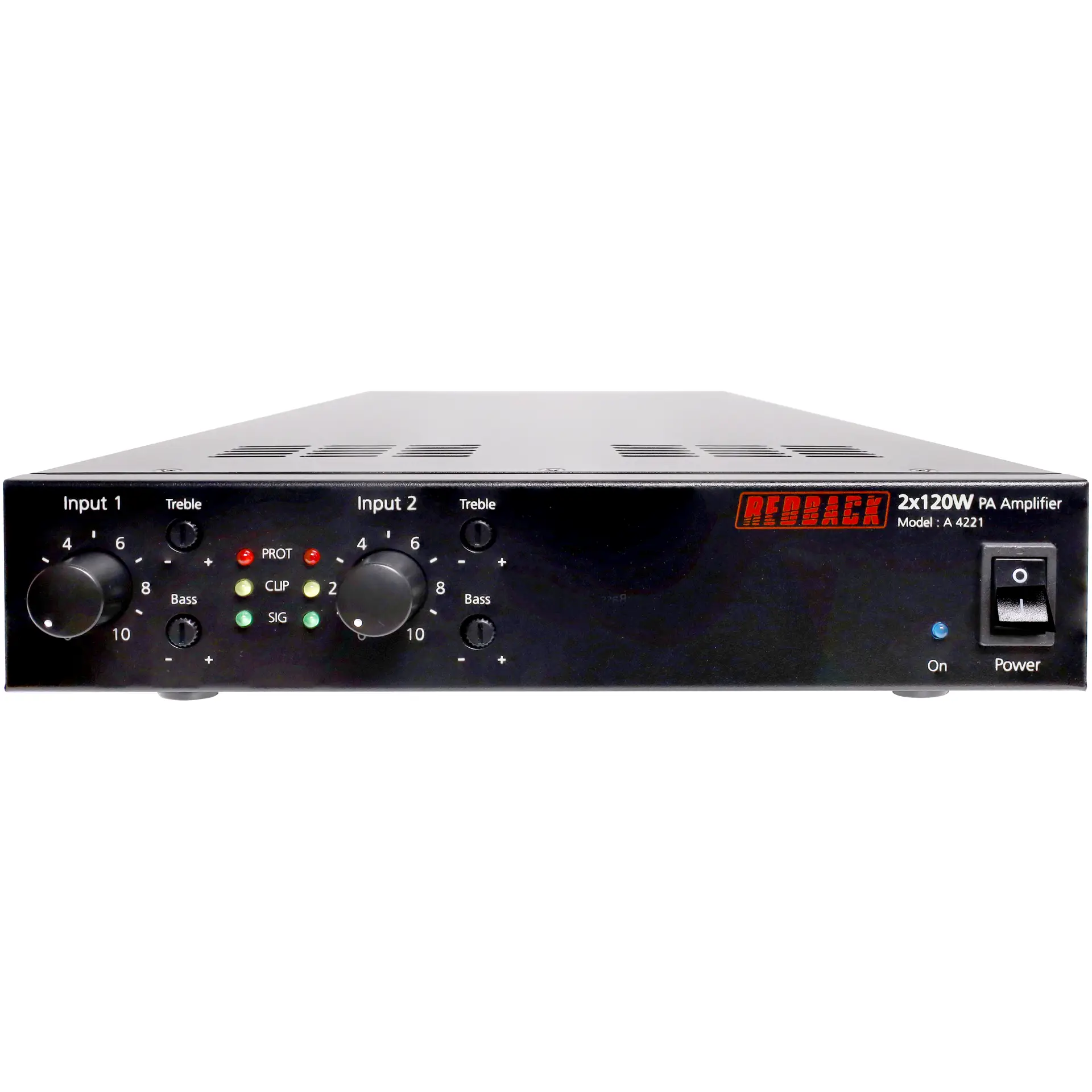

This 2 x 120W PA zone amplifier developed by Redback, allows installers to mix and match amplifiers within a 1RU 19” rack space. For instance an installer could mount this 2x 120W amplifier for high wattage zones, plus a 60W amplifier for a smaller zone - all within a single unit of rack space! This offers flexibility for installers, allowing the installation of zone amps to closely match the requirements of the customer. Each amplifier is a Class-D design offering high performance in a compact space, with excellent power efficiency. The front panel offers adjustment for each channel plus bass and treble control. Individual protection, clipping and signal presence indicators are provided for each channel. All outputs are via pluggable euroblock connectors with 100V line and 8Ω outputs available. Inputs are via stereo RCA line or balanced euroblock pluggable screw terminals. A high pass filter switch can be activated on each channel. For installations using only one amplifier, a mounting bracket adaptor provides an easy way to bolt into a standard 19” racking system.

Features:

Modular design allows for mix and match amplifiers within 1RU rack space.
Class-D design with excellent performance and efficiency.
LED indicators for protection mode, clipping condition and signal presence.
100V line or 8 ohm output via screw terminals.
Stereo RCA line input.
Balanced line input via 3 pin Euroblock pluggable terminal.
Input parallel mode allowing connection of input 1 to input 2 via switch activation.
Balanced line input priority over RCA input.
High pass filter at 180Hz -3dB.
Built-in short circuit, overload and high temperature protection.
2 year warranty.

Specifications:

Rated power (8Ω): 4 x 60W

Rated power (100V): 2 x 120W

Input sensitivity: 1V RMS / 10K Ohm unbalanced/balanced.

Power supply: AC 110-240V 50/60Hz

Power consumption: 360W

Speaker output: 100V / 8 Ohm

Frequency response: 80Hz - 17Khz (+1dB / -3dB)

S/N ratio: >80dB (with A-weight)

THD: <1% (at rated power, 1kHz)

Output channel: 2 channels

Tone control: Bass: 100Hz (±10dB), Treble: 10KHz (±10dB)

Working humidity: 90%

Working temp: 0°C to +40°C

Product size: 215 x 44 x 330mm (half 19” rack size)

Weight: 3.5kg

Details

Products specifications

Warranty	2 Years
Professional Audio
Output	100 Volt Line Amplifiers
Type	Power PA Amplifiers
