This mic/line pre-amp wallplate accepts either a microphone or line input and converts the signal to a balanced high level output. The 3V output signal is carried via Cat5e cable, (suitable for distribution up to 300m without interference) back to the A 4930 Hub.

Microphone/Line Pre Amplifier Wallplate

Name: Microphone/Line Pre Amplifier Wallplate
SKU: A4931
Price: 181.82 AUD
Availability: InStock

by: Redback

SKU: A4931

This mic/line pre-amp wallplate accepts either a microphone or line input and converts the signal to a balanced high level output. The 3V output signal is carried via Cat5e cable, (suitable for distribution up to 300m without interference) back to the A 4930 Hub.

$181.82

All Prices Shown are (ex GST)

Bulk Pricing

ea	$181.82
2+	$168.18

i h

Overview
Details
Warranty
Downloads

Overview

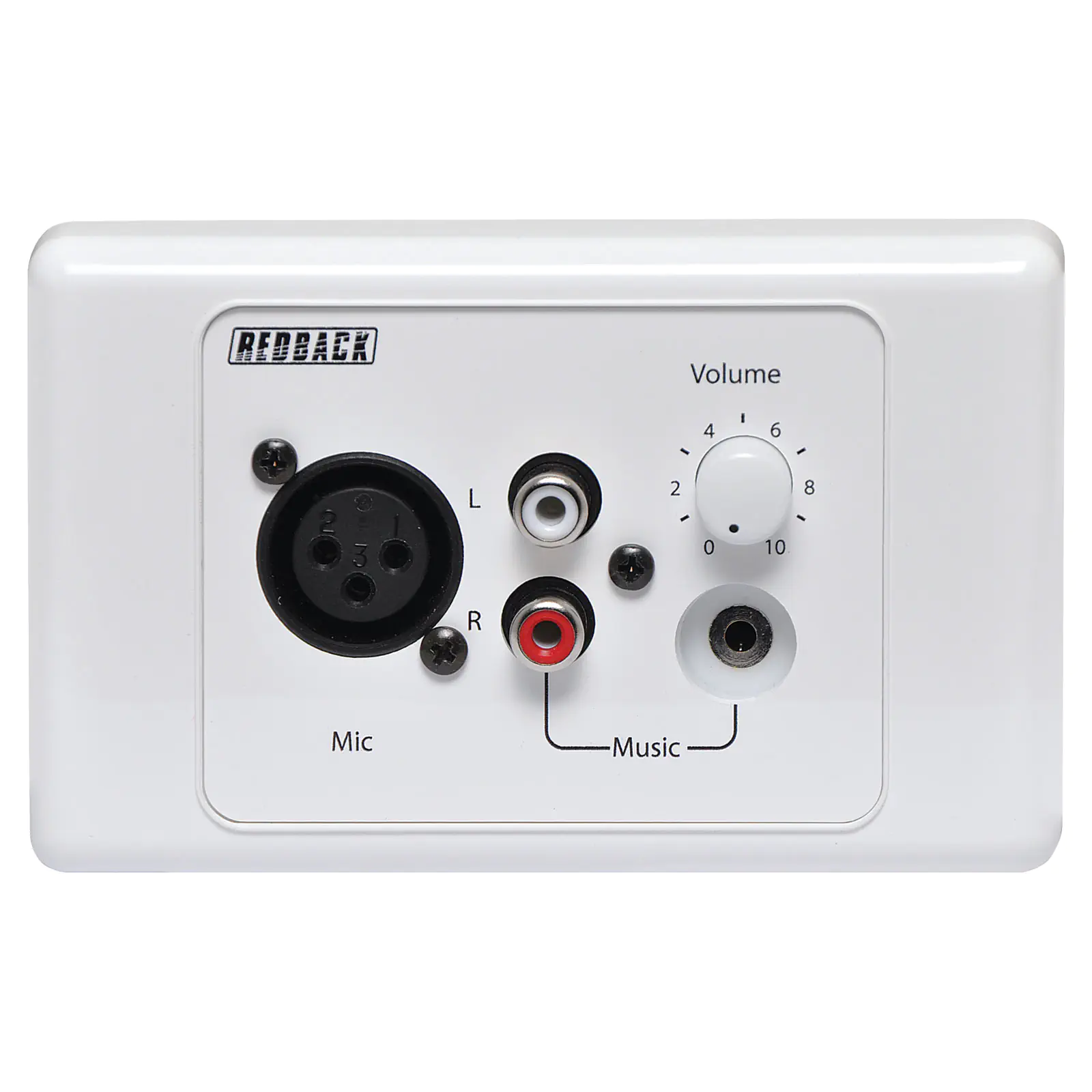

This mic/line pre-amplifier wall plate accepts either a microphone or line input and converts the signal to a balanced high level output. The 3V output signal is carried via Cat5e cable, (suitable for distribution up to 300m without interference) back to a Redback compatible UTP receiver unit. Mic input is via a balanced XLR whilst the line input is via 2 x RCA sockets or 3.5mm audio jack for portable devices with a lower level line output. Power is supplied to the wall plate over the UTP cabling.

All wall plates assembled by Altronics are supplied with two facia clip on covers. These are designed to match your current decor. Simply clip on the desired cover after installation.

Use with Redback A4480B and A4432
The wall plate provides a means of overriding the input to a zone with a local input source located in that zone. An example may be a mobile phone for background music or a microphone for speeches at a wedding function.

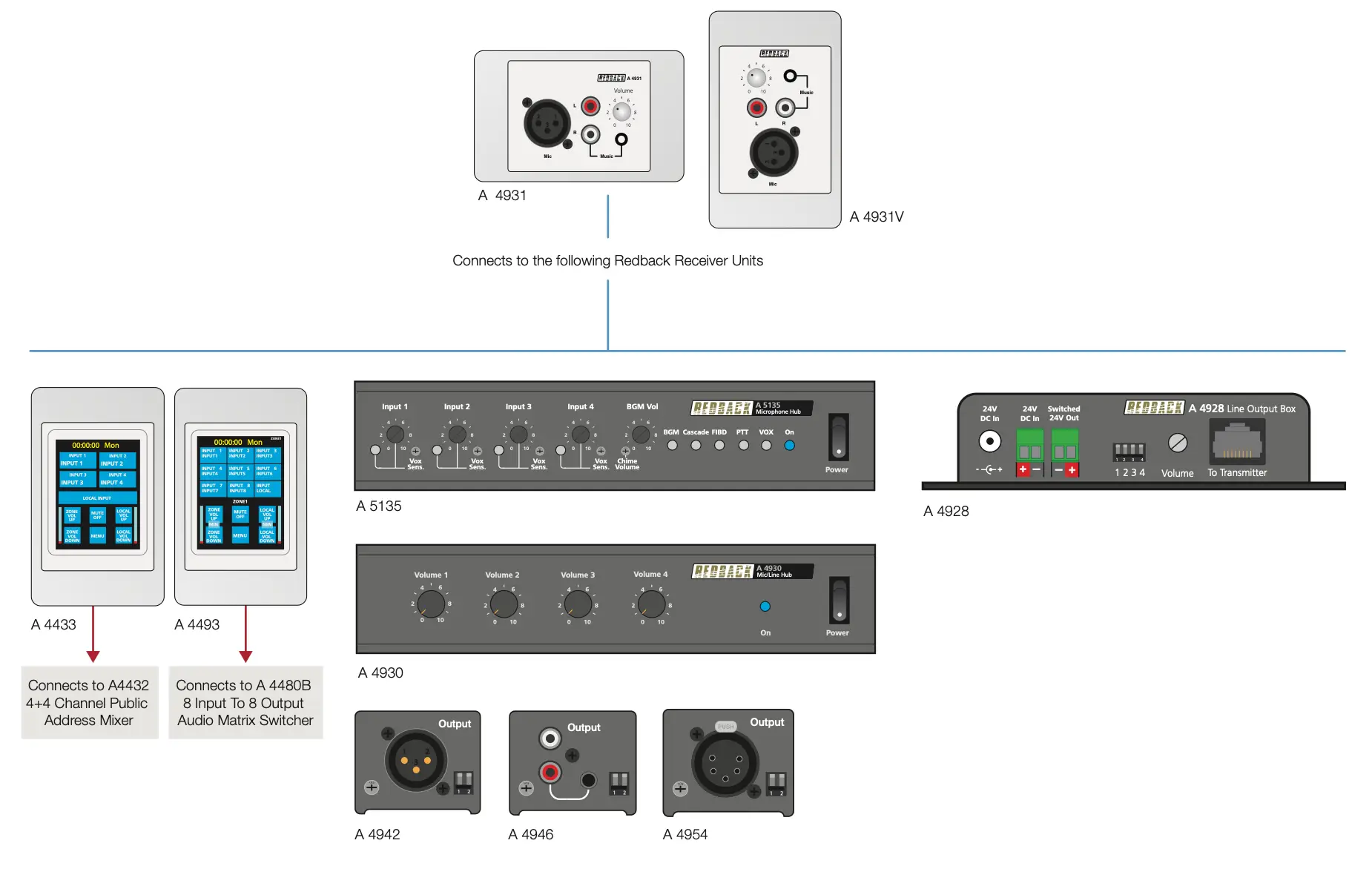

Connection Matrix

Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

Specifications:

Input Mic Level Sensitivity: 3mV
Input Line Level Sensitivity: 1V
Music Input Level Sensitivity: 500mV
Output Connector: RJ45 8P8C
Input Connectors: Audio: 3 pin XLR balanced 2 x RCA, 3.5mm JACK

Details

Products specifications

Warranty	10 Years
Professional Audio
Type	Pre-Amplifiers, Level Converters

Warranty

WARRANTY

We offer 10 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads
