Designed in conjunction with pro-sound contractors, the A 4432 is a stand alone mixer which provides a flexible way to bring multiple audio sources together. It combines many of the best features from our popular mixer and signal processing range into one compact unit.

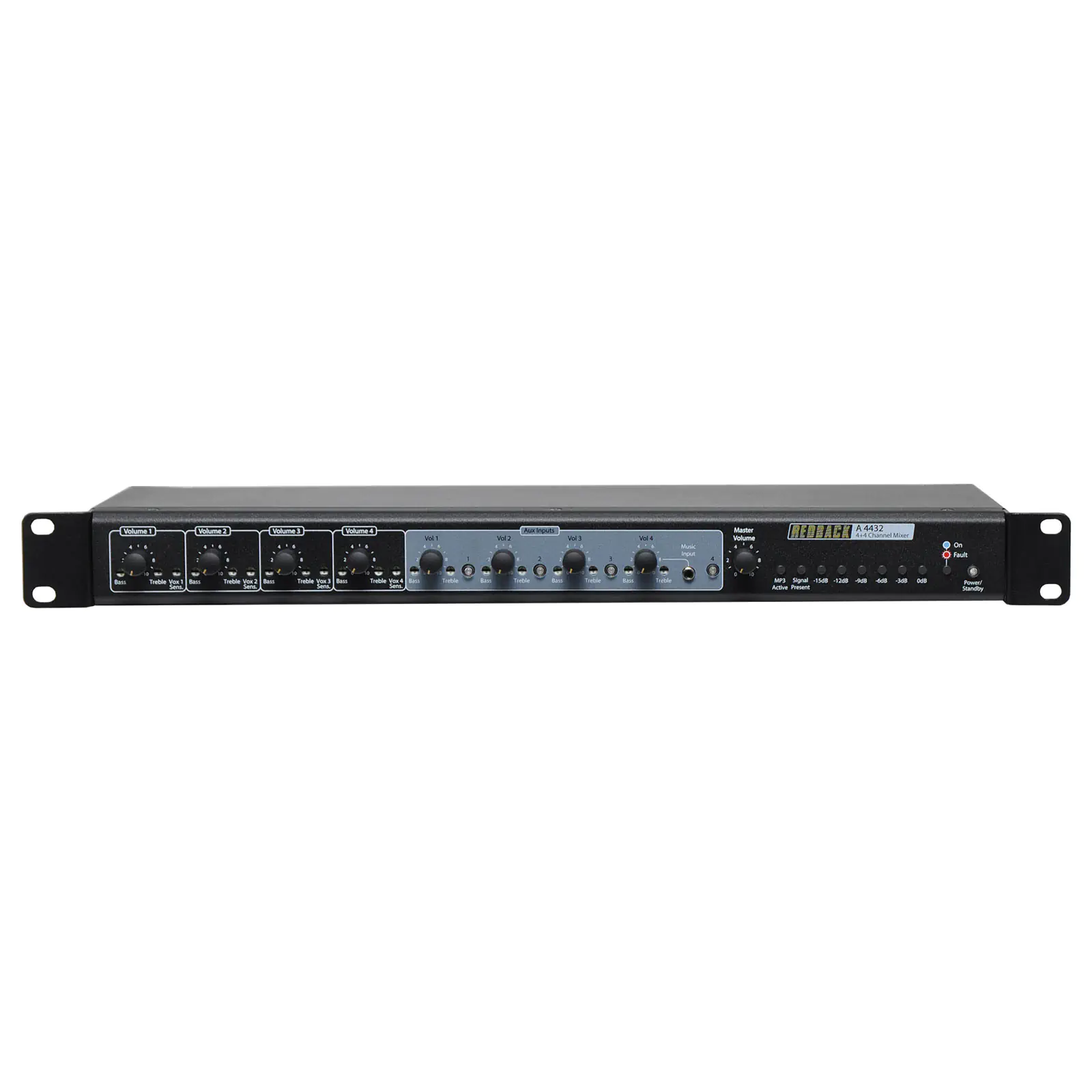

4+4 Channel Public Address (PA) Mixer

Name: 4+4 Channel Public Address (PA) Mixer
SKU: A4432
Price: 831.82 AUD
Availability: InStock

by: Redback

SKU: A4432

Designed in conjunction with pro-sound contractors, the A 4432 is a stand alone mixer which provides a flexible way to bring multiple audio sources together. It combines many of the best features from our popular mixer and signal processing range into one compact unit.

$831.82

All Prices Shown are (ex GST)

Bulk Pricing

ea	$831.82
2+	$763.64
2+	$753.64

i h

Overview
Details
Warranty
Downloads

Overview

Designed in conjunction with pro-sound contractors, the A 4432 is a stand alone 8 input mixer with 5 channels which provides a flexible way to bring multiple audio sources together. It combines many of the best features from our popular mixer and signal processing range into one compact unit. Inputs 1 to 4 can be configured for either mic or line use. Mic inputs are 5 pin euro block including PTT contacts. Line level is via RCA. Input 5 consists of 4 line level RCAs which are selectable from the front panel. With the addition of the selection wallplate, input 5 sources can be selected and adjusted remotely. A local input plate (A4931) can be connected to the selection wallplate (A4433) offering additional flexibility within the zone. Inputs from A4931 will automatically mute input 5 sources.

Tone Generator Operation.
Tones, chimes and pre-recorded messages are played from the micro SD card which plugs into the rear panel of the mixer. Individual level controls are provided for alert/evac, chime and voice over. All of these can be triggered by closing contacts such as switches, from Fire Indicator Boards (FIB) or any other remote contact source.

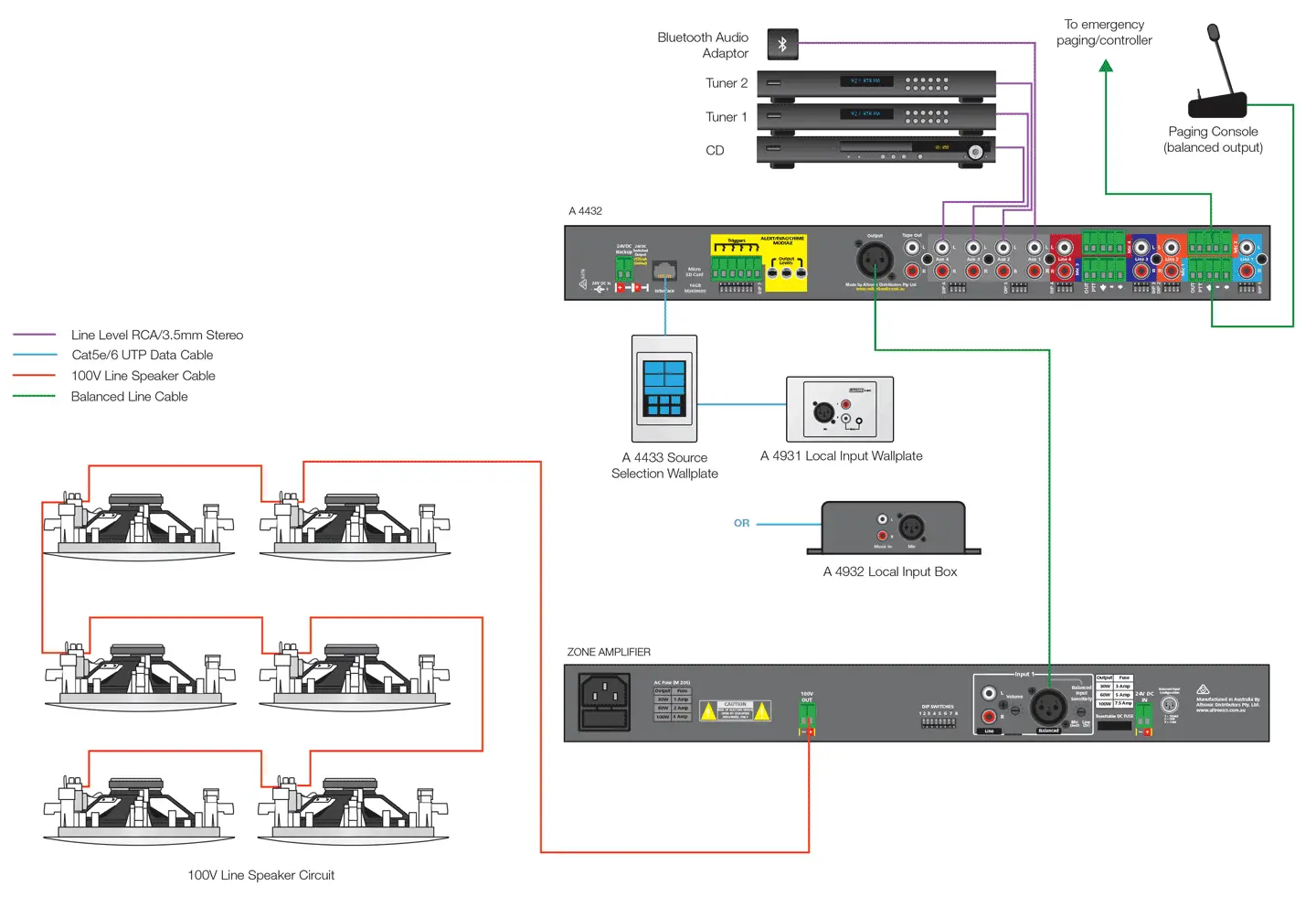

redback a4432 system diagram

Features:

Four Mic/ Line Input channels (Inputs 1-4)
Four switched RCA AUX Input channels
Remote AUX source selection, volume and Local input source volume control via optional A 4433 and A 4931 wall plates
PTT Input and 24V PTT output (limited to 120mA) on inputs 1-4
Micro SD card based Alert/Evac/Chime/Voice-over module (In built)
Individual level, bass and treble control on all inputs
3.5mm music input overrides AUX 4
Three levels of priority
Adjustable Vox sensitivity on inputs 1-4
Adjustable input sensitivity 1V/100mV on inputs 1-4 and Aux inputs 1-4
Phantom Power on inputs 1-4
Tape out (Dual RCA)
Balanced Output (XLR male)
Five sets of closing contacts for message triggering (Alert/Evac/Ch1/Ch2/Cancel)
24V DC switched output (Limited to 120mA)
MP3 active indicator
Signal Present indicator
LED VU Meter
24V DC operation (Plugpack Supplied)
24V DC battery back up terminals

Specifications:

Inputs: 4 x mic balanced 600Ω, 4 x Line Stereo 10KΩ, 4 x Line Stereo 10KΩ (switched)

Output: 600Ω balanced 0dBm

Distortion: Less than 0.3%

Frequency Response:

Mic: 30Hz-15kHz

Line: 18Hz-23kHz

S/N ratio: All controls min. -98dB

Sensitivity: Mic 2mV, line 100mV/1V

Phantom power: Nominal 12V DC

Controls:

Mic/line inputs: Bass, treble & volume + master

Bass/Treble: ±10dB @ 100Hz

Connectors:

Outputs: 3 pin XLR balanced, Stereo RCA

Mic inputs: Screw terminals

Line inputs: RCA sockets

Indicators: MP3 active, signal presence, 6 LED VU meter, power

Power supply: 24V DC

Mechanical:

Dimensions: 482W x 170D x 44H mm

Weight: ≈2kg

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.
