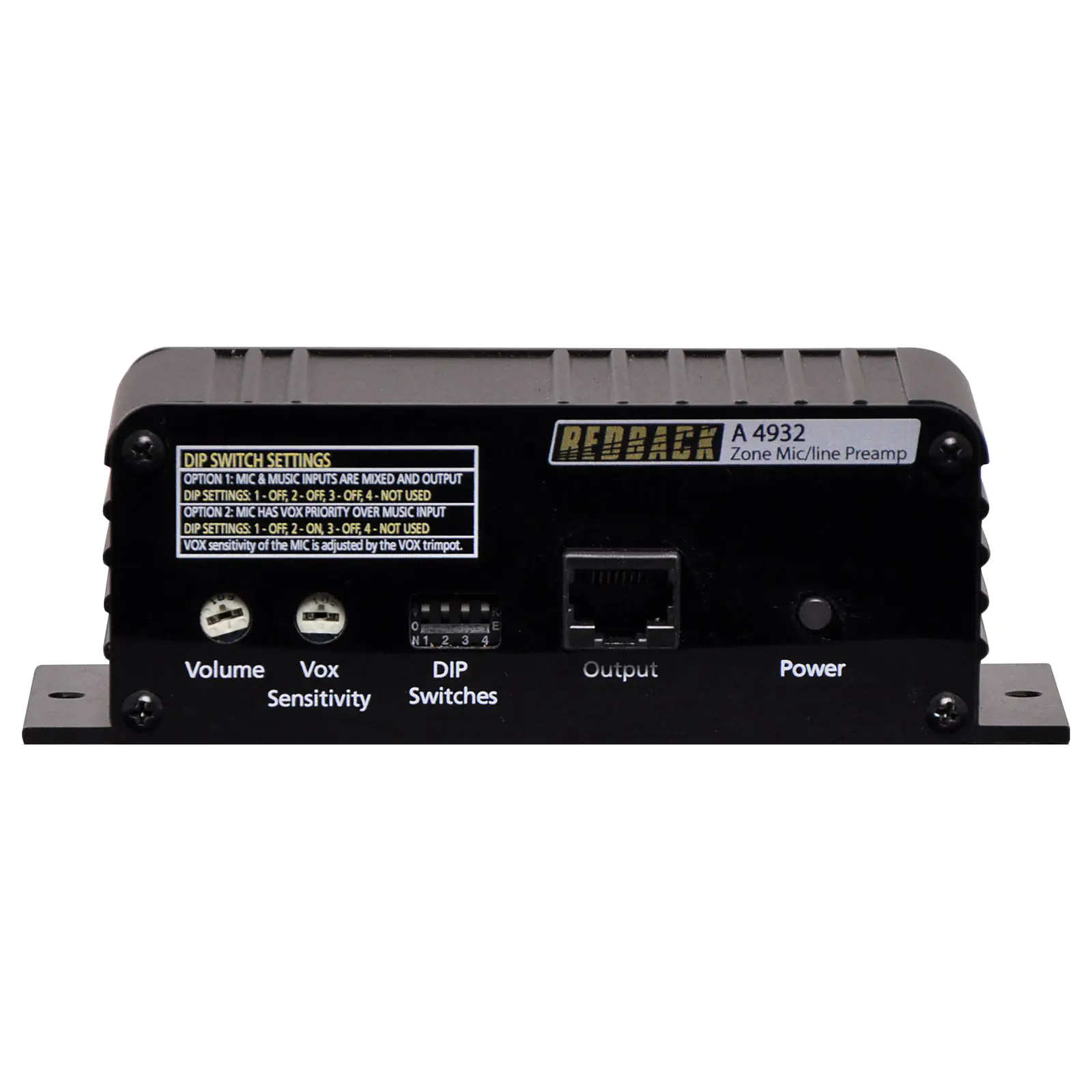

Balanced Microphone/Line Pre Amplifier

This Balanced Microphone/Line Pre Amplifier accepts either a microphone or line input for conversion to a balanced high level signal. Mic input is via a balanced XLR whilst the line input is via 2 x RCA sockets or 3.5mm jack. The 3V output signal is carried via Cat5e cable (suitable for distribution up to 300m without interference) to the A 4928 line output box (or other Redback UTP compatible product) which provides a balanced high or low level output and an unbalanced Aux output signal to be fed into an amplifier. Power is provided through the Cat5e cable connection. A 24V DC switched output (limited to 120mA current draw) is available to activate when the VOX output of the pre-amplifier is active.

Use with Redback A4432
When used with A4432 it provides a means of overriding the input to a zone with a local input source located in that zone. An example may be a mobile phone for background music or a microphone for speeches at a wedding function. Both the wall plate and box have connections for a 3 pin XLR microphone, dual RCA line level input and a 3.5mm line level input for portable devices.

Part of the Redback UTP Solutions Range.

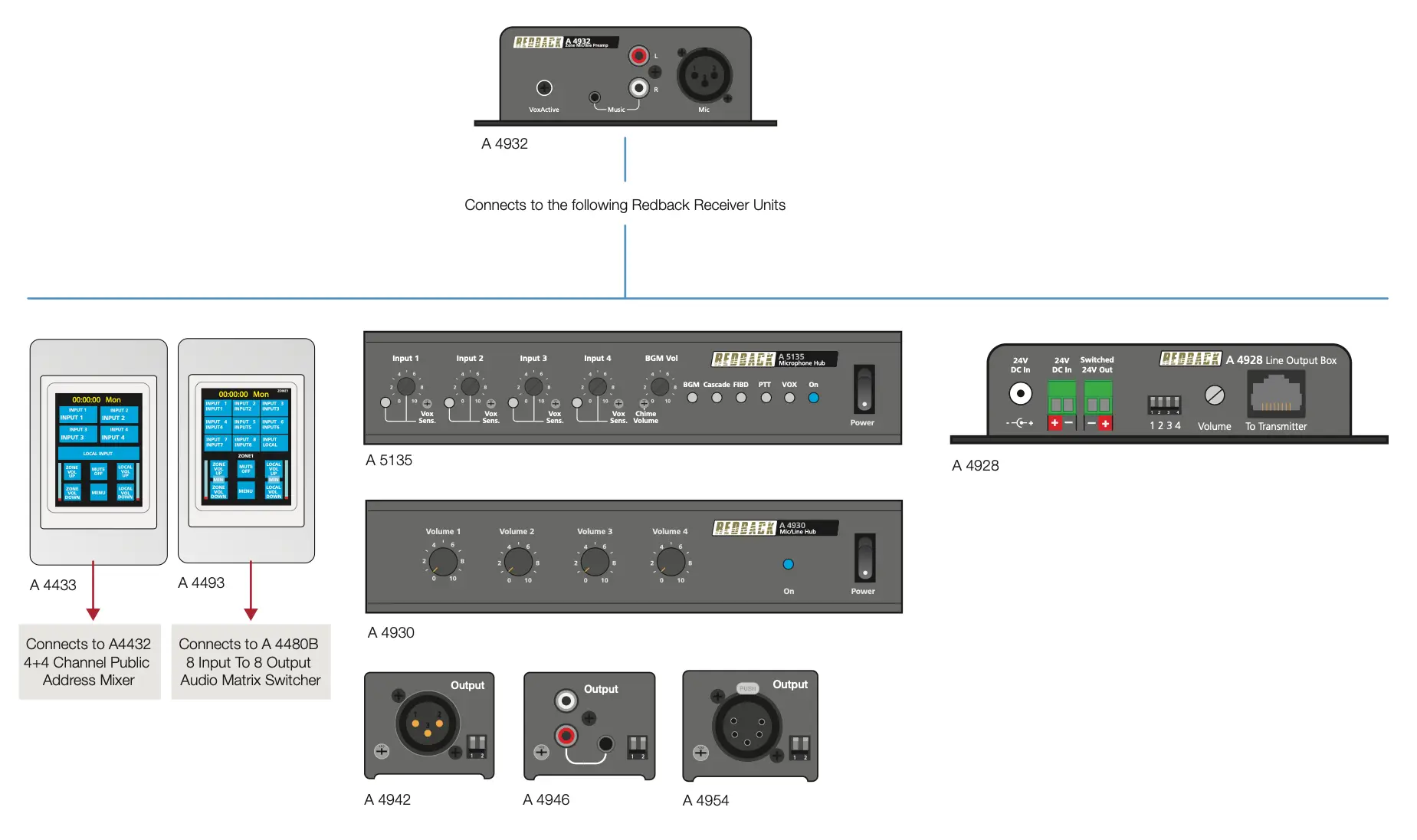

This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.
