This Microphone/Line Pre Amplifier Wallplate accepts either a microphone level, line level, music or bluetooth input and converts the signal to a balanced high level output.

Microphone/Line Pre Amplifier Bluetooth Wallplate

Name: Microphone/Line Pre Amplifier Bluetooth Wallplate
SKU: A4933
Price: 245.45 AUD
Availability: InStock

by: Redback

SKU: A4933

This Microphone/Line Pre Amplifier Wallplate accepts either a microphone level, line level, music or bluetooth input and converts the signal to a balanced high level output.

$245.45

All Prices Shown are (ex GST)

Bulk Pricing

ea	$245.45
2+	$231.82
2+	$218.18

i h

Overview
Details
Warranty
Downloads

Overview

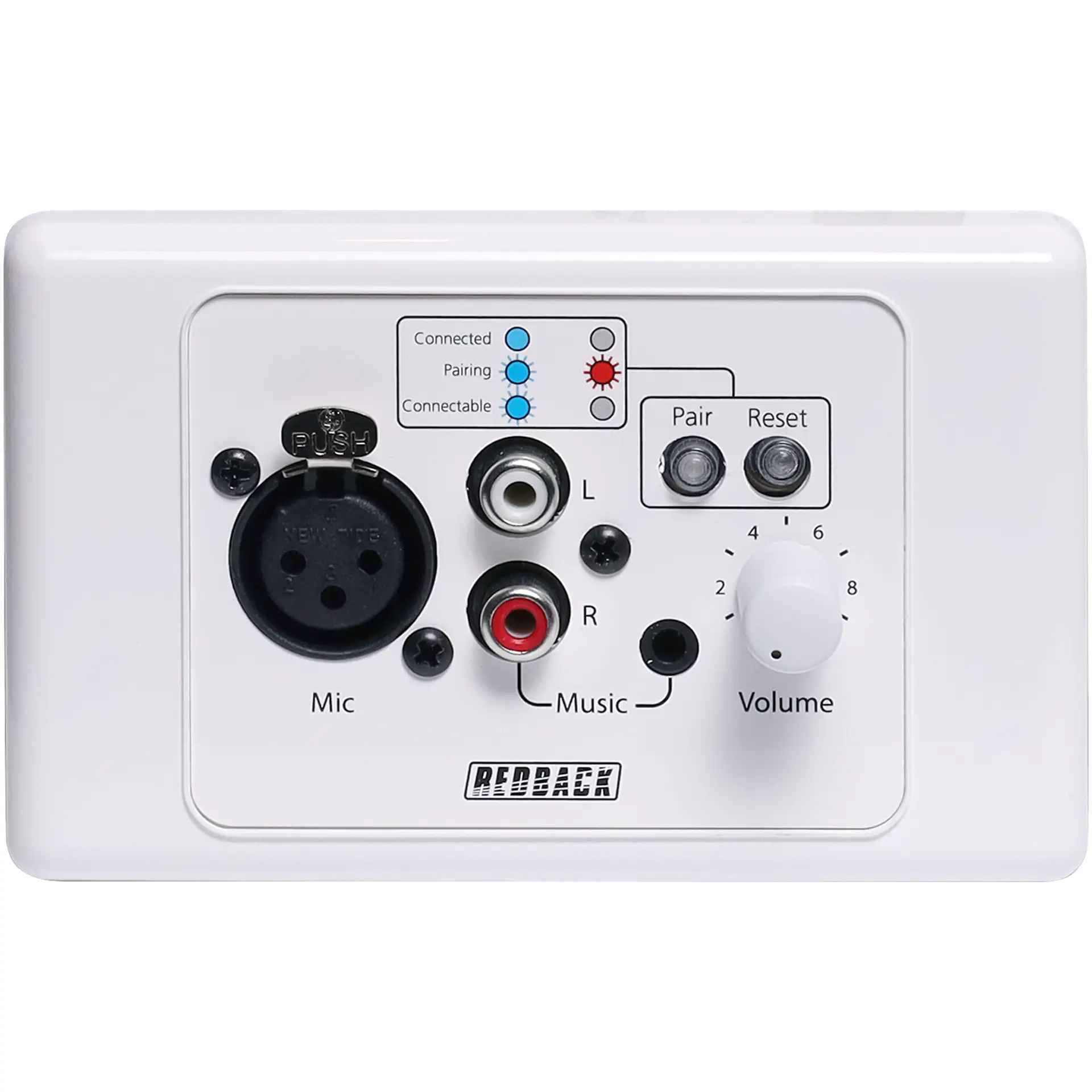

The Redback® A 4933 accepts either a microphone level, line level, music or bluetooth input and converts the signal to a balanced high level output. The high level output signal is carried via Cat5e/6 cable, (suitable for distribution up to 200m without interference) back to Redback® compatible devices such as the Redback® A 4930 Hub, Redback® A 4942, Redback® A 4946 or Redback® A 4495 Source selector wall plate.

Microphone inputs are balanced XLR inputs, while the Line input is via 2 x RCA sockets, or 3.5mm audio jack for portable devices. A bluetooth receiver offers the ability to interface Bluetooth audio devices.

VOX muting is available which mutes the AUX, Music and Bluetooth inputs when any microphone input is active. The VOX sensitivity is adjustable via the front of the wallplate.

All wall plates assembled by Altronics are supplied with two facia clip on covers. These are designed to match your current decor. Simply clip on the desired cover after installation.

Specifications:

Frequency Response:

Mic input: 140Hz - 20kHz

Aux input: 20Hz - 20kHz

Music input: 20Hz - 20kHz

Input Sensitivity:

Mic input: 1mV -13mV balanced

Aux input: 40mV - 800mV balanced

Music input: 40mV - 800mV balanced

Connectors:

Mic Input: 3 pin XLR

Aux Input: 2 x RCA

Music Input: 3.5mm Stereo Socket

General:

Output: RJ45 8P8C

Data transmission: Cat5e/6 cabling (max 200 metres)

Bluetooth Version: 5.1

Bluetooth Range: 30m average (clear line of sight)

Weight: ≈0.11kg

Power: Powered over Cat5e/6 cable

Details

Products specifications

Warranty	10 Years
Professional Audio
Type	Pre-Amplifiers, Level Converters
