Australian Made

Paging Microphone Chime Module

by: Redback
SKU: A4950
By adding this module inline with a paging microphone pre and post announcement chimes can be added to the audio signal.
$172.73

All Prices Shown are (ex GST)
Bulk Pricing
ea $172.73
2+ $159.09
4+ $150.00
i h

Overview

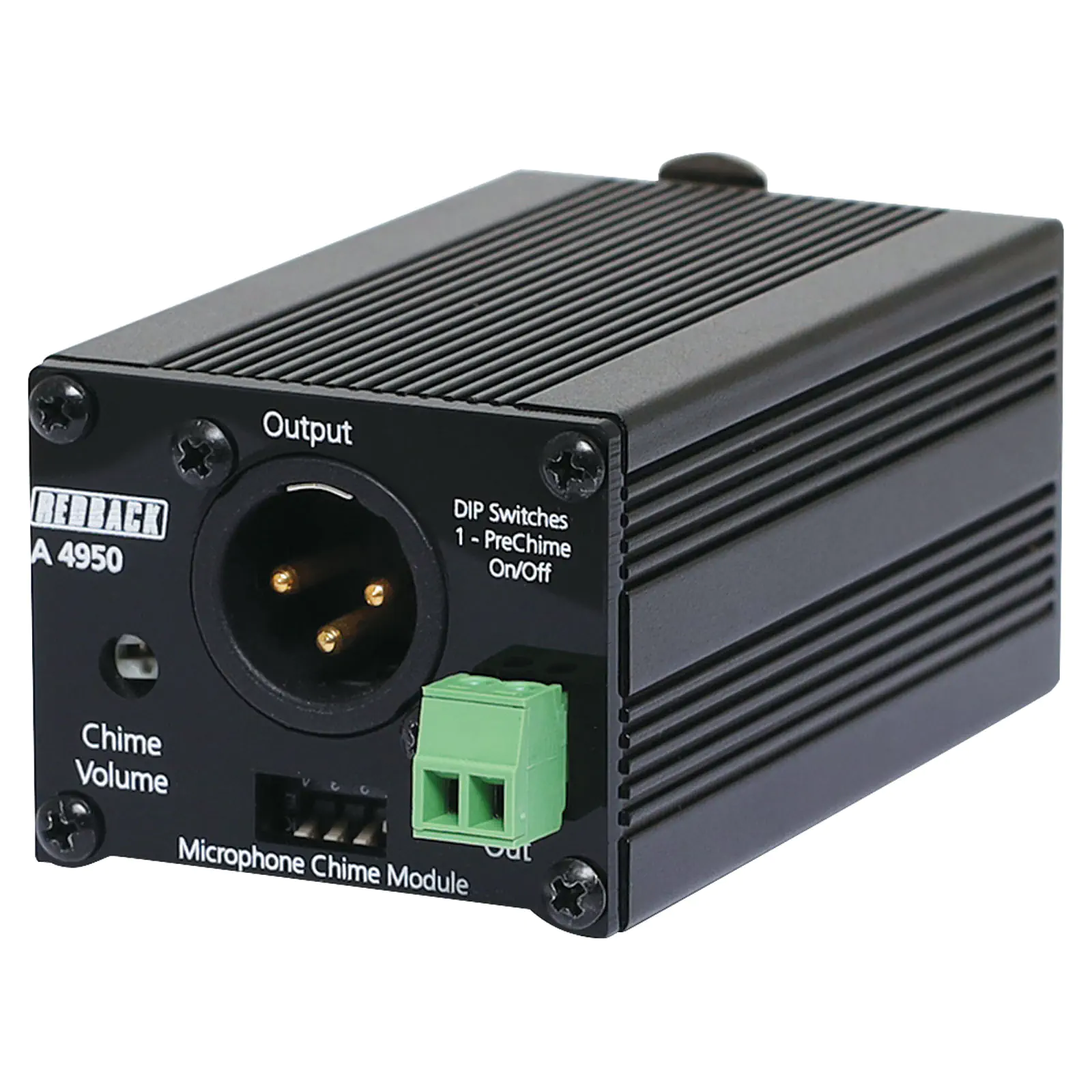

By adding this module inline with a paging microphone pre and post announcement chimes can be added to the audio signal. Typically used in airports, train stations and shopping centres, paging chimes can be vital in gaining the attention of patrons. To be compatible the paging microphone must have a 5 pin XLR connector with PTT function. When the microphone is used the PTT contacts trigger the internal chime.
The PTT contacts are carried through to the output via 2 way screw terminal. At the completion of the announcement when the PTT is released the module will play the post announcement chime (selectable on/off). Audio output is via 3 pin XLR. A screwdriver volume adjustment is provided for adjusting overall paging level output. 24V DC power supply included.





10 year warranty

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

australian made

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Details

Products specifications

Warranty 10 Years

Warranty

WARRANTY

We offer 10 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
.pdf
Brochure
PDF
