NEW

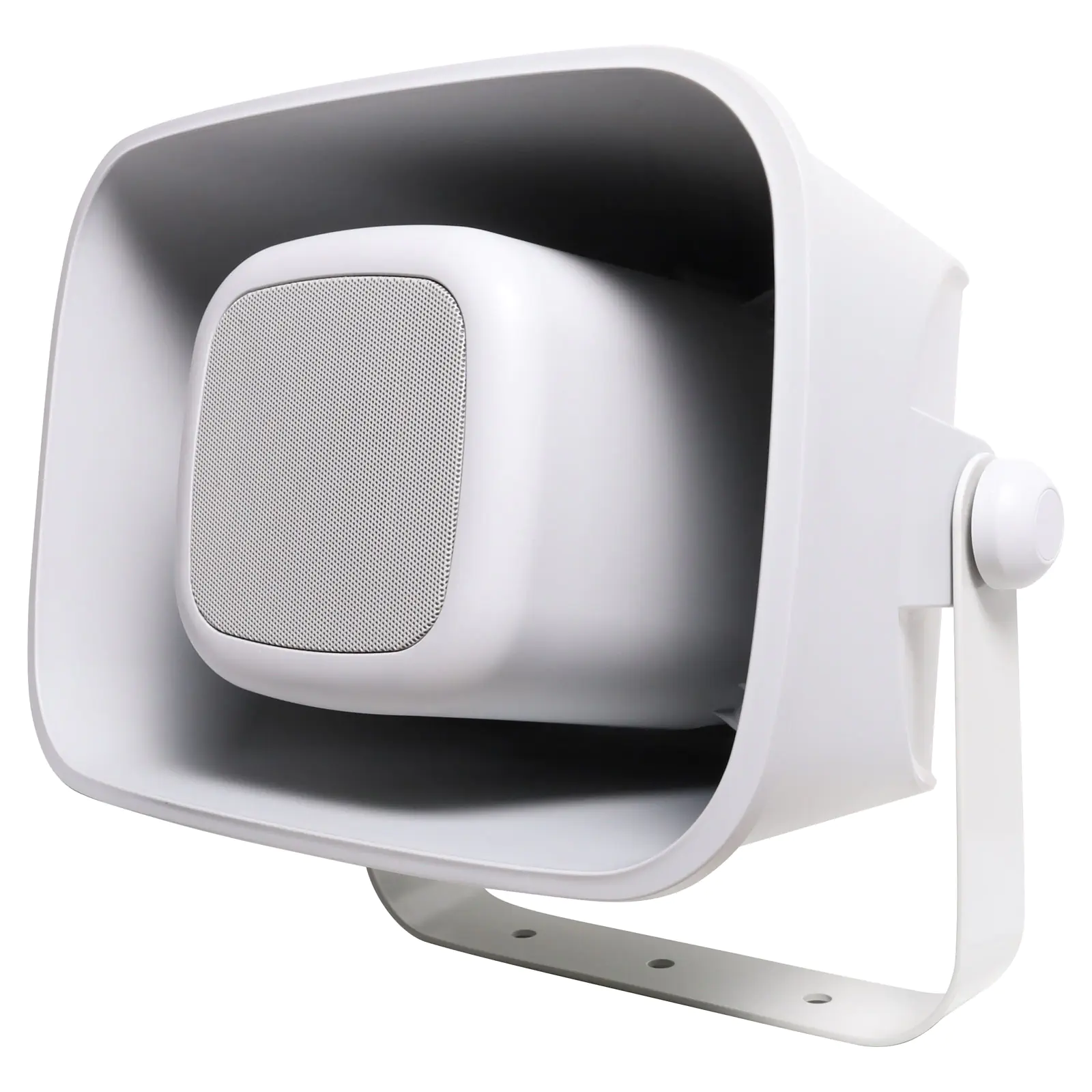

60W 100V IP66 Weatherproof Music Horn Speaker

SKU: C2077A
A high performance weatherproof music horn engineered for durability, reliability, and exceptional audio clarity. Designed with a robust and solid structure, this speaker is built to withstand challenging environments while delivering a long service life.
$362.73

All Prices Shown are (ex GST)
Bulk Pricing
ea $362.73
2+ $335.45
i h

Overview

A high performance weatherproof music horn engineered for durability, reliability, and exceptional audio clarity. Designed with a robust and solid structure, this speaker is built to withstand challenging environments while delivering a long service life. It is eminently suited to outdoor applications where a high standard of speech and music reproduction is demanded eg: schools, gymnasiums, aquatic centres, sporting arenas, stadiums etc. The housing is IP66 weatherproof rated.



Features:

  • IP66 weatherproof rated for outdoor use.
  • Aluminium mesh grille for rust free performance.
  • Rotary switch power tap selector.
  • Suitable for use with 100V line amplifiers.
  • High clarity for speech and music reproduction.
  • 5 year Redback speaker performance warranty.





Specifications:

Input Power: 15W, 30W, 60W (100V)

Rated Impedance: 666Ω (15W), 333Ω (30W), 166Ω (60W)

Sound Pressure Level: 97dB ± 3dB (1M/1W)

Frequency Response: 150Hz - 20kHz

Speaker Unit: 6.5” Woofer x 1, 1” Tweeter x 1

Mounting Hole size: 3 x 10mmØ. Distance between holes = 80mm

Speaker Installation Method: Bracket Installation

Connection Mode: Four core sheathed wire

Material: Front and rear shell: PP + calcium (AP gray RAL7035), Bracket: Aluminium

Support: Aluminium AP gray RAL7035)

Working Temperature: -25°C to 55°C

StorageTemperature: -40°C to 70°C

Relative Humidity: =95%

Dimensions: 365 x 272 x 328mm

Weight: 6.25kg





10 year warranty

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Details

Products specifications

Warranty 5 Years
Speakers
Type 100V Line Horn Speaker

Warranty

WARRANTY

We offer 5 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Datasheet
PDF
