NEW

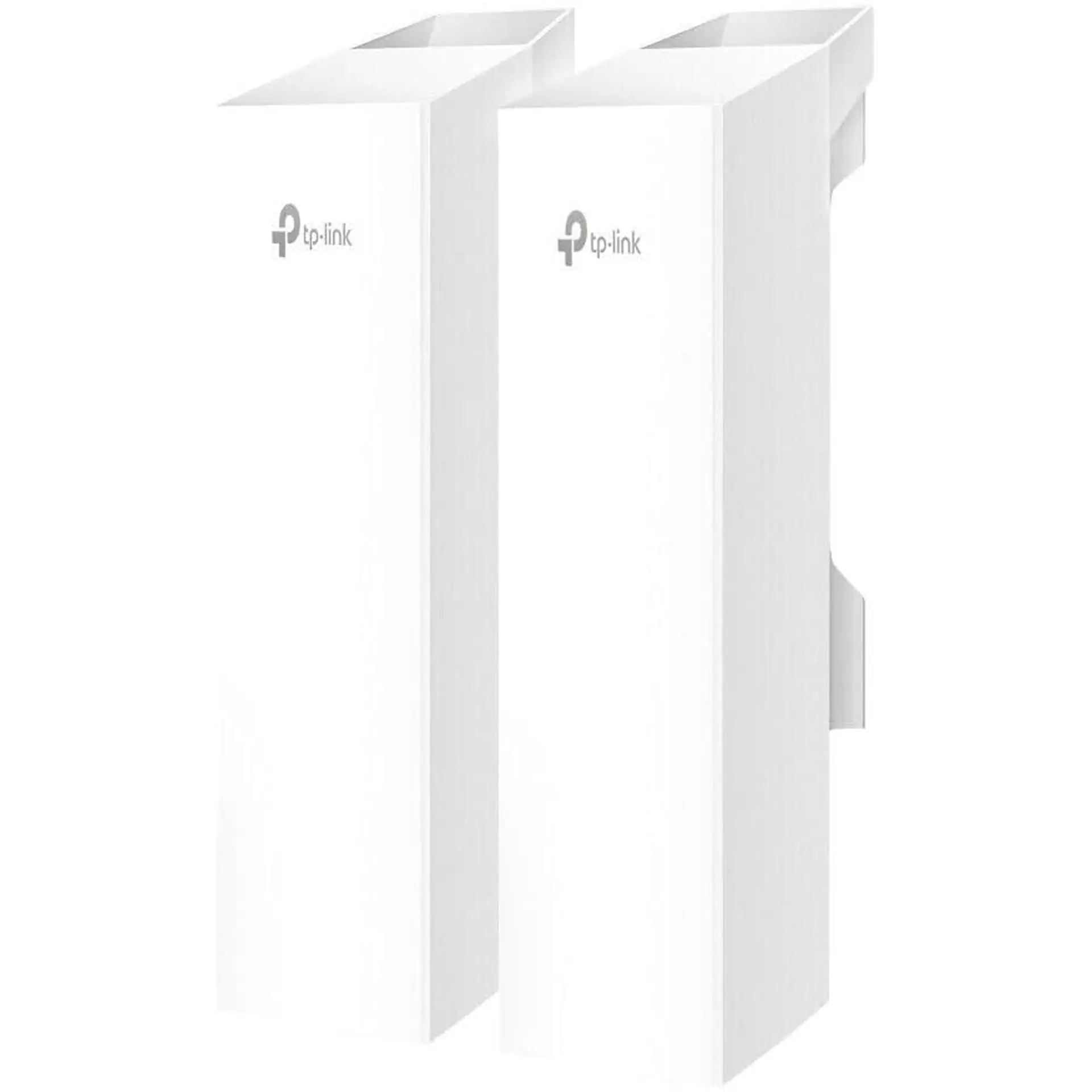

EAP211 Omada 5GHz 867Mbps Wireless Bridge Kit

by: TP-Link
SKU: S9749B
TP-Link Omada EAP211-Bridge KIT is a high-performance 5GHz wireless bridge designed for indoor and outdoor use.
$324.50

All Prices Shown are (ex GST)
Bulk Pricing
ea $324.50
i h

Overview

TP-Link Omada EAP211-Bridge KIT is a high-performance 5GHz wireless bridge designed for indoor and outdoor use. It delivers speeds up to 867 Mbps and supports long-range transmission up to 1 km, making it ideal for connecting distant buildings or extending networks across large areas. The kit features auto-pairing for easy setup, three Gigabit Ethernet ports for high-speed wired connections, and a 7 dBi 2×2 MIMO directional antenna for focused signal strength. Its IP65-rated weatherproof enclosure and 6kV lightning protection ensure durability in various environments. The device supports passive PoE, 802.3af PoE, and 12V DC power options, offering flexible deployment. Additionally, it integrates with Omada SDN for centralized network management.


Features

  • 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
  • Ideal for long-range wireless transmission up to 1 km.
  • Auto-pairing and agile LEDs for efficient deployment.
  • 3× Gigabit Ethernet ports for more high-speed IP camera connections.
  • Supports Omada SDN for remote and centralized management.
  • IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
  • Supports Passive PoE for flexible deployment (adapter included).




Specifications

Hardware Features

Interface: 3x Gigabit Ethernet Ports*6

Button:Reset

Power Supply: 12V DC / 24V Passive PoE (Passive PoE adapter included.)

Max. Power Consumption: 11.5W

Dimensions ( W x D x H ): 224 × 79 × 60mm

Antenna: Internal 2×2 Dual-polarized directional MIMO antennas, 5 GHz: 7.0 dBi, Horizontal:70°, Vertical: 70°

Weatherproof Enclosure: IP65

Mounting: Pole Mounting (Accessories included)



Wireless Features

Coverage: 1000m(3280ft)5

Wireless Standards: IEEE 802.11 a/b/g/n/ac

Frequency: 5 GHz

Signal Rate: 5 GHz, Up to 867 Mbps

Wireless Functions

- Mesh*4

- MU-MIMO: 5G 2x2 MU-MIMO DL

- Load Balance

- Beamforming

- Airtime Fairness

- Multiple SSIDs:8

- Wireless Statistics

- Wireless Schedule

- Reboot Schedule

- RADIUS Accounting

- MAC Authentication

- Static IP/Dynamic IP



Wireless Security

- VLAN

- Access Control

- Rogue AP Detection

- Captive Portal Authentication*4

- Maximum number of MAC Filter: 4,000

- WPA-Personal/Enterprise, WPA2-Personal/Enterprise



Transmission Power

- CE: <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band3, EIRP);

- FCC: <22dBm (5 GHz band1/4)



Management Features

Omada App: Yes

Restore & Backup: Yes

Firmware update via Web: Yes

NTP: Yes

Centralized Management

- Omada Hardware Controller (OC300)

- Omada Hardware Controller (OC200)

- Omada Software Controller

- Omada Cloud-Based Controller

Cloud Access: Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1, v2c, v3

SSH: Yes

Web-based Management: Yes



Others

Certification: CE, FCC, RoHS

Package Content

- EAP211-Bridge KIT

- Passive PoE Adapter

- Power Cord

- Installation Guide

- Mounting Kit

Environment

- Operating Temperature: -40 °C–70 °C

- Storage Temperature: -40 °C–70 °C

- Operating Humidity: 10%–90% non-condensing

- Storage Humidity: 5%–90% non-condensing

Details

Products specifications

Warranty 3 Years
Tech & Data
Type Wireless Access Points

Warranty

WARRANTY

We offer 3 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
